Output Modules

Multi Function A/D, D/A I/O Module (Gray Cover)

●  Multifunction (6 AI, 2 AO, 3 DI and 3 DO)
●  Supports Fast Mode and Normal Mode
●  Individual Channel Configuration
●  Open Wire Detection for Current Output
●  Overload and Short Circuit Protection for Digital Output
●  Configurable Power-on Value Settings
●  Configurable Safe Value Settings
●  240 Vrms Overvoltage Protection for Voltage Input
●  Jumper Selectable Voltage or Current Input/Output
●  Dual Watchdog
●  ±4 kV Contact ESD Protection
●  Wide Operating Temperature Range: -25 ~ +75°C

8-channel Isolated Source Type Voltage or Current Output module

● 8-channel Voltage or Current Output
● Jumper Selectable Voltage or Current Output
● Individual Channel Configuration
● 2500 VDC Intra-module Isolation



6-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input and 2-channel Digital Output Module

● Multifunction (6AI, 2AO, 2DI and 2DO)
● Supports Fast Mode and Normal Mode
● Individual Channel Configuration
● Open Wire Detection for Current Output
● Overload and Short Circuit Protection for Digital Output
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● 240 Vrms Overvoltage Protection for Voltage Input
● 70 VDC Over Voltage Protection for Digital Input
● Jumper Selectable Voltage or Current Input/Output
● Dual Watchdog
● ±4 kV Contact ESD Protection
● Operating Temperature Range: -25 °C ~ +75 °C

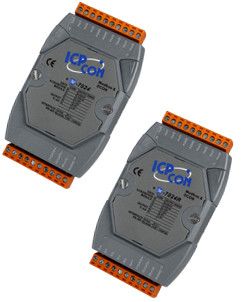

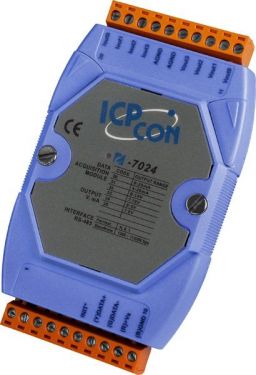

4-channel Analog Output Module

● 4-channel Analog Output
● 5-channel Digital Input for I-7024R/M-7024R
● Software Selectable Current or Voltage Output
● 14-bit Resolution
● Power-on Value Setting
● Safe Value Setting
● 3000 VDC Intra-Module Isolation
● Programmable Output Slope
● Dual Watchdog
● Wide Operating Temperature Range: -25 ~ +75°C

CANopen module of 4-channel 14-bit analog output module

● NMT Slave
● Read-Back Accuracy ±1% of FSR
● Provide default EDS file
● ESD Protection 4 kV Contact for each channel
● Support Power Supply +10 VDC ~ +30 VDC
● Support CiA DS-301 v4.02, DSP-401 v2.1
● Support PDO Mapping

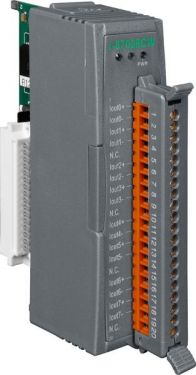

8-channel 12-bit channel to channel isolated current output module with open-wire detection

4-channel 14-bit analog output module

● 4-channel Analog Output
● 4 kV ESD Protection
● 3 V/m Radiated Protection
● Dual Watchdog
● Power On Value Setting
● Safe Value Setting
● 3000 VDC Intra-Module Isolation, Field to Logic
●Operating Temperature Range: -25 °C ~ 75 °C

4-channel 14-bit analog output module

● 4-channel Analog Output
● D-Sub 37 Connector
● 4 kV ESD Protection
● Dual Watchdog
● Power On Value Setting
● Safe Value Setting
● 3000 VDC Intra-Module Isolation, Field to Logic
● Operating Temperature Range: -25 °C ~ 75 °C

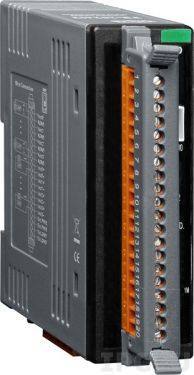

4-channel Isolated Analog Output Module

● Built-in wire-saving FRnet control
● High-speed transmission reliability
● Simple synchronization mechanism
● No software overhead on protocol processing
● Supporting broadcasting (1:n data transmission)
● Duplicating output easily
● Fixed I/O scan-time and I/O synchronization
● DIN-Rail mountable

8-channel 14-bit analog output module

4-channel 14-bit analog output module

4-channel 12-bit channel to channel isolated current output module with open-wire detection

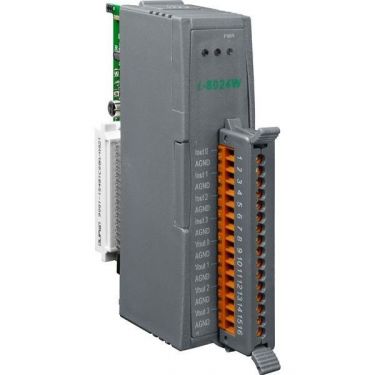

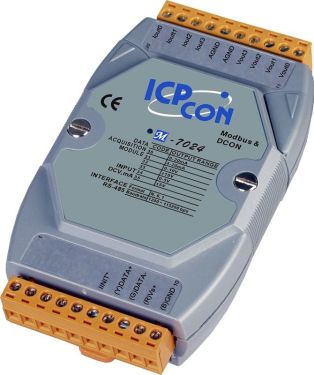

4-channel 14-bit Analog Output Module (Gray Cover)

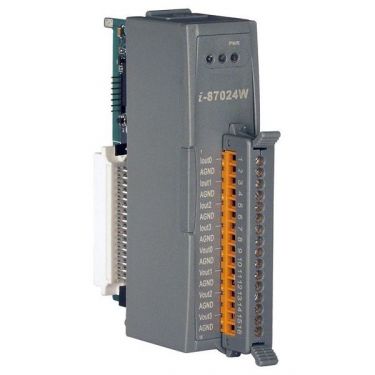

4-channel 14-bit Analog Output Module (Gray Cover)

● Resolution: 14-bit
● Current output: 0 ~20 mA, 4 ~20 mA
● Voltage output: ±10 V, 0 ~ 10 V, ±5 V, 0 ~ 5 V
● Programmable output slew rate:
0.0625 ~ 1024 V/sec.
0.125 ~ 2048 mA/sec.

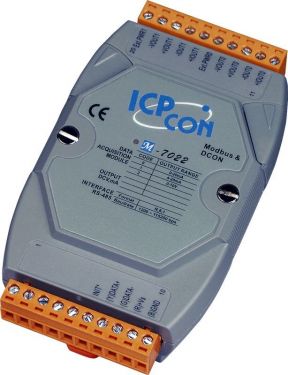

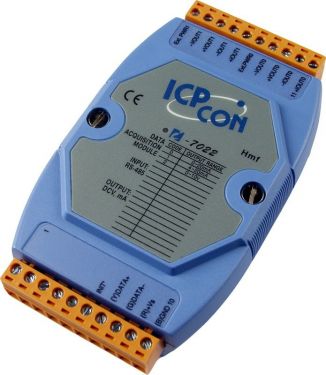

2-channel 12-bit Analog Output Module (channel to channel isolation) (Gray Cover)

● Resolution: 12-bit
● Analog output channel: 2
● Current output: 0 ~ 20 mA, 4 ~ 20 mA
● Voltage output: 0 ~ 10 V
● Channel to channel isolated
● Programmable output slew rate
0.0625 ~ 512 V/sec.
0.125 ~ 1024 mA/sec.

● Resolution: 12 bit
● Analog output channel: 2
● Current output: 0 ~ 20 mA, 4 ~ 20 mA
● Voltage output: 0 ~10V
● Channel to channel isolated
● Dual Watchdog

4-channel 14-bit Analog Output Module

● Resolution: 14 bit
● Current output: 0 ~ 20 mA, 4 ~20 mA
● Voltage output: ±10 V, 0 ~10 V, ±5 V, 0 ~ 5 V
● Programmable output slew rate: 0.0625 to 1024 V/sec.
   0.125 to 2048 mA/sec.
● Dual Watchdog

1-channel 16-bit Analog Output Module

● Resolution: 16-bit
● Current Output: 0 ~ 20 mA, 4 ~ 20 mA
● Voltage Output: 0 ~10 V
● Dual Watchdog

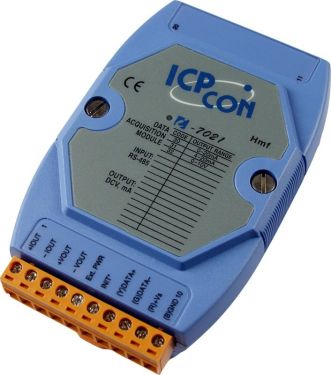

1-channel 12-bit Analog Output Module

● Resolution: 12-bit
● Analog output type: mA,
● Output Range: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 10 V
● Accuracy: ±0.1%
● Programmable Output Slew Rate: 0.0625 ~ 512 V/sec. 0.125 ~ 1024 mA/sec.
● Dual Watchdog
