Voltage & Current

2-channel Isolated Analog Input Module with High Voltage Protection(RoHS)

● 2-channel Single-ended Inputs
● Voltage Inputs and Current Inputs
● 120V DC Overvoltage Protection
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT Protecton
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Wide Operating Temperature Range: -25 ~ +75°C

4-channel Analog Input, 2-channel Digital Input and 2-channel Digital Output Module

● Multifunction (4 AI, 2 DI and 2 DO)
● 2 Voltage Input Channels and 2 Current Input Channels
● Digital Input Channels can be used as 16-bit Counters
● Digital Output Channels can be used as Voltage Input Limit Alarms
● 4 kV ESD and EFT Protection
● 120 VDC Overvoltage Protection
● Adjustable Sampling Rate
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● Wide Operating Temperature Range: -25 ~ +75°C

1-channel Analog Output, 1-channel Digital Input and 1-channel Relay Output Module

● 1 Analog Output Channel
● 1 Digital Input Channel
● 1 Relay Output Channel
● Dual Watchdog
● Configurable Power-on Value Settings
● Configurable Safe Value Settings
● 4 kV ESD Protection
● 3 kV Intra-module Isolation
● Wide Operating Temperature Range: -25 ~ +75°C
● RoHS Compliant

8-channel AI and 4-channels Relay Output Module

● Voltage and Current Inputs
● ±240 Vrms Overvoltage Protection
● High Resolution: 16-bit
● 2500 VDC Intra-Module Isolation
● Sink and Source Type Digital Inputs
● Photocouple Isolation
● Support Relay Outputs
● DIN-Rail Mountable
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C

4-channel AI, 5-channel DI and 4-channel Relay Output Module

● Voltage and Current Inputs
● ±240 Vrms Overvoltage Protection
● High Resolution: 16-bit
● 2500 VDC Intra-Module Isolation
● Sink and Source Type Digital Inputs
● Photocouple Isolation
● Support Relay Outputs
● DIN-Rail Mountable
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C

8-channel Thermocouple Input Module with High Overvoltage Protection

● 8-channel Analog Input
● Individual Channel Configuration
● Open Thermocouple Detection
● Temperature Output Consistency
● Stable Temperature Output in the Field
● 240 Vrms Overvoltage Protection
● Jumper Selectable Voltage or Current Input
● 4 kV ESD Protection
● Dual Watchdog
● 3000 VDC Intra-Module Isolation, Field-to-Logic
● Wide Operating Temperature Range: -25 °C ~ +75 °C

10/20-channel Analog Input Module with High Voltage Protection

● 10-channel Differential or 20-channel Single-ended Inputs
● Voltage and Current Inputs
● 240 Vrms Overvoltage Protection
● High Resolution: 16 bits
● Adjustable Sampling Rate
● 4 kV ESD Protection
● 3000 VDC Intra-module Isolation
● Dual Watchdog
● Operating Temperature Range: -25 °C ~ +75 °C

8-channel Isolated Current Module

● 8-channel Single-ended Inputs
● Current Inputs
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT Protecton
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

8-channel Isolated Analog Input Module with High Voltage Protection

● 8-channel Single-ended Inputs
● Voltage Inputs
● 120 VDC Overvoltage Protection
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT protection
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

5-channel Isolated Current Input Module

● 5-channel Differential Inputs
● Current Inputs
● 120 VDC Overvoltage Protection
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT Protecton
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

5-channel Isolated Analog Input Module with High Voltage Protection

● 5-channel Differential Inputs
● Voltage Inputs
● 120 VDC Overvoltage Protection
● Resolution: 14/12 bits
● Adjustable Sampling Rate
● 4 kV ESD and EFT Protecton
● 3 kV Surge Protection
● Dual Watchdog
● 2500 VDC Intra-module Isolation
● Cost-effective
● Wide Operating Temperature Range: -25 °C ~ +75 °C

8/16-channel Isolated Analog Input Module With High Voltage Protection And Isolated Communication Line

● Built-in wire-saving FRnet control
● High-speed transmission reliability
● Simple synchronization mechanism
● No software overhead on protocol processing
● Supporting broadcasting (1:n data transmission)
● Duplicating output easily
● Fixed I/O scan-time and I/O synchronization
● DIN-Rail mountable

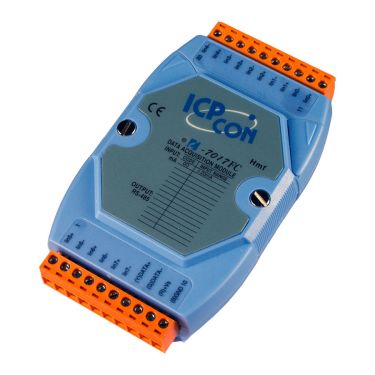

8-channel Analog Input Module Current input version (fast sampling version)

● Supports Fast and Normal Mode
● Current Input Only
● Built-in Resistor to simplify Current measurement
● Open Wire Detection for 4 ~ 20 mA input
● 3000 VDC Intra-module Isolation
● 4 kV ESD Protection
● RoHS Compliance
● Wide Operating Temperature Range: -25 ~ +75°C

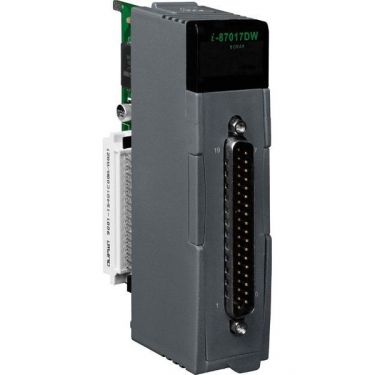

8-channel Differential/16-channel Single-Ended Analog Input Module with High Voltage Protection

● 8-channel Differential/16-channel Single-ended Analog Input
● D-Sub 37 Connector
● 4 kV ESD Protection
● Dual Watchdog
● 3000 VDC Intra-Module Isolation, Field to Logic
● Operating Temperature: -25 °C ~ +75 °C

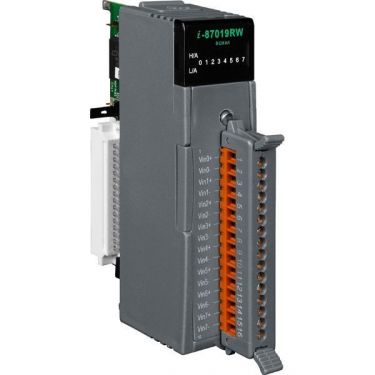

8-channel Universal Analog Input Module with High Voltage Protection

8-channel Current Input Module

● Support Current Input
● With a built-in resistor
● Changeable Sampling Rate
● Open Wire Detection
● 4 kV ESD Protection
● 3000 VDC Intra-module Isolation
● Operating Temperature Range: -25 °C ~ +75 °C

8-channel Analog Input Modulewith High Overvoltage Protection

8-channel High Voltage Input Module

8-channel Analog Input Module
