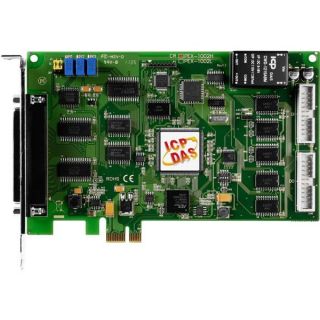

ICPDAS PEX-1002
Levertijd:
2~7 dagen
SKU
PEX-1002
PCI Express, 32-ch, 12-bit, 110 kS/s or 44 kS/s Multi-function board
● 12-bit resolution, 100 kS/s high-speed AD converter.
● 32 single-ended/ 16 differential inputs.
● The max. sampling rate is low-gain 110 kS/s or high-gain 44 kS/s.
● PEX-1002L: programmable low gain: 1, 2, 4, 8.
● PEX-1002H: programmable high gain: 1, 10, 100, 1000.
● 16 digital input/16 digital output channels.
● Internal/external trigger.
● Half size board.
● Digital input port can be set to pull-high or pull-low.
● Supports PCI Express x1
● Universal PCI card, supports the +5 V and +3.3 V PCI Bus.
The PCI-1002LU/HU and PEX-1002LH cards are the new generation product that ICP DAS provides to meet RoHS compliance requirement and is designed as completely compatible with the PCI-1002L/H. Users can replace the PCI-1002L/H by the PCI-1002LU/HU and PEX-1002L/H directly without software/driver modification.
The PCI-1002LU/HU supports 3.3 V/5 V PCI bus, while the PEX-1002L/H supports PCI Express bus. These cards are a family of A/D board and features low-gain 110 kS/s or high-gain 44 kS/s analog input. It provides 12-bit 32 single-ended or 16 differential analog inputs, 16 digital input and 16 digital output channels.
The PEX-1002L/H also adds a Card ID switch on-board. Users can set Card ID on a board and recognize the board by the ID via software when using two or more PEX-1002L/H cards in one computer. The PCI-1002LU/HU and PEX-1002L/H provide The pull-high/ pull-low resisters allow the DI status to be specified when the DI channels are unconnected; the DI status will remain in high or low status other than floating.
These cards support various OS such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 7/Vista/XP. DLL and Active X control together with various language sample program based on Turbo C++, Borland c++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Meer informatie
Art.nr.
PEX-1002
Fabrikant
ICPDAS
Programmable Digital I/O
| Channels | 32 single-ended/16 differential |
Digital Input
| Digital Input Channels | 16 | ||
| Compatibility | 5 V/TTL | ||
| Input Voltage |
|
||
| Response Speed | 500 kHz |
Digital Output
| Digital Output Channels | 16 | ||
| Compatibility | 5 V/TTL | ||
| Output Voltage |
|
||
| Output Capability |
|
||
| Response Speed | 500 KHz |
Algemeen
| Bus Type | PCI Express x1 | ||
| Data Bus | 16-bit | ||
| Card ID | Yes (4-bit) | ||
| I/O Connector |
|
||
| Dimensions (l x w x d) | 167 mm x 110 mm x 22 mm |
||
| Power Consumption | 800 mA @ +5 V |
||
| Operating Temperature | 0 °C ~ +60 °C | ||
| Storage Temperature | -20 °C ~ +70 °C | ||
| Humidity | 5 ~ 85% RH, non-condensing |
