ICPDAS PEX-DA16/DA8/DA4

Levertijd:
3~4 weken
SKU
PEX-DA

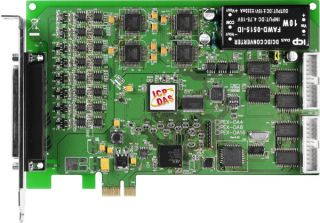

PCI Express/Universal PCI, 14-bit, 4-/8-/16-channel Analog Output Boards

● Supports +5 V PCI bus for PIO-DA4/DA8/DA16
● 16/8/4 channels, 14-bit analog output
● Voltage output range: ±10 V
● Current output range: 0 ~ 20 mA (sink)
● Two pacer timer interrupt source
● Double-buffered D/A latch
● Software calibration
● 16-channel DI, 16-channel DO
● One D-Sub connector, two 20-pin flat cable connectors
● Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR



The PEX-DA, PISO-DAxU and PIO-DAxU series cards (PCI Express/Universal PCI versions) are compatible with the PIO-DAx cards (PCI versions) and most users can replace the PIO-DAx by PEX-DA, PISO-DAxU or PIO-DAxU directly without software/driver modification. Please refer to user manual (ch 1.1) for the compatibility information.

The PISO-DA series adds high-voltage isolation design that offers a durable ability to keep users' computers safe from unexpected surge. It is the built-in high-quality isolation components that make PISO-DA series featuring 2500 VDC bus-typed isolation! For the PEX-DA, PIO-DA and the PISO-DA series, their voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. In addition, These cards also feature the following advantages by ICP DAS's innovation:

  1. Accurate and easy-to-use calibration.
    ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore. The calibration information can be saved in EEPROM for long-term use.
  2. Individual channel configuration.
    In other words, every channel can be individually configured as voltage output or current output!
  3. Card ID.
    ICP DAS provides the card ID function for PEX-DA, PISO-DAxU and PIO-DAxU (version 1.1 or above) series. Users can set card ID for each card and then recognize them one by one when more than two boards are used in a computer.

These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

Meer informatie
Art.nr.
PEX-DA
Fabrikant
ICPDAS
Analog Output
Model Name PEX-DA4/DA8/DA16
Analog Outputs
Isolation Voltage N/A
Compatibility 4/8/16 independent
Resolution 14-bit
Accuracy 0.04% of FSR ± 2 LSB @ 25 °C, ± 10 V
Output Range Voltage: +/- 10 V
Current: 0 ~ 20 mA
Output Driving +/- 5 mA
Slew Rate 0.71 V/μs
Output Impedance 0.1 Ω max.
Operating Mode Software
Digital Input
Model Name PEX-DA4/DA8/DA16
Digital Inputs
Channels 16
Compatibility 5 V/TTL
Input Voltage Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Response Speed 200 kHz
Digital Output
Model Name PEX-DA4/DA8/DA16
Digital Outputs
Channels 16
Compatibility 5 V/CMOS
Output Voltage Logic 0: 0.1 V max.
Logic 1: 4.4 V min.
Output Capability Sink: 6 mA @ 0.33 V
Source: 6 mA @ 4.77 V
Response Speed 200 kHz
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
Timer/Counter
Channels: 3
Resolution: 16-bit
Compatibility: 5 V/TTL
Reference Clock: Internal: 4 MHz
Algemeen
Model Name PEX-DA4/DA8/DA16
General
Bus Type PCI Express x 1
Data Bus 8-bit
Card ID Yes(4-bit)
I/O Connector Female DB37 x 1
20-pin Box header x 2
Dimensions (L x W) 188 mm x 97 mm
Power Consumption 600 mA@ +5 V (PEX-DA4)
800 mA@ +5 V (PEX-DA8)
1400 mA @ +5 V (PEX-DA16)
Operating Temperature 0 ~ 60 °C
Storage Temperature -20 ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
