PCI Express I/O Boards
ICP DAS promises to satisfy you by over 132 kinds of board in one stop shopping. These boards not only cover from ISA to PCI bus that you would have often seen on your PC but even support PCI Express.
From hundreds of board, taking PCI bus boards for example; they are sorted into three series: PCI, PISO, and PIO series. PCI series are top-of-the-line ones that reach awesome performance with multiple functions and high resolutions; PISO series are putting emphasis on its protection ability to prevent signal input from direct impact; PIO series are cost-effective ways for general use, and moreover, they are well-suited for high-speed transmission applications.
All the I/O boards are widely applied in various fields of automation systems. In brief, digital I/O boards are for monitoring and controlling logic signals such as button, switch, relay, on/off, high/low and open/close conditions, analog I/O boards are for analog signals acquisition or transmitting application, and the timer, counter and frequency boards are for pulse signals measurements.
Memory boards are so unique that you can find them only in ICP DAS. With two Lithium-polymer batteries, data can be preserved for 10 years. Gambling machines in the casino are the main application of our memory boards.
Besides, with aid of daughter boards, each board we have mentioned above is highly expandable.
We are good at I/O measurement. Just pick one, and let our board take care of the rest! The following are the product lists. Hurry to start your tour right away!

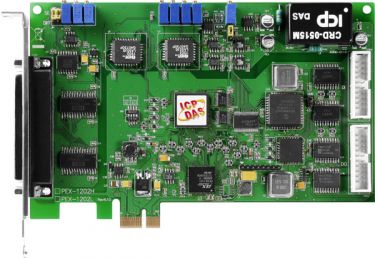

- ICPDAS PEX-1202L/PEX-1202H
PEX-1202L/H: PCI Express, 32-ch, 12-bit, 110 kS/s or 44 kS/s Multi-function DAQ Board (1 K word FIFO)
● Supports the +5 V PCI Bus for PCI-1202L/H
● Supports the +3.3/+5 V PCI bus for PCI-1202LU/HU
● Supports PCI Express x 1 for PEX-1202L/H
● 12-bit 110 kHz A/D converter
● 32 single-ended/ 16 differential inputs, 1 K word FIFO buffer
● The total sampling rate is 110 K samples/s for low gain model and 44 K samples/s for high gain model.
● Three external triggers: post-trigger, pre-trigger, middle-trigger
● 16 digital input and 16 digital output channels.
● PCI-1202LU/PEX-1202L provides programmable low gain: 0.5, 1, 2, 4, 8.
● PCI-1202HU/PEX-1202H provides programmable high gain: 0.5, 1, 5, 10, 50, 100, 500, 1000.
● Digital input port can be set to pull-high or pull-low for PCI-1202LU/HU and
● PEX-1202L/H only.
● Internal / external trigger.
● Two 12-bit independent programmable DACs with 2 MHz throughput per channel (max.)

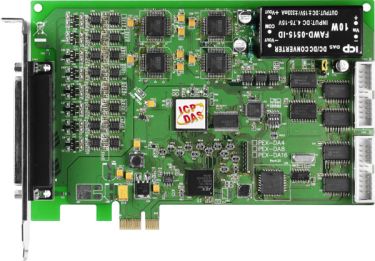

- ICPDAS PEX-DA16/DA8/DA4
PCI Express/Universal PCI, 14-bit, 4-/8-/16-channel Analog Output Boards
● Supports +5 V PCI bus for PIO-DA4/DA8/DA16
● 16/8/4 channels, 14-bit analog output
● Voltage output range: ±10 V
● Current output range: 0 ~ 20 mA (sink)
● Two pacer timer interrupt source
● Double-buffered D/A latch
● Software calibration
● 16-channel DI, 16-channel DO
● One D-Sub connector, two 20-pin flat cable connectors
● Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR

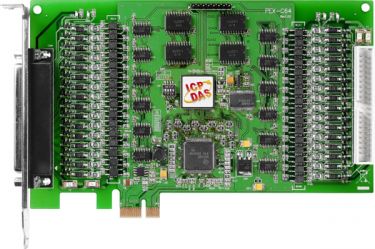

- PCI Express, 64-channel Optically Isolated Open-collector Digital Output Board - ICPDAS
PCI Express, 64-channel Optically Isolated Open-collector Digital Output Board (Current Sinking) (RoHS) Includes one CA-4037B cable and two CA-4002 D-Sub connectors.
● Support the +5 V PCI bus for PISO-C64
● Support the +3.3 V/+ 5 V PCI bus for PISO-C64U
● Support PCI Express x1 for PEX-C64
● Card ID function for PISO-P64U and PEX-P64
● Output status Readback for PISO-P64U and PEX-P64
● 64 optically isolated DO (open collector) channels
● Four isolated banks when using four isolated external power supplies
● 3750 Vrms photo-isolation protection
● Supports Plug & Play to obtain I/O resurces
● No more manually settings of I/O address and IRQ

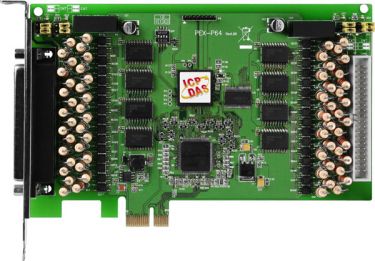

- ICPDAS PEX-P64/PEX-P64-24V
PCI Express/ Universal PCI, 64-channel Optically Isolated Digital Input Board
● Support the +5 V PCI bus for PISO-P64
● Support the +3.3 V/+ 5 V PCI bus for PISO-P64U (-24V)
● Support PCI Express x1 for PEX-P64 (-24V)
● Card ID function for PISO-P64U(-24V) and PEX-P64 (-24V)
● 64-channel optically isolated digital input
● Built-in DC/DC converter providing 3000 VDC isolation
● Four isolated banks when using four isolated external power supplies
● 3750 Vrms photo-isolation protection
● Selectable internal or external power for DI

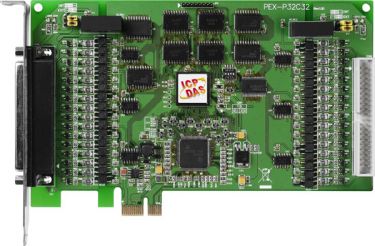

- ICPDAS PEX-P32C32/PEX-P32A32
32–channel Optically Isolated Digital Input and 32-channel Optically Isolated Digital Open-collector Output Board
● Support the +5 V PCI bus for PISO-P32C32
● Support the +3.3/+5 V PCI bus for PISO-P32C32U
● Support PCI Express x1 for PEX-P32C32
● 32-channel optically isolated digital input
● 32-channel optically isolated digital output
● Built-in DC/DC converter with 3000 VDC isolation
● Card ID function for PISO-P32C32U(Version 1.1 or above)/PEX-P32C32
● 3750 Vrms photo-isolation protection
● Output status readback for PISO-P32C32U (Version 4.0 or above)/PEX-P32C32

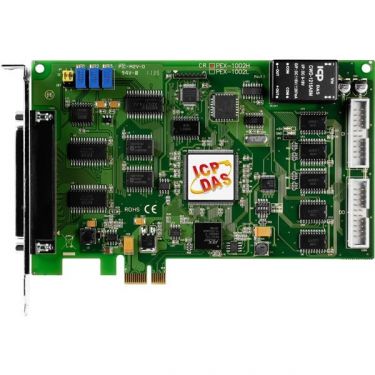

- ICPDAS PEX-1002
PCI Express, 32-ch, 12-bit, 110 kS/s or 44 kS/s Multi-function board
● 12-bit resolution, 100 kS/s high-speed AD converter.
● 32 single-ended/ 16 differential inputs.
● The max. sampling rate is low-gain 110 kS/s or high-gain 44 kS/s.
● PEX-1002L: programmable low gain: 1, 2, 4, 8.
● PEX-1002H: programmable high gain: 1, 10, 100, 1000.
● 16 digital input/16 digital output channels.
● Internal/external trigger.
● Half size board.
● Digital input port can be set to pull-high or pull-low.
● Supports PCI Express x1

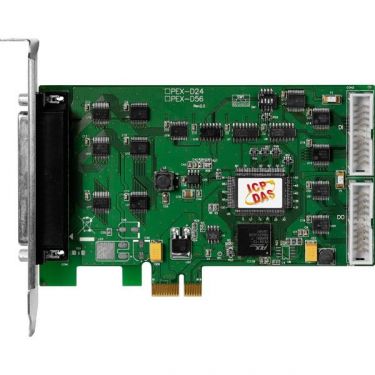

● Universal PCI card, supports the +5 V and +3.3 V PCI Bus. - ICPDAS PEX-D56
PCI Express, 56-channel DIO board
● Support the +5 V PCI bus for PIO-D24
● Supports PCI Express x1
● Up to 24 channels of digital I/O
● Bi-direction programmable I/O ports under software control
● All I/O lines buffered on the board
● 8-bit groups independently selectable for I/O on 24-bit port
● Double side SMD, short card
● Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 compatible daughter boards
● 4 interrupt sources: PC0, PC1, PC2, PC3
● No base address or IRQ switches to setSOFTWARE:
● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows

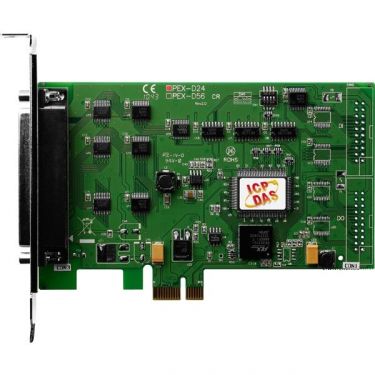

● Driver for Linux and DasyLab - ICPDAS PEX-D24
PCI Express, 24-channel DIO board
● Support the +5 V PCI bus for PIO-D24
● Supports PCI Express x1
● Up to 24 channels of digital I/O
● Bi-direction programmable I/O ports under software control
● All I/O lines buffered on the board
● 8-bit groups independently selectable for I/O on 24-bit port
● Double side SMD, short card
● Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 compatible daughter boards
● 4 interrupt sources: PC0, PC1, PC2, PC3
● No base address or IRQ switches to setSOFTWARE:
● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows

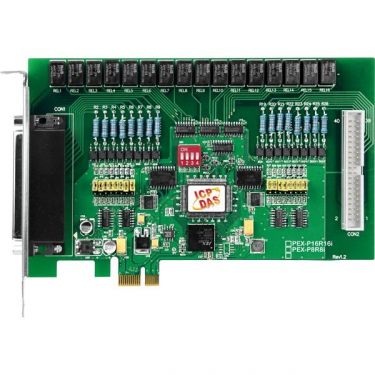

● Driver for Linux and DasyLab - ICPDAS PEX-P16R16i - PCI Express x1, 16-channel Isolated Digital Input, 16-channel Relay Output
PCI Express 16-channel Isolated Digital Input, 16-channel Relay Output
● PCI-Express (3.3 V/12 V)
● Supports CardID (dip-switch)
● 16-channel relay output
● 16-channel optical isolated (3750 Vrms) digital input
● DC signal input with jumper selectable filter
● AC Signal input with filter
SOFTWARE FEATURES:
● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 98/NT/2000
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows

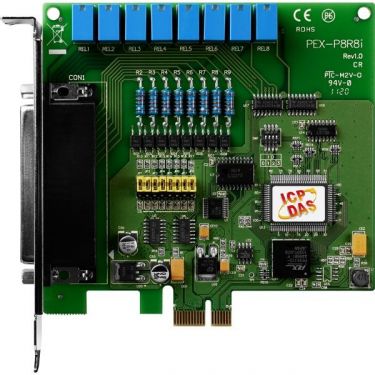

● Driver for Linux - ICPDAS PEX-P8R8i
PCI Express 8-channel Isolated Digital Input, 8-channel Relay Output
● 8-channel relay output
● 8-channel optical isolated (3750 Vrms) digital input
● DC signal input with jumper selectable filter
● AC Signal input with filter
● PCI-Express
● Supports CardID (dip-switch)
SOFTWARE FEATURES:
● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 98/NT/2000
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux - ICPDAS PEX-D48
PCI Express, 48-channel OPTO-22 Compatible DIO Board
● Supports PCI Express x 1 for PEX-D48
● 48 channels of digital I/O
● Bi-direction programmable I/O ports under software control
● All I/O lines buffered on the board
● Six 8-bit bi-direction I/O ports
● SMD, short card
● Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards
● One 32-bit programmable internal timer
● One DB37 connector, one 50-pin box header
● One 16-bit event counter
● Interrupt source: 4-channel
● Card ID function
● Pull-up or pull-down resistors on I/O lines
● Emulate two industrial-standard 8255 PPI ports (mode 0)
● Buffer output for higher driving capability
● DIO response time is about 0.77 μs (1.3 MHz max.)
SOFTWARE FEATURES:
● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2000
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista/7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux and DasyLab - ICPDAS PISO-CAN200E-T
PCI Express CAN Communication Card
● PCI Express Interface
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Universal PCI supports both 5V and 3.3V PCI bus
● Build-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller - ICPDAS PISO-CAN200E-D
PCI Express CAN Communication Card
● PCI Express Interface
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Universal PCI supports both 5V and 3.3V PCI bus
● Build-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller - ICPDAS PEX-CAN200i-T
PCI Express CAN Communication Card
● PCI Express Interface
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Universal PCI supports both 5V and 3.3V PCI bus
● Build-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels

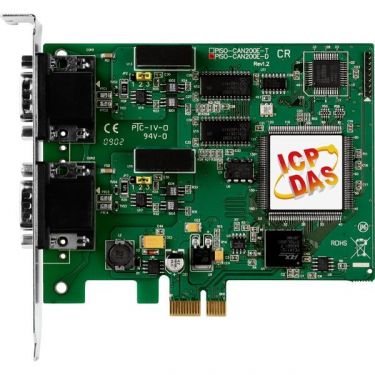

● Direct memory mapping to the CAN controller - ICPDAS PEX-CAN200i-D
PCI Express CAN Communication Card
● PCI Express Interface
● Compatible with CAN 2.0 parts A and B
● Fully compatible with ISO 11898-2 standard
● Support CAN bard from 10K to 1M bps
● 2500Vrms photo couple isolation on the CAN bus
● Universal PCI supports both 5V and 3.3V PCI bus
● Build-in jumper to select 120 ohm terminal resister
● 3KV galvanic isolation
● 2 independent CAN channels
● Direct memory mapping to the CAN controller
