PCI Bus Digital I/O Boards

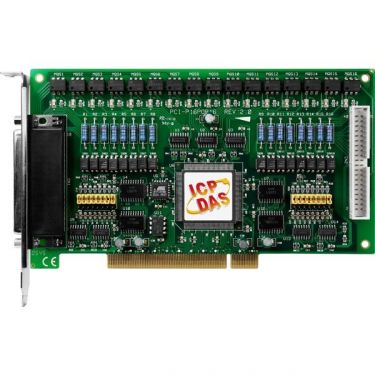

16-channel isolated digital input.16-channel PhotoMos Relay output


● 16 PhotoMos Relay output channels
● 16 Optical isolated digital input channels
● DC signal input with filter or W/O filter
● AC Signal input with filter
● LED power indicator for the card

Universal PCI, 32-channel Isolated Digital I/O and 32-channel TTL-level Digital I/O (Current Sinking, PNP type)

● Universal PCI (3.3 V/5 V) Interface
● 16-channel Optically-isolated Digital Input
● 16-channel Optically-isolated Digital Output (Sink, NPN)
● 16-channel 5 V/TTL Digital Output
● 16-channel 5 V/TTL Digital Input
● Built-in DC/DC Converter with 3000 VDC Isolation
● 3750 Vrms Photo-isolation Protection
● Supports Card ID (SMD Switch)
● Supports DO Status Readback (Register Level)
● 2 Interrupt Sources




Universal PCI, 64-channel Optically Isolated Open-collector Digital Output Board (Current Sinking)

● Support the +5 V PCI bus for PISO-P64
● Support the +3.3 V/+ 5 V PCI bus for PISO-P64U
● Card ID function for PISO-P64U
● 64-channel optically isolated digital input
● Built-in DC/DC converter providing 3000 VDC isolation
● Four isolated banks when using four isolated external power supplies
● 3750 Vrms photo-isolation protection
● Selectable internal or external power for DI

Universal PCI, 64-channel Optically Isolated Open-collector Digital Output Board (Current Sinking)

● Support the +5 V PCI bus for PISO-C64
● 64 optically isolated DO (open collector) channels
● Four isolated banks when using four isolated external power supplies
● 3750 Vrms photo-isolation protection
● Supports Plug & Play to obtain I/O resurces
● No more manually settings of I/O address and IRQ
● Support the +3.3 V/+ 5 V PCI bus
● Card ID function (dip-switch)
● Output status Readback

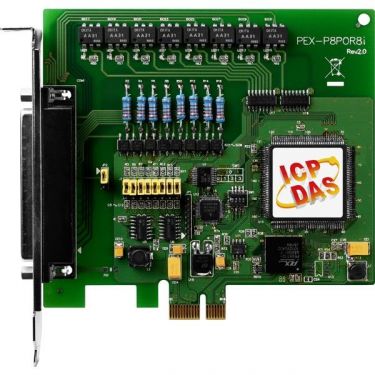

PCI Express, 8-channel isolated digital input, 16-channel PhotoMos relay output

● Selectable DC signal input filter
● AC signal input with filter
● LED power indicator
● Long life and high reliability PhotoMos relay
● Low leakage current when PhotoMos relay is off
● No contact bounce, no sparking
● No acoustical noise
● High speed DIO operation
● Supports Plug & Play to obtain I/O resources
● No more manually setting of I/O address and IRQ
● Supports PCI Express x1
● 8 PhotoMos Relay output channels
● 8 Optical isolated digital input channels
● Supports Card ID (SMD Switch)
● Supports DO status Readback (Register Level)
● 2000 VDC photo-isolation protection

PCI Express, 16-channel isolated digital input, 16-channel PhotoMos relay output

● Selectable DC signal input filter
● AC signal input with filter
● LED power indicator
● Long life and high reliability PhotoMos relay
● Low leakage current when PhotoMos relay is off
● No contact bounce, no sparking
● No acoustical noise
● High speed DIO operation
● Supports Plug & Play to obtain I/O resources
● No more manually setting of I/O address and IRQ
● Supports PCI Express x1
● 16 PhotoMos Relay output channels
● 16 Optical isolated digital input channels
● Supports Card ID (SMD Switch)
● Supports DO status Readback (Register Level)
● 2000 VDC photo-isolation protection

Universal PCI, 32-channel Optical-Isolated Digital Input and 32-channel Optical-Isolated Open Collector Output Board (Source, PNP)

● Support the +3.3/+5 V PCI bus
● 32-channel optically isolated digital input
● 32-channel optically isolated digital output
● Built-in DC/DC converter with 3000 VDC isolation
● Card ID function
● Four isolated banks
● 3750 Vrms photo-isolation protection

Universal PCI, 168–channel Digital I/O Board

● Support the +3.3 V/+5 V PCI bus for PIO-D168U
● Double side SMT, short card, power saving
● Connect directly to DB-24P,DB-24R, DB-24PR, DB-24SSR, DB-24POR and other OPTO-22 compatible daughter board
● 168 I/O Lines
● Emulate 7 Industrial standard 8255 PPI ports (mode 0)
● Programmable interrupt
● Card ID function for PIO-D168U
● Six 50-pin flat cable connectors & one 37-pin
● D-sub connector
● Output status readback
● DIO response time is about 0.77 μs (1.3 MHz max.)

Universal PCI, 32-channel Optical-Isolated DI and 32-channel Optical-Isolated Open Collector DO Board (Sink, NPN, 8-channel for high driving)


● 32-channel optical-isolated digital input
● 32-channel optical-isolated digital output
● Isolation Voltage: 3750 Vrms (Using external power)
● Card ID: Jumper setting for multi-board identification (v1.5 or above)
● Open Collector: 500 mA (8-channel), 100 mA (24-channel), Current Sinking, NPN

Universal PCI, 32-channel Optically Isolated Digital Input (Logic High: 5~12 V) and 32-channel Optically Isolated Digital Open-collector output Board Current Sinking)


● Support the +3.3/+5 V PCI bus
● 32-channel optically isolated digital input
● 32-channel optically isolated digital output
● Built-in DC/DC converter with 3000 VDC isolation
● Card ID function (v1.1 or above)
● 3750 Vrms photo-isolation protection

Universal PCI, 32-channel Optically Isolated Digital Input and 32-channel Optically Isolated Digital Open-collector output Board Current Sinking)


● Support the +3.3/+5 V PCI bus
● 32-channel optically isolated digital input
● 32-channel optically isolated digital output
● Built-in DC/DC converter with 3000 VDC isolation
● Card ID function (v1.1 or above)
● 3750 Vrms photo-isolation protection

32-channel Optically Isolated Digital Input (Logic High: 5~12 V) and 32-channel Optically Isolated Digital Open Collector Output Board (Current Sourcing, PNP type)

● Support the +5 V PCI bus
● 32-channel optically isolated digital input
● 32-channel optically isolated digital output
● Built-in DC/DC converter with 3000 VDC isolation
● Four isolated banks
● 3750 Vrms photo-isolation protection

8-channel Relay Output with isolated digital input Board


● 8 Relay output channels
● 8 Optical isolated digital input channels
● DC signal input with filter or W/O filter
● AC Signal input with filter

Universal PCI, 16-channel Isolated Digital Input, 16-channel Relay Output


● Universal PCI (3.3 V/5 V PCI bus)
● Supports CardID (dip-switch)
● 16-channel relay output
● 16-channel optical isolated (3750 Vrms) digital input
● DC signal input with jumper selectable filter
● AC Signal input with filter

16-channel isolated digital input.16-channel PhotoMos Relay output


● 16 PhotoMos Relay output channels
● 16 Optical isolated digital input channels
● DC signal input with filter or W/O filter
● AC Signal input with filter
● LED power indicator for the card

16-channel isolated digital input.16-channel open-collector output


● 16 Open Collector output channels
● 16 Optical isolated digital input channels
● DC signal input with filter or without
● AC Signal input with filter

16-channel isolated digital input, 16-channel Relay output


● 16 Relay output channels
● 16 Optical isolated digital input channels
● DC signal input with filter or without
● AC Signal input with filter

8-channel isolated digital input, 8-channel Relay output

● 8 Relay output channels
● 8 Optical isolated digital input channels
● DC signal input with filter or without
● AC Signal input with filter

Universal PCI, 48-channel OPTO-22 Compatible DIO Board


● Support the +5V PCI bus
● Support the +3.3/+5 V PCI bus
● 48 channels of digital I/O
● Bi-direction programmable I/O ports under software control
● All I/O lines buffered on the board
● Six 8-bit bi-direction I/O ports
● SMD, short card
● Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards
● One 32-bit programmable internal timer
● One DB37 connector, one 50-pin box header
● One 16-bit event counter
● Interrupt source: 4-channel
● Card ID function
● Pull-up or pull-down resistors on I/O lines
● Emulate two industrial-standard 8255 PPI ports (mode 0)
● Buffer output for higher driving capability
● DIO response time is about 0.77 μs (1.3 MHz max.)

Universal PCI bus, 24-channel DIO board


● Support the +3.3/+5 V PCI bus
● Up to 24 channels of digital I/O
● Bi-direction programmable I/O ports under software control
● All I/O lines buffered on the board
● Eight-bit groups independently selectable for I/O on 24-bit port
● Double side SMD, short card
● Connects directly to DB-24PR, DB-24PD, DB-24RD, DB-24PRD, DB-16P8R, DB-24POR, DB-24SSR, DB-24C or any OPTO-22 Compatible daughter boards
● 4 interrupt sources: PC0, PC1, PC2, PC3
● One DB37 connector, two 20-pin headers
● Automatically detected by windows 95/98/NT
● No base address or IRQ switches to set
● DIO response time is about 0.77 μs (1.3 MHz max.)
