PEX-P16POR16i

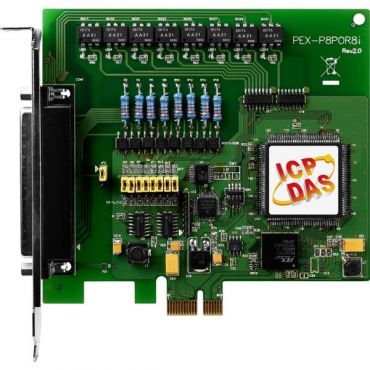

PCI Express, 16-channel isolated digital input, 16-channel PhotoMos relay output

● Selectable DC signal input filter
● AC signal input with filter
● LED power indicator
● Long life and high reliability PhotoMos relay
● Low leakage current when PhotoMos relay is off
● No contact bounce, no sparking
● No acoustical noise
● High speed DIO operation
● Supports Plug & Play to obtain I/O resources
● No more manually setting of I/O address and IRQ
● Supports PCI Express x1
● 16 PhotoMos Relay output channels
● 16 Optical isolated digital input channels
● Supports Card ID (SMD Switch)
● Supports DO status Readback (Register Level)
● 2000 VDC photo-isolation protection

The PEX-P16POR16i is a PCI Express card. Each contain 16 optically isolated input channels and 16 PhotoMos relay output channels. Both the isolated DI channels and the PhotoMos relay channels use a short optical transmission path to transfer an electronic signal between elements of a circuit and keep them electrically isolated.

The P16POR16i provide 2000 VDC for DI channel isolation protection, allowing the input signals to be completely floated so as to cut down ground loops, block voltage spikes, and isolate the host computer from damaging voltages. PhotoMos relays are used where it is necessary to control a circuit using a low-power signal (with complete electrical isolation between the control and controlled circuits), or where several circuits must be controlled by one signal. The PEX-P16POR16i is fully compatible with the PCI-P16POR16, and users can easily replace the PCI-P16POR16 with the PEX-P16POR16i without any need for software/driver modification when using PCI Express computers.

The PEX-P16POR16i also adds a Card ID switch on-board. Users can set Card ID and then recognizes the board by the ID via software when using two or more PEX-P16POR16i/PEX-P8POR8i cards in one computer. The PEX-P16POR16i can be used in various applications, such as controlling the ON/OFF state of external devices, driving external relays or small power switches, activating alarms, contact closure, sensing external voltages or switches, etc.

These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

SOFTWARE:

● DOS Lib and TC/BC/MSC sample program (with source codes)
● DLL and OCX SDK for Windows 95/98/NT/2K
● DLL and OCX SDK for 32-bit Windows XP/2003/Vista and 32-bit Windows 7
● VB/VC/Delphi/BCB/VB.NET/C#.NET sample programs with source codes are included
● LabVIEW toolkit for Windows
● Driver for Linux

Meer informatie
Art.nr.
PEX-P16POR16i
Fabrikant
ICPDAS
Digital Input
Isolation Voltage 2000 VDC (Photo-couple)
Channels 16
Input Voltage
Logic 0: AC/DC 0 ~ 1 V
Logic 1: AC/DC 5 ~ 24 V(AC 50 ~ 1 kHz)
Response Speed
Without Filter: 50 kHz (Typical)
With Filter: 0.455 kHz (Typical)
Relay Output
Channels 16
Relay Type PhotoMos Relay (Form A)
Contact Rating
Load Voltage: 300 V (AC peak or DC)
Load Current: 130 mA
Operate Time 0.7 ms (typical)
Release Time 0.05 ms (typical)
Insulation Resistance 23 Ω
Special
LED Indicators Output status
Algemeen
Bus Type PCI-Express x1
Data Bus 16-bit
Card ID Yes (4-bit)
I/O Connector Female DB37 x1
Dimensions (l x w x d) 183 x 105 x 22mm
Power Consumption 800 mA @ +5 V
Operating Temperature 0 °C ~ 60 °C
Storage Temperature -20 °C ~ 70 °C
Humidity 5 ~ 85% RH, non-condensing
