ICPDAS μPAC-7186EXD-SM

Levertijd:
2~7 dagen
SKU
μPAC-7186EXD-SM

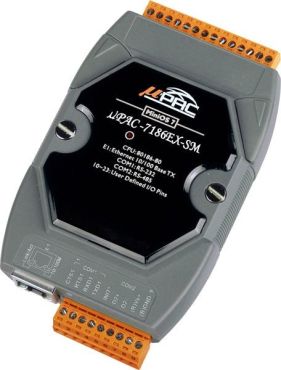

Palm-size μPAC with 7-segment LED Display (80MHz CPU, 10/100 Ethernet, 640K SRAM, 512K Flash, RS-232x1, RS-485x1)

● High reliability in harsh environment
● Embedded MiniOS7, anti-virus
● Built-in watchdog timer (WDT)
● Ethernet Protocols: TCP, UDP, IP, ICMP, ARP
● Faster 10/100M Ethernet port
● Modbus Protocols
● Free easy-to-use software development toolkits for your applications
● Expansion Bus Interface
● Remote/Web Configuration/Maintenance
● Support for Virtual COM technology

μPAC-7186E is our new generation of palm-size PAC. It equips a more power full CPU (upgraded from 40M Hz to 80M Hz) and a faster Ethernet port (upgraded from 10 Base-T to 10/100 Base-TX).

Compared with I-7188E series, μPAC-7186E’s computing speed is up to 4 times faster. And there are more memory configuration choices to select from.





The ICPDAS μPAC-7186EXD-SM is a palm-size programmable automation controller that with Ethernet, RS-232, RS-485 communication. ICPDAS provide easy-to-use software development tool kits (Xserver, VxComm, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect, iFix, etc.). For the hardware, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, ASIC key & other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus but the bus can support only one board. There are more than 50 boards available for ICPDAS μPAC-7186EXD-SM, you can choose one of them to expand hardware features.

Meer informatie
Art.nr.
μPAC-7186EXD-SM
Fabrikant
ICPDAS
Systeem
CPU 80186 or compatible (16-bit and 80 MHz)
SRAM 640 KB
Flash 512 KB; Erase unit is one sector (64K bytes); 100.000 erase/write cycles.
EEPROM
16 KB
Data retention: 40 years; 1.000.000 erase/write cycles.
NVRAM 31 Bytes (battery backup, data valid up to 10 years)
RTC (Real Time Clock) RTC Provide seconds, minutes, hours, date of week/month; month and year, valid from 1980 to 2079
64-bit Hardware Serial Number Yes
Built-in Watchdog Timer Yes (0.8 second)
Communication Ports
COM1 RS-232 (TxD, RxD, CTS, RTS and GND); Non-isolated
COM2 RS-485 (D2+, D2-; self-tuner ASIC inside); Non-isolated
Ethernet Port
10/100Base-TX Ethernet Controller
(Auto-negotiating, Auto_MDIX, LED indicator)
COM Port Formats
Data Bit 7, 8
Parity Even, Odd, None
Stop Bit 1
LED Indicators
5-Digit 7 Segment LED Display Yes
System LED Indicator Yes
Hardware Expansion
I/O Expansion Bus Yes
User Defined I/O Pins 14 pins
Power
Protection Power reverse polarity protection
Frame Ground for ESD Protection Yes
Required Supply Voltage +10 ~ +30 VDC (non-regulated)
Power Consumption 3.0 W
Mechanical
Dimensions (w x h x d) 72 x 123 x 35mm
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +80 °C
Humidity 5 ~ 90% RH, non-condensing
