Unmanaged Industrial PoE Ethernet Switch
.png)
ICPDAS industrial PoE switches are specifically designed to meet IEEE 802.3af standards for powering network devices. With PoE, installation of network devices such as IP surveillance cameras, wireless access points, IP phones, and other PoE enabled devices in hard-to-reach, outdoor, and remote areas is simplified. Managed and unmanaged industrial PoE switches are available. ICPDAS also provides products that support the new industrial PoE plus for higher power demands.

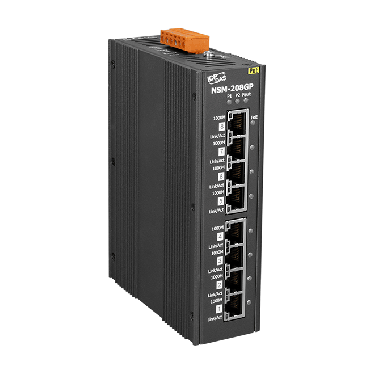

Unmanaged 8-Port GbE PoE(PSE) Switch with +24VDC Input - NSM-208GP●Supports +24~+53VDC redundant power input
●IEEE802.3at PoE, per port supply up to 30W

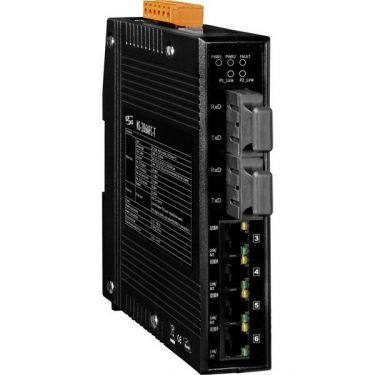

ICPDAS NS-206AF Series - 4-port 10/100 Mbps Ethernet with 2 fiber ports Switch● Provides 2 x 100-FX fiber ports plus 4 x Ethernet ports
● Each port supports both 10/100 Mbps speed auto negotiation
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Redundant dual +12 ~ 48 VDC power inputs
● Supports operating temperatures from -30 ~ +75 °C
● DIN-Rail Mounting
ICPDAS NS-205PSE-IP67- Industrial 5-port unmanaged IP67 Ethernet switch with PoE● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Each port supports both 10/100 Mbps speed auto negotiation
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Rugged RJ45 Connector for anti-vibration and shock
● IP67 grade protection approval
● 4 PoE ports with Power Sourcing Equipment (PSE) operation (NS-205PSE-IP67 series)
● Auto-detection of PD (powered devices) and automatic power management (NS-205PSE-IP67 series)
● Over-temperature, over-current and over/under-voltage detection (NS-205PSE-IP67 series)

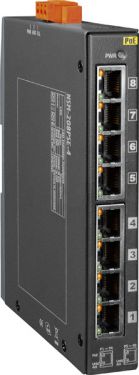

ICPDAS NSM-208PSE-4 - 8-Port Industrial 10/100 Mbps Ethernet with 4-PoE (PSE) Switch Metal Casing8-Port Industrial 10/100 Mbps Ethernet with 4-PoE (PSE) Switch with metal casing
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 4 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail Mountable

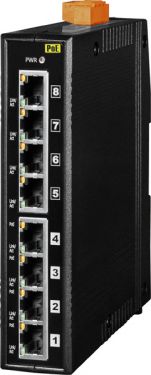

ICPDAS NS-208PSE-4 - 8-Port Industrial 10/100 Mbps Ethernet with 4-PoE (PSE) Switch● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 4 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail

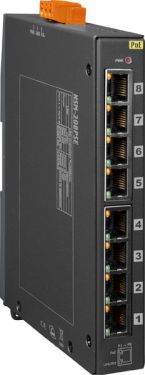

ICPDAS NSM-208PSE - Unmanaged 8-Port Industrial 10/100 Mbps PoE(PSE) Ethernet Switch with Metal Casing● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 8 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail Mountable
● "-R" stands for products with conformal coating protection

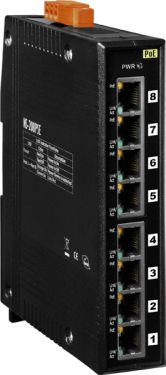

ICPDAS NS-208PSE - Unmanaged 8-Port Industrial 10/100 Mbps PoE(PSE) Ethernet Switch● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 8 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail Mounting
● "-R" stands for products with conformal coating protection

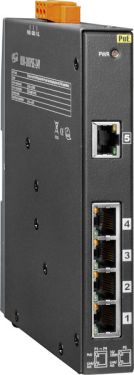

ICPDAS NSM-205PSE-24V - Unmanaged 5-Port 10/100 Mbps PoE(PSE) Ethernet Switch with Metal Casing 24V DC Input● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Power Input +18 VDC ~ +32 VDC
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail Mountable
● IEEE 802.3af Compliant PoE Ports

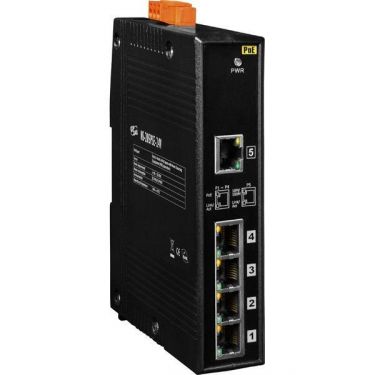

ICPDAS NS-205PSE-24V - 5-Port 10/100 Mbps PoE (PSE) Ethernet Switch with 24 VDC Input● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Power Input +18 VDC ~ +32 VDC
● Supports operating temperatures from -40 °C~ +75 °C
● DIN-Rail
● IEEE 802.3af Compliant PoE Ports
ICPDAS NS-205PSE - Unmanaged PoE Ethernet Switch● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Power Inputs +46 ~ +55 VDC
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail mountable
● IEEE 802.3af Compliant PoE Ports
