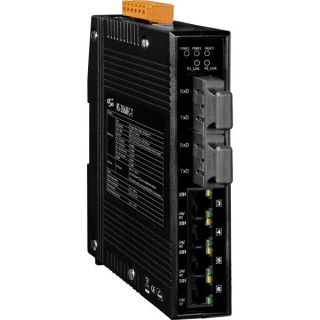

ICPDAS NS-206AF Series - 4-port 10/100 Mbps Ethernet with 2 fiber ports Switch
Levertijd:
2~7 dagen
SKU
NS-206AF
● Provides 2 x 100-FX fiber ports plus 4 x Ethernet ports
● Each port supports both 10/100 Mbps speed auto negotiation
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Redundant dual +12 ~ 48 VDC power inputs
● Supports operating temperatures from -30 ~ +75 °C
● DIN-Rail Mounting
The NS-206AF/NSM-206AF is a 4-port unmanaged Ethernet with 2 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 60 km) transmissions.
The NS-206AF/NSM-206AF provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.
Meer informatie
Art.nr.
NS-206AF
Fabrikant
ICPDAS
Technology
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward; wire speed switching |
| MAC Addresses | 1024 |
| Memory Bandwidth | 2.0Gbps |
| Frame buffer memory | 521Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
Interface
| RJ45 ports | 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| LED Indicators | Power, Link/Act, 10/100M |
| Ethernet Isolation | 1500Vrms 1 minute |
| +/-4 kV ESD Protection |
Yes |
Power Input
| Input Voltage Range | +12 ~ +48 VDC (Redundant input) |
| Power consumption | 0.14A @ 24 VDC |
| Protection | Power reverse polarity protection |
| Connection | 6-Pin Removable Terminal Block |
Mechanical
| Casing | NS-206AF Series: Plastic (Flammability UL 94V-0) NSM-206AF Series: Metal (IP30 Protection) |
| Dimensions (w x l x h) | NS-206AF Series: 31 mm x 157 mm x 113 mm NSM-206AF Series: 25 mm x 168 mm x 119 mm |
| Installation | DIN-Rail |
Environmental
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
