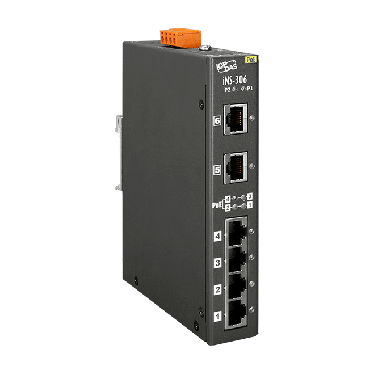

Power over Ethernet Switch

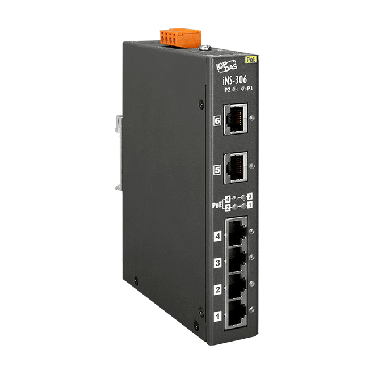

● 4 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
● Up to 30 watts per PoE port at 24 ~ 57 VDC Power Input
● Ethernet Bypass for Port 5 & Port 6
● Power Management and Schedule Control for each PoE port
● RTC (Real Time Clock) with NTP synchronized
● Web GUI configuration and management

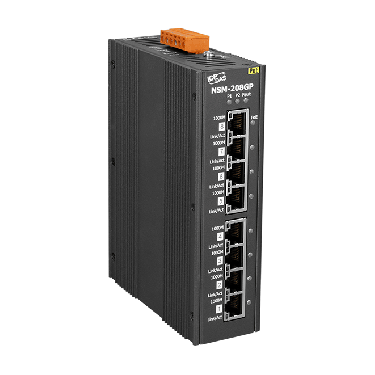

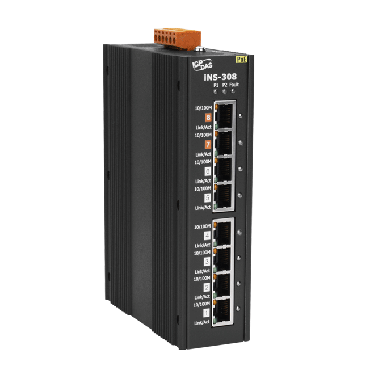

● 8 PoE/PoE+ PSE capable ports, fully compliant to IEEE 802.3af/at
● Up to 30 watts per PoE port at 24 ~ 57 VDC Power Input
● Ethernet Bypass for Port 7 & Port 8
● Power Management and Schedule Control for each PoE port
● Web GUI configuration and management
● SNMP_v2c Supports
● Modbus Function Supports

●Supports +24~+53VDC redundant power input
●IEEE802.3at PoE, per port supply up to 30W

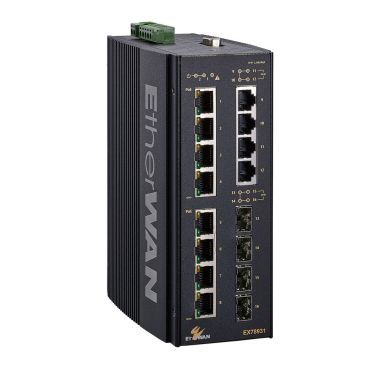

 EX78931-0VB   12-Port 10/100/1000BASE-TX with 8-port PoE + 4-port Gigabit SFP Hardened Managed Ethernet Switch

● Ultra High-Power PoE Switch 60W PoE
● Intelligent Management
● Remote Secure Access

Hardened Managed 6-port 10/100BASE (4 x PoE + 2 x 60W PoE) and 2-port Gigabit Ethernet Switch

● Ultra High-Power PoE Switch 60W PoE
● Intelligent Management
● Remote Secure Access

● Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 4 PoE ports with Power Sourcing Equipment (PSE) operation
● Automatic MDI/MDI-X crossover for plug-and-play
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from -30 ~ +75 °C
● DIN-Rail Mounting

● Provides 2 x 100-FX fiber ports plus 4 x Ethernet ports
● Each port supports both 10/100 Mbps speed auto negotiation
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Redundant dual +12 ~ 48 VDC power inputs
● Supports operating temperatures from -30 ~ +75 °C
● DIN-Rail Mounting



● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Each port supports both 10/100 Mbps speed auto negotiation
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Rugged RJ45 Connector for anti-vibration and shock
● IP67 grade protection approval
● 4 PoE ports with Power Sourcing Equipment (PSE) operation (NS-205PSE-IP67 series)
● Auto-detection of PD (powered devices) and automatic power management (NS-205PSE-IP67 series)
● Over-temperature, over-current and over/under-voltage detection (NS-205PSE-IP67 series)

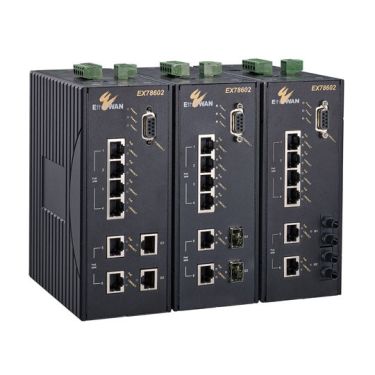

10-port 10/100Base Fast Ethernet Hardened Managed PoE Ethernet Switch with up to 2-port Gigabit

● Complies with IEC61000-6-2 EMC generic standard immunity for industrial environment
● IEEE 802.3af Power over Ethernet (PoE), 8 or 4 ports
● Supports PoE Power Sourcing Equipment (PSE)
● Proprietary "α-ring" support for network redundancy; recovery time <15 ms
● IEEE802.1w RSTP, IEEE802.1S MSTP and IEEE802.1D STP compatible
● P Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN
● Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking with automatic link fail-over
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, web browser, and TFTP Management
● Supports IEEE802.1x Security
● Per-port programmable MAC address locking
● Port mirroring
● 8192 MAC addresses and 2 M bits buffer memory
● Redundant power inputs with terminal block and DC jack
● -40 °C ~ +75 °C operating temperature range

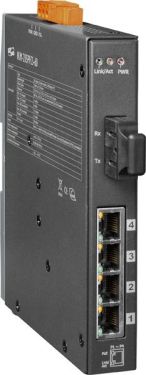

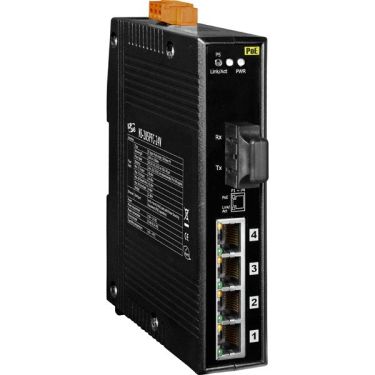

● Provides 1 x 100-FX fiber port plus 4 x PoE ports
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports both 10/100Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 4 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Power Input, +46 ~ +55
● Supports operating temperatures from –30 °C ~ +75 °C

8-Port Industrial 10/100 Mbps Ethernet with 4-PoE (PSE) Switch with metal casing

● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 4 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail Mountable

● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 4 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail

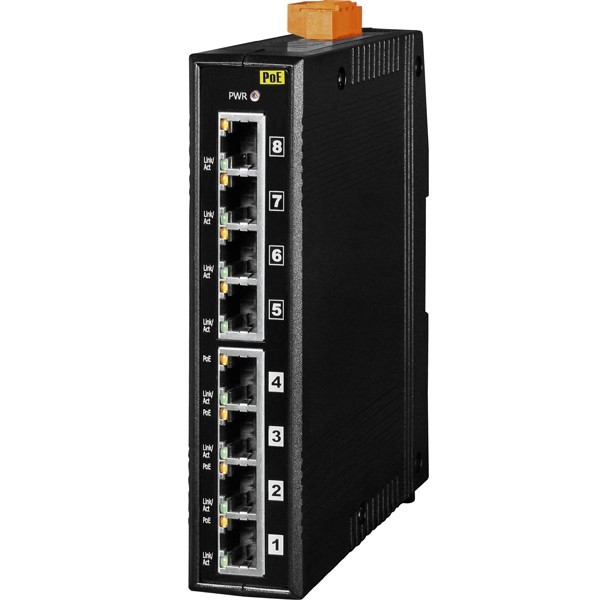

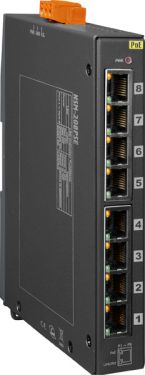

● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 8 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail Mountable
● "-R" stands for products with conformal coating protection

● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 8 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail Mounting
● "-R" stands for products with conformal coating protection

● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Power Input +18 VDC ~ +32 VDC
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail Mountable
● IEEE 802.3af Compliant PoE Ports

● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Power Input +18 VDC ~ +32 VDC
● Supports operating temperatures from -40 °C~ +75 °C
● DIN-Rail
● IEEE 802.3af Compliant PoE Ports

● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Power Inputs +46 ~ +55 VDC
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail mountable
● IEEE 802.3af Compliant PoE Ports
