Unmanaged Industrial PoE Ethernet Switch with Fiber Port
.png)
ICPDAS industrial PoE switches are specifically designed to meet IEEE 802.3af standards for powering network devices. With PoE, installation of network devices such as IP surveillance cameras, wireless access points, IP phones, and other PoE enabled devices in hard-to-reach, outdoor, and remote areas is simplified. Managed and unmanaged industrial PoE switches are available. ICPDAS also provides products that support the new industrial PoE plus for higher power demands.

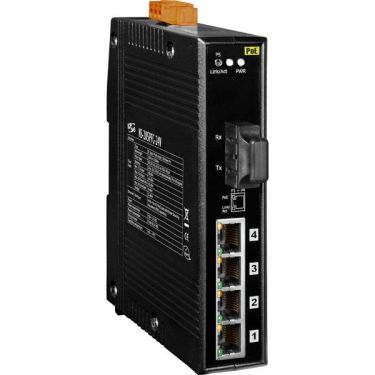

ICPDAS NS-205PF Series - 4-port 10/100 Mbps PoE (PSE) with 1 fiber port● Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 4 PoE ports with Power Sourcing Equipment (PSE) operation
● Automatic MDI/MDI-X crossover for plug-and-play
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from -30 ~ +75 °C
● DIN-Rail Mounting

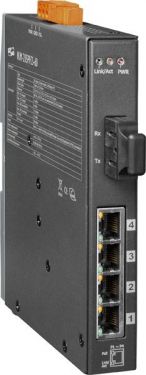

ICPDAS NSM-205PFCS-60 - 4-Port 10/100 Mbps PoE (PSE) with 1 fiber port Switch metal case● Provides 1 x 100-FX fiber port plus 4 x PoE ports
● Automatic MDI/MDI-X crossover for plug-and-play
● Each port supports both 10/100Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 4 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Power Input, +46 ~ +55
● Supports operating temperatures from –30 °C ~ +75 °C
