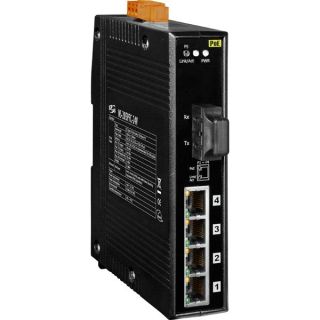

ICPDAS NS-205PF Series - 4-port 10/100 Mbps PoE (PSE) with 1 fiber port
Levertijd:
2~7 dagen
SKU
NS-205PF
● Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 4 PoE ports with Power Sourcing Equipment (PSE) operation
● Automatic MDI/MDI-X crossover for plug-and-play
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from -30 ~ +75 °C
● DIN-Rail Mounting
The NS-205PF / NSM-205PF is a 4-port unmanaged PoE (PSE) with 1 fiber port switch; it supports 4 PoE ports which are classified as power source equipments (PSE). The NS-205PF / NSM-205PF makes centralized power supply come true and provides up to 15.4 watts of power per PSE port. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 60 km) transmissions.
The NS-205PF-24V/NSM-205PF-24V series is designed with 24 VDC to 48 VDC boost for PoE application where 48 VDC power supply is not available.
Meer informatie
Art.nr.
NS-205PF
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Technology
| Standards | IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet) |
| Processing Type | Store & forward, wire speed switching |
| MAC Addresses | 1024 |
| Memory Bandwidth | 3.2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE802.3x flow control, back pressure flow control |
Interface
| Single-Mode: NS-205PFCS NSM-205PFCS NS-205PFCS-24V/FCS-24V NSM-205PFCS-24V/FCS-24V |
Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm Distance: 30 km, (9/125 μm recommended) for full duplex Wavelength: 1300 or 1310nm Min. TX Output: -15 dBm Max. TX Output: -8 dBm Max. RX Sensitivity: -34 dBm Min. RX Overload: -5 dBm Budget: 19 dBm |
|
Single0Mode: |
Single-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm Distance: 60 km, (9/125 μm recommended) for full duplex Wavelength: 1300 or 1310nm Min. TX Output: -5 dBm Max. TX Output: 0 dBm Max. RX Sensitivity: -35 dBm Min. RX Overload: -5 dBm Budget: 30 dBm |
Power Input
| Input Voltage Range | NS-205PF & NSM-205PF: +46 ~ +55 VDC for PoE output NS-205PF-24V & NSM-205PF-24V: +18 ~ +32 VDC |
| Power Consumption | NS-205PF & NSM-205PF: 0.08 A @ 48 VDC without PD loading; 1.5 A @ 48 VDC with PD full loading NS-205PF-24V & NSM-205PF-24V: 0.24 A @ 24 VDC without PD loading; 3.2 A @ 24 VDC with PD full loading; 4.6 A @ 18 VDC with PD full loading |
| Protection | Power reverse polarity protection |
| Frame Ground for EMS Protection | Yes |
| Connection | 3-Pin Removable Terminal Block |
PoE Output
| Compliance | 100% IEEE 802.3af compliant |
| Classification | PSE (Power Sourcing Equipment) |
| Voltage | +48 VDC depending on power input |
| Power | Up to 15.4 watts per channel |
| Operation | Automatic detection and power management |
Mechanical
| Casing | NS-205PF: Plastic (Flammability UL 94V-0) NSM-205PF: Metal (IP30 Protection) NS-205PF-24V: Plastic (Flammability UL 94V-0) NSM-205PF-24V: Metal (IP30 Protection) |
| Dimensions (w x l x h) | NS-205PF: 31 x 157 x 113 NSM-205PF: 25 x 168 x 119 NS-205PF-24V: 31 x 157 x 113 NSM-205PF-24V: 25 x 168 x 119 |
| Installation | DIN-Rail |
Environmental
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
