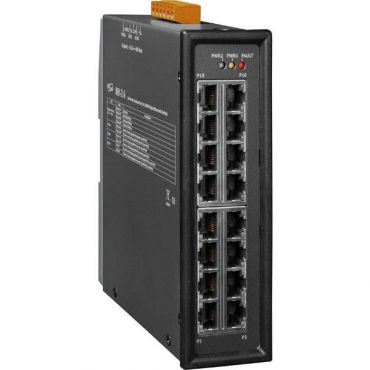

ICPDAS NSM-316 - 16-PORT GB Ethernet Unmanaged Switch
● Full Gigabit Ethernet ports
● Nonblocking architecture, line rate for all packet sizes
● Fully integrated packet buffer
● DIP switch alarm setting for Port’s break
● Power loss alarm
● Supports 9216 Byte jumbo frames
● Supports Auto Negotiation and Auto MDI/MDI-X
● Supports Dual +12 ~ 48 VDC power input and 1 relay output
● Supports operating temperatures from – 40 ~ +75°C
● DIN-Rail, Wall Mounting (optional)
The NSM-316G has 16 Ethernet ports that support 10/100/1000 Base-TX, with a 10/100/1000M auto negotiation feature
and auto MDI/MDI-X function. It can connect 16 workstations and automatically switches the transmission speed (10 Mbps
or 100 or 1000 Mbps) for corresponding connections.
All Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be
transmitted properly. The NSM-316G supports advanced network standards to optimize network performance, reduce
maintenance costs, and secure network safety.
The fl ow control mechanism is also negotiated. There is link/Act LEDs for each port to aid troubleshooting. Port connectors
are shielded RJ-45. DIP switch setting alarm for for each port loss link or break.
| Standards | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control Energy Efficient Ethernet (EEE) as per 802.3az; this provides power savings during idle network activity |
| Processing Type | Store & forward; wire speed switching |
| Packet buffer memory | 8K |
| Memory Bandwidth | 512KByte |
| Jumbo Frames | 9216 Byte |
| Flow Control | IEEE 802.3x fl ow control, back pressure flow control |
| RJ-45 Ports | 10/100/1000 BaseT(X), 10/100BaseT(X) auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection |
| LED Indicators | PWR1, PWR2, FAULT, Link, Act |
| Ethernet Isolation | 1500 Vrms 1 minute |
| DIP Switch | Ports loss link alarm mask |
| Console Port | Debugging, Monitoring, Setting |
| Redundant Input Range | Flexible input +24/+48 VDC Nominal. (+12 ~ +48 VDC) |
| Power Consumption | 0.16A @ 48VDC Idle without loading; 0.2A @ 48VDC with full loading (0.12 W per ports) 0.31A @ 24VDC idle without loading; 0.39A @ 24VDC with full loading (0.12 W per ports) |
| Protection | Power reverse polarity protection |
| Alarm Contact | One relay output with current carrying capacity of 1A @ 30 VDC |
| Connection | 6-Pin Removable Terminal Block (Power & Relay) |
| Case |
Metal (IP30 Protection) |
| Dimensions (w x l x h) |
51 mm x 154 mm x 118 mm |
| Installation | DIN-Rail or Wall Mounting (with optional kit) |
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
