Unmanaged Industrial Ethernet Switch

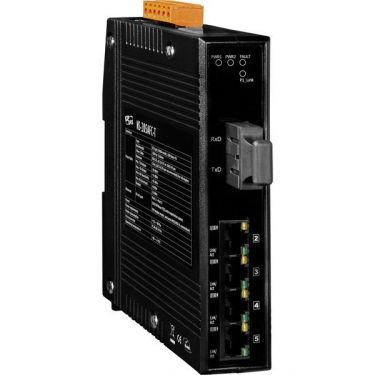

● Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
● Each port supports both 10/100 Mbps speed auto negotiation
● Full duplex IEEE 802.3x
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Redundant dual +12 ~ 48 VDC power inputs
● Supports operating temperatures from -30 ~ +75°C
● DIN-Rail Mounting



● Full Gigabit Ethernet ports
● Nonblocking architecture, line rate for all packet sizes
● Fully integrated packet buffer
● DIP switch alarm setting for Port’s break
● Power loss alarm
● Supports 9216 Byte jumbo frames
● Supports Auto Negotiation and Auto MDI/MDI-X
● Supports Dual +12 ~ 48 VDC power input and 1 relay output
● Supports operating temperatures from – 40 ~ +75°C
● DIN-Rail, Wall Mounting (optional)

● EN50155-certified for harsh railway standards
● Cost-effective
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Each port supports both 10/100 Mbps speed auto negotiation
● Supports +12 ~ +48 VDC power input
● Supports operating temperatures from -40 °C ~ +75 °C

● Each port supports both 10/100 Mbps speed auto negotiation

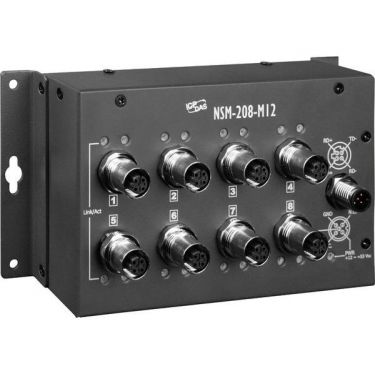

● 8 PoE ports with Power Sourcing Equipment (PSE) operation (NSM-208PSE-M12)
● Over-temperature, over-current and over/under-voltage detection (NSM-208PSE-M12)
● 8-port 10/100 Mbps M12 type connector with IP40 protection
● EN50155-certified for harsh railway standards
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Auto-detection of PD (powered devices) and automatic power management (NSM-208PSE-M12)
● Supports operating temperatures from -40 °C ~ +75 °C

● Provides 16 10/100 Mbps Ethernet ports
● Each port supports both 10/100 Mbps speed auto negotiation
● Supports 4 kV Ethernet ESD protection and 1 kV EFT protection
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail, Wall Mounting
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Supports Dual +12 ~ 48 VDC power input and 1 relay output

● Cost-effective.
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● DIN-Rail
● Each port supports both 10/100 Mbps speed auto negotiation
● Supports +12 ~ +48 VDC power input
● Supports operating temperatures from -40 °C ~ +75 °C
● Plastic or Metal case

Industrial 10/100BASE-TX to 100BASE-FX Media Converter

● Provides 1-port 10/100BASE-TX plus 1-port 100BASE-FX
● The fiber port is available with SC or ST with a fiber connection that can reach up to 120Km (74.4miles)
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Supports 12 to 48VDC Power inputs
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● 384K bits buffer memory

Web-smart 8-port PoE 10/100BASE-TX Ethernet Switch

● 8 ports support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port-based VLAN, QoS Mode, QoS Priority through the Web browser Interface
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 - 240VAC, 50 - 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

Unmanaged 8-port PoE (IEEE802.3at) 10/100BASE-TX and 2-port combo Gigabit SFP Ethernet Switch

● 8 10/100TX ports support 30W (IEEE802.3at) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 to 240VAC, 50 to 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

Web-Smart 8-port 10/100BASE-TX PoE (IEEE802.3at) and 2-port combo Gigabit SFP Ethernet Switch

● 8 10/100TX ports support 30W (IEEE802.3at) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port-based VLAN, QoS Mode, QoS Priority through the Web browser Interface
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 to 240VAC, 50 to 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

Web-smart 16-port 10/100BASE-TX PoE Ethernet Switch

● 16 ports support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port-based VLAN, QoS Mode, QoS Priority through the Web browser Interface
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● 100 - 240VAC, 50 - 60Hz Internal Universal PSU
● 0°C to 45°C (32°F to 113°F) operating temperature range

Unmanaged 16-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 16 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Internal Universal Power Supply 100VAC to 240VAC, 50 to 60HZ
● Operating Temperature Range 0°C to 45°C (32°F to 113°F)

Web-smart 16-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 24 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port based VLAN, QoS Mode, QoS Priority, MAC/Port based trunking through the Web browser interface
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Internal Universal PSU 100VAC - 240VAC, 50 - 60HZ
● Operating Temperature Range 0°C - 45°C (32°F - 113°F)

Web-smart 24-port 10/100BASE-TX PoE and 2-port combo Gigabit SFP Ethernet Switch

● 24 10/100TX ports support 15.4W (IEEE802.3af) Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE (Power status, Link status) through the Web browser Interface
● System, IP Configuration, Port based VLAN, QoS Mode, QoS Priority, MAC/Port based trunking through the Web browser interface
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Internal Universal PSU 100VAC - 240VAC, 50 - 60HZ
● Operating Temperature Range 0°C - 45°C (32°F - 113°F)

Unmanaged Industrial 5-port 10/100BASE Ethernet Switch

● Provides 5-port 10/100BASE-TX or 4-port 10/100BASE-TX plus 1-port 100BASE-FX
● The fiber port is available with SC or ST with a fiber connection that can reach up to 120Km (74.4miles)
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Supports 12 to 48VDC Power inputs
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment

Hardened Unmanaged 8-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 8 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides DIN- Rail, Panel, or Rack Mounting
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX

Web-smart Industrial 5-port 10/100BASE PoE Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides Wall and Desktop mounting
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Industrial Web-Smart 5-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @-20°C to 70°C (-4°F to 158°F)
● Port1-port4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE ports can supports the IEEE802.3af+ standard and power up 30W devices
● Provides Wall and Desktop mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Hardened Web-Smart 5-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides Wall and Desktop mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● PoE (Power budget Control, PoE status, Port status) through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Hardened Web-smart 8-port 10/100BASE High Power PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 8 Ethernet ports that configure incombinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af+Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides DIN-rail, panel or Rack mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● PoE (Power budget Control, PoE status, Port status) through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack
