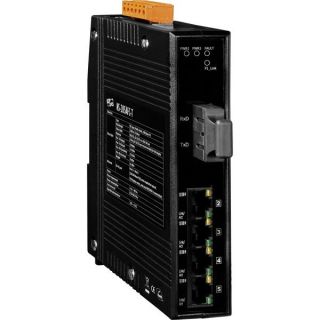

ICPDAS NS-205AF Series - 4-port 10/100 Mbps Ethernet with 1 fiber ports Switch
SKU
NS-205AF
● Provides 1 x 100-FX fiber port plus 4 x Ethernet ports
● Each port supports both 10/100 Mbps speed auto negotiation
● Full duplex IEEE 802.3x
● Automatic MDI/MDI-X crossover for plug-and-play
● Store-and-forward architecture
● Redundant dual +12 ~ 48 VDC power inputs
● Supports operating temperatures from -30 ~ +75°C
● DIN-Rail Mounting
The NS-205AF/NSM-205AF is a 4-port unmanaged Ethernet with 1 fiber port switch. Using fiber optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 60 km) transmissions.
The NS-205AF/NSM-205AF provides a wide 12 to 48 VDC power range to fit all the common power standards found in industrial automation, without external power converters. The wide power input lowers installation and maintenance costs.
Meer informatie
Art.nr.
NS-205AF
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Technology
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward; wire speed switching |
| MAC Addresses | 1024 |
| Memory Bandwidth | 2.0Gbps |
| Frame buffer memory | 521Kbit |
| Flow Control | IEEE 802.3x flow control |
Interface
| RJ45 ports | 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| LED Indicators | Power, Link/Act, 10/100M |
| Ethernet Isolation | 1500Vrms 1 minute |
| +/-4 kV ESD Protection |
Yes |
Power Input
| Input Voltage Range | +12 ~ +48 VDC (Redundant input) |
| Power consumption | 0.2 A @ 24 VDC |
| Protection | Power reverse polarity protection |
| Connection | 6-Pin Removable Terminal Block |
PoE Output
| Voltage | +12 ~ 48 VDC |
Mechanical
| Casing | NS-205AF: Plastic (Flammability UL 94V-0) NSM-205AF: Metal (IP30 Protection) |
| Dimensions (w x l x h) | NS-205AF: 31 mm x 127 mm x 157 mm NSM-205AF: 25 mm x 133 mm x 168 mm |
| Installation | DIN-Rail |
Environmental
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
