Managed Industrial 8-port 10/100BASE and 2-port Gigabit Ethernet Switch with SFP options
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy ● IP Multicast Filtering through IGMP Snooping V1, V2 & V3 ● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP ● IEEE802.1p QoS with four priority queues ● MAC-based trunking and LACP ● IEEE802.1x Security ● Bandwidth Rate Control ● Per-port programmable MAC address locking ● Up to 24 Static Secure MAC addresses per port ● Port mirroring ● NTP synchronization ● DHCP Client/Server ● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management ● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto negotiation, Auto-MDI/MDIX ● Full wire-speed forwarding rate ● -10°C to 60°C (-14°F to 140°F) operating temperature range

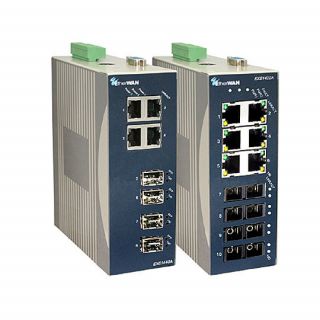

EtherWAN’s EX61000A Series provides an industrial Fully Managed 10-port switching platform combining high performance switching backbone with robust and secure management features required for mission critical and harsh environments where sustained connectivity is crucial.
The EX61000A Series is equipped with ten 10/100BASE Fast Ethernet ports, in combination with up to Two Gigabit, Fixed Fiber, or SFP Combo port options. Mountable on a DIN-rail, the EX61000A Series is equipped with EtherWAN’s Alpha-Ring self-healing technology, providing less than 15ms fault recovery time making it ideal for applications intolerant to interruption.
Users are able to access management features such as; port security, IGMP snooping, VLANs, GARP protocols, LACP, and via web browser, Telnet, SNMP, RMON, TFTP, and RS-232 console interfaces.
14,880pps for 10Mbps 148,810pps for 100Mbps 1,488,100pps for 1000Mbps
Packet Buffer Memory
2M bits
Processing Type
Store-and-forward
Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Address Table Size
8192 MAC addresses
Interface
Ethernet Port
10/100BASE-TX: 8, 6 or 4 port 100BASE-FX: 0 to 4 ports Gigabit: 0, 1 or 2 ports
Console Port
Port: One DB9 RS-232 port
LED Indicators
Per Unit: Power Status (Power 1, Power 2, Power 3) Per Port: 10/100TX, 100FX/ SFP: Link/Activity, Speed 10/100/1000TX, 1000SX/LX/ SFP: Link/Activity,Speed
Alarm Contact
One relay output with current 1A @ 24VDC
Power
Input
Input voltage: 12 to 48VDC (terminal block)
12VDC (DC jack)
Power Consumption
11W Max. 0.92A @ 12VDC, 0.46A @ 24VDC
Overload Current Protection
Present
Reverse Polarity Protection
Present
Mechanical
Casing
Aluminium Case (IP30)
Dimensions (w x h x d)
60mm (W) x 125mm (D) x 145mm (H) (2.36" (W) x 4.92" (D) x 5.7" (H))
Weight
1.1Kg (2.42lbs.)
Installation
DIN-Rail (Top hat type35mm), Rack Mount, Wall Mount
Environmental
Operating Temperature
-10°C to 60°C (14°F to 140°F) Tested @ -20°C to 70°C ( -4°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Humidity
5% to 95% (non-condensing)
Approvals
ISO
Manufactured in an ISO9001 facility
EMI
FCC Part 15, Class A EN61000-6-4 - EN55022 - EN61000-3-2 - EN61000-3-3
EMS
EN61000-6-2 - EN61000-4-2 (ESD Standards) Contact: + / - 6KV Air: + / - 8KV - EN61000-4-3 (Radiated RFI Standards) 10V/m, 80 to 1000MHz; 80% AM - EN61000-4-4 (Burst Standards) Signal Ports: + / - 4KV D.C. Power Ports: + / - 4KV - EN61000-4-5 (Surge Standards) Signal Ports: + / - 2KV; Line-to-Earth D.C. Power Ports: + / - 2KV; Line-to-Earth - EN61000-4-6 (Induced RFI Standards) Signal Ports: 10Vrms @ 0.15 - 80MHz; 80% AM D.C. Power Ports: 10Vrms @ 0.15 - 80MHz; 80% AM - EN61000-4-8 (Magnetic Field Standards) 30A/m @ 50, 60Hz
Environmental Test Compliance
IEC60068-2-6 Fc (Vibration Resistance) 5g @ 10 - 150Hz, Amplitude 0.35mm (Operation/Storage/Transport) IEC60068-2-27 Ea (Shock) 25g @ 11ms (Half-Sine Shock Pulse; Operation) 50g @ 11ms (Half-Sine Shock Pulse; Storage/Transport) FED STD 101C Method 5007.1 (Free fall w/ package) -Tested with Cross Weight and Drop High standard table
