CANopen Slave Series

4-ch Digital Input and 4-ch Relay Output CANopen Slave Module

● I/O Channels: 4DI and 4DO
● Digital Input Type: Sink/Source
● Digital Output Type: Relay
● Relay Type: Form A (SPST-NO)
● Load: 5A, each channel
● ESD Protection: +/- 4kV, Contact for each terminal
● Intra-module Isolation: Field to logic 3750 VDC

CANopen Remote I/O Unit with 8 I/O Expansions

● Industrial Machinery
● Laboratory Equipment & Research
● Restaurant Appliances
● Maritime
● Medical
● Specialty Vehicles
● etc.

CANopen Embedded Device with 1 I/O Expansion

● NMT: Slave
● Error Control: Heart beat to Node Guarding selectable
● No. of SDOs: 1 Server, 0 Client
● No. of PDOs: 16Rx, 16Tx
● PDO Modes: Event Triggered, Remotely requested, Cyclic and Acyclic SYNC
● Emergency Message available
● CANopen Version: DS-301 v4.01
● Device Profile: DSP-401 v2.0
● Produce EDS file Dynamically
● CAN, ERR, and Tx/Rx LED indicator

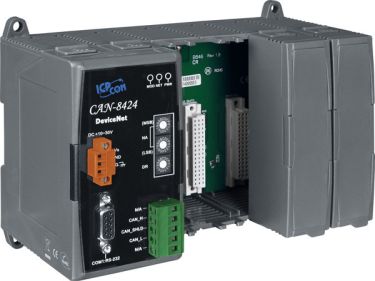

DeviceNet Embedded Device with 4 I/O Expansions

● DeviceNet Version: DeviceNet Specification Volume I & II, Release 2.0
● Number of Nodes: 64 max.
● Baud Rate: 125K, 250K, 500K bps
● Support Message Groups: Predefined Master/Slave Connection set (Group 2 only Server)
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● Device Heartbeat & Shutdown Message
● Produce EDS file Dynamically
● No. of Fragment I/O: 128 Bytes max. (Input / Output)
● MAC ID Setting by Rotary Switch
● Baud Rate Setting by Rotary Switch

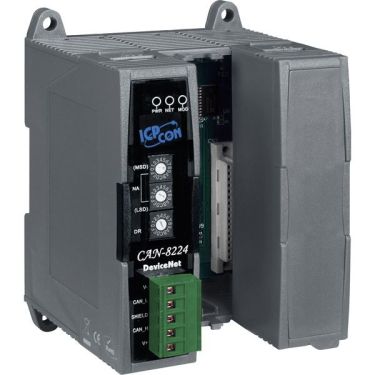

DeviceNet Embedded Device with 2 I/O Expansions

● Number of Nodes: 64 max.
● Baud Rate: 125 K, 250 K, 500 K
● Support Message Groups: Group 2 only Server
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● Device Heartbeat & Shutdown Message
● Produce EDS file Dynamically
● No. of Fragment I/O: 128 Bytes max. (Input / Output)
● MAC ID Setting by Rotary Switch
● Baud Rate Setting by Rotary Switch
● Status LED: NET, MOD, PWR

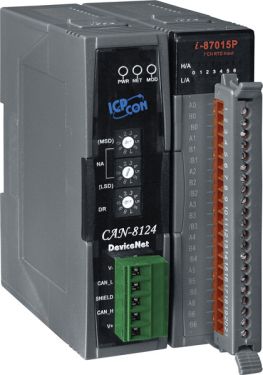

DeviceNet Embedded Device with 1 I/O Expansion

● Number of Nodes: 64 max.
● Baud Rate: 125K, 250K, 500K
● Support Message Groups: Group 2 only Server
● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
● Device Heartbeat & Shutdown Message
● Produce EDS file Dynamically
● No. of Fragment I/O: 128 Bytes max. (Input / Output)
● MAC ID Setting by Rotary Switch
● Baud Rate Setting by Rotary Switch
● Status LED: NET, MOD, PWR

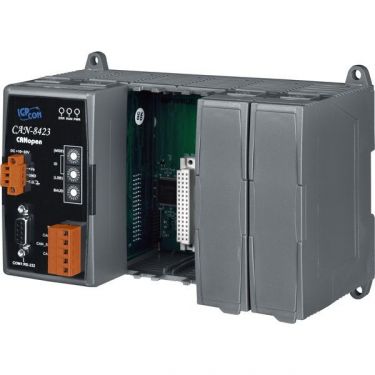

CANopen Embedded Device with 4 I/O Expansions

● NMT: Slave
● Error Control: Heart beat to Node Guarding selectable
● No. of SDOs: 1 Server, 0 Client
● No. of PDOs: 16Rx, 16Tx
● PDO Modes: Event Triggered, Remotely requested, Cyclic and Acyclic SYNC
● Emergency Message available
● CANopen Version: DS-301 v4.01
● CANopen Version: DS-301 v4.02
● Device Profile: DSP-401 v2.0
● Produce EDS file Dynamically
● CAN, ERR, and Tx/Rx LED indicator

CANopen Embedded Device with 2 I/O Expansions

● NMT: Slave
● Error Control: Heart beat to Node Guarding selectable
● No. of SDOs: 1 Server, 0 Client
● No. of PDOs: 16Rx, 16Tx
● PDO Modes: Event Triggered, Remotely requested, Cyclic and Acyclic SYNC
● Emergency Message available
● CANopen Version: DS-301 v4.01
● Device Profile: DSP-401 v2.0
● Produce EDS file Dynamically
● CAN, ERR, and Tx/Rx LED indicator
