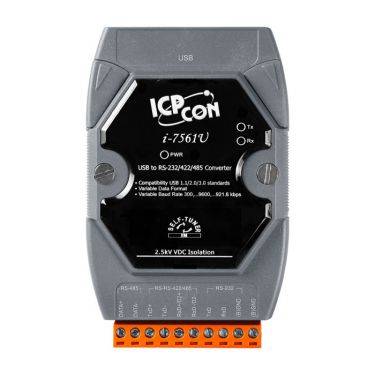

  1. USB to Isolated RS-232/422/485 Converter

    ● Fully Compliant with the USB 1.1/2.0/3.0
    ● 3000 VDC Isolation Protection on the RS-232/422/485 side
    ● ESD Protection for the RS-232/422/485 Data Line
    ● Transmission speed up to 921.6 kbps
    ● No External Power Supply required
    ● Automatic RS-485 Direction Control
    ● Operating Temperatures, -25 °C ~ +75 °C
    ● DIN-Rail Mounting



  2. USB to 4-Port RS-232 Converter

    USB to 4-Port RS-232 Converter

    ● Hi-Speed USB 2.0 for upto 480 Mbps USB transmission
    ● Bus-powered; noneed for external power supplyfor USB- 2412/2514
    ● Power anddata flowindicatorfor troubleshooting
    ● Transmissionspeed upto 921.6 kbps
    ● Operating Temperatures: -25 °C ~ +75 °C
    ● Driver Supports Windows98/ME/2000/XP/Vista(32/64-6 bit)/7(32/64-bit)/Linux
    ● Lockable USB cable
    ● DIN-Rail Mounting

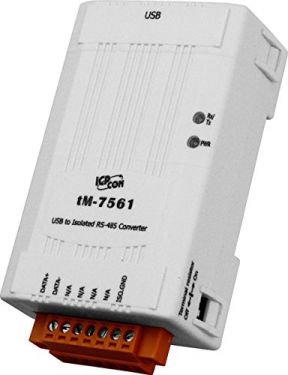

  3. USB to Isolated RS-485 Converter

    USB to Isolated RS-485 Converter

    ● Fully Compliant with the USB 1.1/2.0 (High Speed)
    ● No External Power Supply required
    ● Baud Rate, 300 ~ 115200 bps from the USB Bus
    ● 2500 VDC Isolation Protection on the RS-485 side
    ● Operating Temperatures: -25 °C ~ +75 °C
    ● Driver Supports Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/8 (32/64-bit)Linux
    ● DIN-Rail

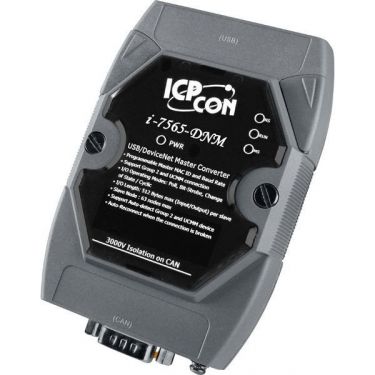

  4. USB/DeviceNet Master communication Converter with D-sub 9-pin connector.

    USB/DeviceNet Master communication Converter with D-sub 9-pin connector.


    ● Fully compliant with USB 1.1/2.0 (Full Speed)
    ● No external power supply is required as I-7565 takes it's power from the USB bus
    ● DeviceNet Version: Volume I & II, Release 2.0
    ● Programmable Master MAC ID and Baud Rate
    ● Baud Rate: 125k, 250k, 500k
    ● Support Group 2 and UCMM connection
    ● I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
    ● I/O Length: 512 Bytes max (Input/Output) per slave
    ● Slave Node : 63 nodes max
    ● Support Auto-Search slave device function

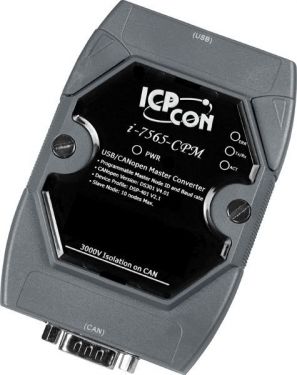

  5. USB/CANopen Master Converter Module

    ● NMT: Master
    ● CANopen Version: DS-301 v4.02
    ● Error Control: Node Guarding protocol
    ● Allow EMCY receptions
    ● Provide dynamic PDO functions
    ● Fully compliant with USB 1.1/2.0 (Full Speed)
    ● Support SYNC protocol
    ● Several transmission types of PDO are supported
    ● Support SDO download/upload segment protocol
    ● PWR, ACT, ERR, and Tx/Rx LED indicator



  6. High Performance Intelligent USB to CAN Converter

    High Performance Intelligent USB to CAN Converter

    ● Fully compliant with USB 1.1/2.0 (Full Speed)
    ● Fully compatible with the ISO 11898-2 standard
    ● Support both CAN2.0A and CAN2.0B
    ● No external power supply (powered by USB)
    ● Integrated with one or two CAN bus channels
    ● Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
    ● Support CAN bus acceptance filter configuration
    ● Time-stamp of CAN message with at least ±1ms precision
    ● Support firmware update via USB
    ● Provide API library for users' program development easily


  7. High Performance Intelligent USB to CAN Converter

    High Performance Intelligent USB to CAN Converter

    ● Fully compliant with USB 1.1/2.0 (Full Speed)
    ● Fully compatible with the ISO 11898-2 standard
    ● Support both CAN2.0A and CAN2.0B
    ● Powered by USB bus
    ● Integrated with one or two CAN bus channels
    ● Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
    ● Support CAN bus acceptance filter configuration
    ● Time-stamp of CAN message with at leastI-7565-H1 1 ms precision
    ● Support firmware update via USB
    ● Provide API library for users' program development easily


  8. USB to CAN Converter

    USB to CAN Converter

    ● Microprocessor inside with 20MHz
    ● RoHS Design
    ● Fully compliant with USB 1.1/2.0(Full Speed)
    ● Fully compatible with the ISO 11898-2 standard
    ● No external power supply is required as I-7565 takes it's power from the USB bus
    ● 82C250 CAN transceiver
    ● Transmission speed up to 1M bps for CAN and 921.6K bps for USB
    ● Support both CAN 2.0A and CAN 2.0B
    ● Built-in jumper to select 120 ohm terminal resister
    ● Power, data flow and error indicator for CAN and USB
    ● 1000 frames in CAN received buffer



  9. USB to Isolated RS-485 Active Star Wiring Converter

    USB to Isolated RS-485 Active Star Wiring Converter

    ● Fully Compliant with USB 1.1/2.0 (High Speed)
    ● No External Power Supply is required as the I-7561 is powered
    ● RS-485 Active Star Wiring Applications from the USB Bus
    ● Baud Rate: 300 ~ 115200 bps
    ● 3000 VDC Isolation Protection on the RS-485 side
    ● ESD Protection for the RS-485 Data Line
    ● Operating Temperatures: -25 °C ~ +75 °C
    ● Driver Supports Windows 7/10 (32/64-bit)/Linux
    ● DIN-Rail Mountable

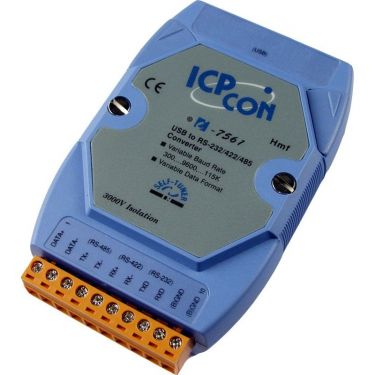

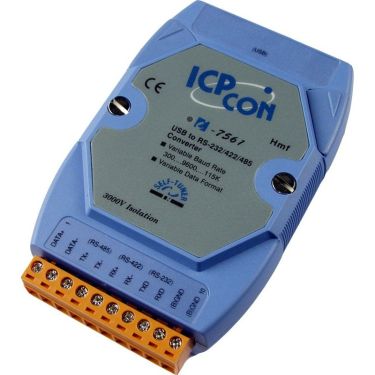

  10. USB to Isolated RS-232/422/485 Converter

    USB to Isolated RS-232/422/485 Converter

    ● Fully Compliant with the USB 1.1/2.0 (High Speed)
    ● No External Power Supply is required as the I-7561 is powered
    ● Baud Rate: 300 ~ 115200 bps
    ● 3000 VDC Isolation Protection on the RS-232/422/485 side
    ● ESD Protection for the RS-232/422/485 Data Line
    ● Operating Temperatures: -25 °C ~ +75 °C
    ● Driver Supports Windows 7(32/64-bit)/10/2012/Linux
    ● DIN-Rail Mountable

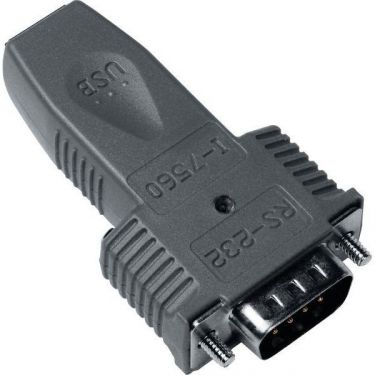

  11. USB to RS-232 Converter

    USB to RS-232 Converter

    ● Fully Compliant with the USB 1.1/2.0 (High Speed)
    ● No External Power Supply is required as the I-7560 is powered from the USB Bus
    ● Baud Rate, 300 ~ 115200 bps
    ● Operating Temperatures, -25 °C ~ +75 °C
    ● Driver Supports Windows 7/10 64-bit / Linux
