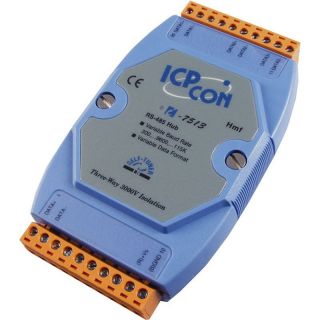

ICPDAS I-7513

Levertijd:

2~7 dagen

SKU

I-7513

3-Way Isolated RS-485 Active Star Wiring Hub

● RS-485 Active Star Wiring Applications
● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for the RS-485 Data Line
● 3000 VDC Three Way Isolation Protection
● Power Input, +10 ~ +30 VDC
● Operating Temperatures, -25 °C ~ +75 °C
● DIN-Rail Mountable

Brochure EN

Details

The I-7513 is a 3-channel RS-485 Active Star Wiring Hub. The unit has three independent RS-485 output channels, each with their own driver, which can transmit signals across 1200 m of cable on each channel.

The I-7513 includes both Hub and Repeater functions, so each output channel can be connected to another hub.

The isolation site of the I-7513 is located in the input and output interface circuit. In other words, the I-7513 is a three-way isolation module.

SPECIFICATIES

Meer informatie

Art.nr.

I-7513

Fabrikant

ICPDAS

Land van herkomst

Taiwan

Interface

Input (Master)	1 RS-485 Channel: Data+, Data-
Output (Slave)	3 RS-485 Channels: Data+, Data-
2-wire Cabling	Belden 8941 (2P twisted-pair cable), if different cables are used, the transmission distance may change
Transfer Distance	Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps
Max. Devices Supported	256 (Each channel)
Self-Tuner Asic Inside	Yes
Speed	300 ~ 115200 bps
ESD Protection	Yes
3000 VDC Three Way Isolated Protection	Yes
Connection	Removable 10-Pin Terminal Block x2
