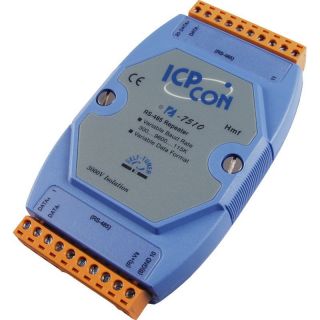

ICPDAS I-7510
Levertijd:
Uit voorraad leverbaar
SKU
I-7510
Isolated RS-485 Repeater
● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for RS-485 Data Line
● 2-way 3000 VDC Isolation Protection
● Transmission Speed of up to 115200 bps
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable
The I-7510 provides 2-way optical isolation between one piece of RS-422/RS-485 equipment and the rest of the system. It can also be used as a repeater to extend the transmission of an existing network.
Additionally, an RS-485 system can be expanded beyond the 256 node limitation imposed by the standard. It can also be used to convert a four-wire RS-422 signal into a 2-wire RS-485 signal, and vice versa.
Meer informatie
Art.nr.
I-7510
Fabrikant
ICPDAS
Interface
| Serial Interface |
|
||||
| 2-wire cabling | Belden 8941 (2P twisted-pair cable), if different cables are used, the transmission distance may change | ||||
| Transfer Distance | Max. 1,200 m at 9.6 kbps; Max. 400 m at 115.2 kbps | ||||
| Max. Devices Supported | 256 | ||||
| Self-Tuner Asic Inside | Yes | ||||
| Speed | 300 ~ 115200 bps | ||||
| ESD Protection | Yes | ||||
| 3000 VDC Isolated Voltage | 2-way Isolated | ||||
| Connection | Removable 10-Pin Terminal Block x2 |
LED Indicators
| Power/Communication | Yes |
Power
| Input Voltage Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Power Consumption | 2.16 W |
Mechanical
| Casing | Plastic |
| Flammability | Fire Retardant Materials (UL94-V0 Level) |
| Dimensions (w x h x d) | 72 x 122 x 35mm |
| Installation | DIN-Rail Mounting |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +75 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
