RS-232/422/485 converter

tM-7520A Tiny Isolated RS-232 to RS-422/485 Converter - ICPDAS

● Automatic RS-485 Direction Control
● ESD Protection for the RS-232/422/485 Data Line
●Transmission Speed of up to 115200 bps

ICPDAS Tiny Addressable Serial Converter - tM-7521

● Integrates any RS-232/485 serial device
● Contains a high-performance 32-bit MCU
● 10/100 Base-TX Ethernet, RJ-45 x1
● (Auto-negotiating, auto MDI/MDIX, LED Indicators)
● Includes redundant power inputs: PoE and DC jack
● Provides automatic RS-485 direction control
● Includes a UDP responder for device discovery
● Supports easy firmware updates via the Ethernet
● Contains a tiny web server for configuration
● Terminal block connector for easy wiring
● Tiny form-factor and low power consumption
● Made from fire retardant materials (UL94-V0 Level)
● Cost-effective with a low channel count

ICPdas PROFIBUS/Ethernet Converter(RoHS)

● DP-V0 Slave
● Transmission Rate (kbps) 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
● Automatically sets transmission rates
● Max Input/Output of Data is 240Bytes
● Web Configuration
● 10/100 Base-TX
● 2500 Vrms Network Isolation Protection
● 3000 VDC DC Protection Isolation Protection on PROFIBUS side

Isolated RS-485 Repeater

● 2-way 2500 VDC Isolation Protection
● ESD Protection for RS-485 Data Line
● Power Input, +10 ~ +30 VDC
● Low power consumption
● Long-cable application
● Power and data flow indicator for troubleshooting
● Easy-to-use rotary switch for baud rate setting, 1200 ~ 115200 bps
● Operating Temperatures, -25 °C ~ +75 °C
● Tiny packaging fits on your DIN-Rail Mounting



Isolated RS-232 to RS-485 Converter

● 2-way 2500 VDC Isolation Protection
● ESD Protection for RS-485 Data Line
● Power Input, +10 ~ +30 VDC
● Low power consumption
● Long-cable application
● Power and data flow indicator for troubleshooting
● Easy-to-use rotary switch for baud rate setting, 1200 ~ 115200 bps
● Operating Temperatures, -25 °C ~ +75 °C
● Tiny packaging fits on your DIN-Rail

3-Way Isolated RS-485 Active Star Wiring Hub

● RS-485 Active Star Wiring Applications
● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for the RS-485 Data Line
● 3000 VDC Three Way Isolation Protection
● Power Input, +10 ~ +30 VDC
● Operating Temperatures, -25 °C ~ +75 °C
● DIN-Rail Mountable

Isolated RS-232 to RS-232 Converter

● 3000 VDC 3-way Isolation Protection
● ESD Protection
● Power Input, +10 ~ +30 VDC
● Baud Rate: 300 ~ 115200 bps
● Operating Temperatures, -25 °C ~ +75 °C
● DIN-Rail Mountable

3-way Isolated RS-422/485 Repeater/Converter

● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for RS-485 Data Line
● 3-way 3000 VDC Isolation Protection
● Transmission Speed of up to 115200 bps
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable

Isolated RS-422/485 Repeater/Converter

● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for RS-485 Data Line
● 2-way 3000 VDC Isolation Protection
● Transmission Speed of up to 115200 bps
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable

Isolated RS-485 Repeater

● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for RS-485 Data Line
● 2-way 3000 VDC Isolation Protection
● Transmission Speed of up to 115200 bps
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable

Isolated 4 Channels RS-485 Active Hub

● True RS-485 Star Wiring Hub
● Independent RS-485 driver for each channel
● LEDs for indicating RS-485 TxD/RxD activity
● Auto Switching baud rate, 300 ~ 115200 bps and fixed baud rate setting via rotary switch, 1200 ~ 115200 bps
● Hubs can be daisy chained for 256 channels
● 120Ω termination resistor for each channel
● Power Input, +10 ~ +30 VDC
● Operating Temperatures, -25 °C ~ +75 °C
● DIN-Rail Mountable

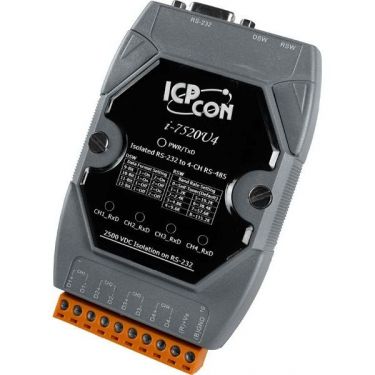

Isolated RS-232 to 4 Channels RS-485 Active Hub

● True RS-485 Star Wiring Hub
● Independent RS-485 driver for each channel
● LEDs for indicating TxD/RxD activity
● Self-Tuner baud rate, 300 ~ 115200 bps and fixed baud rate setting via rotary switch, 1200 ~ 115200 bps
● Hubs can be daisy chained for 256 channels
● 120Ω termination resistor for each channel
● Power Input, +10 ~ +30 VDC
● Operating Temperatures, -25 °C ~ +75 °C
● DIN-Rail Mountable

Internet communication controller with one CAN bus, one RS-232, one RS-485 and one Ethernet

● 80186-80 Embedded CPU, or compatible
● Ethernet Protocols, TCP, UDP, IP, ICMP, ARP
● 10/100 Base-TX Ethernet Controller
● Reloadable Operating Software
● Message transmitted by using TCP/IP protocol
● Diagnostics
● COM driver support interrupt & 1K QUEUE Input & Output buffer
● Support one RS-232 port, one RS-485 port and one CAN port
● 2500 Vrms photo-isolation protection on CAN side
● Jumper select 120 Ω terminator resistor for CAN channel

PROFIBUS to RS-232/422/485 Converter

● Protocol & Hierarchy: DP-V0 Slave
● Detect transmission rate (9.6 ~ 12000 kbps) automatically
● Max length of in/output data is 128 Bytes
● Address 0 ~ 126 set by DIP switch or EEPROM
● Support several kinds of baud rate for COM1 from 1.2 ~ 115.2 kbps
● Built-in self-tuner ASIC controller on RS-422/485 port
● Network Isolation Protection: High Speed iCoupler
● 3000 VDC isolation protection on PROFIBUS side
● 4 kV ESD Protection
● DIN-Rail Mountable

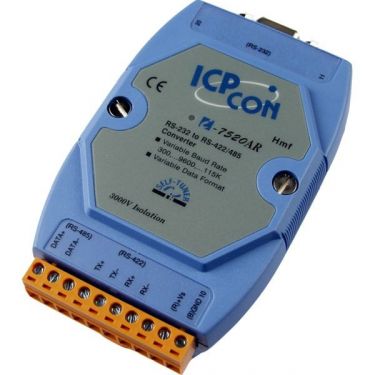

RS-232 to Isolated RS-422/485 Converter

● Auto Switching Baud Rate, 300~115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● Transmission Speed of up to 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable

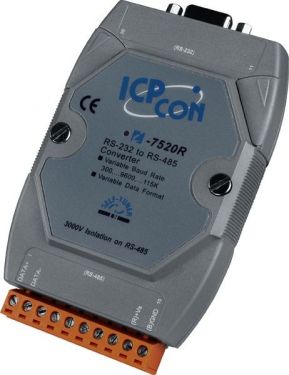

RS-232 to Isolated RS-485 Converter

● Auto Switching Baud Rate, 300 ~ 115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● Transmission Speed of up to 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable

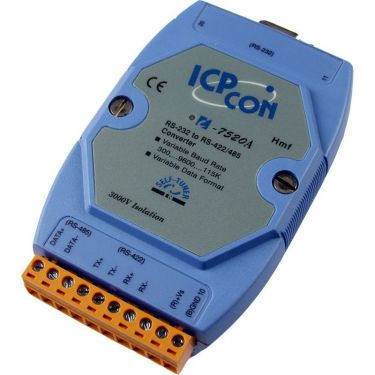

Isolated RS-232 to RS-422/485 Converter

● Auto Switching Baud Rate, 300~115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● Transmission Speed of up to 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable

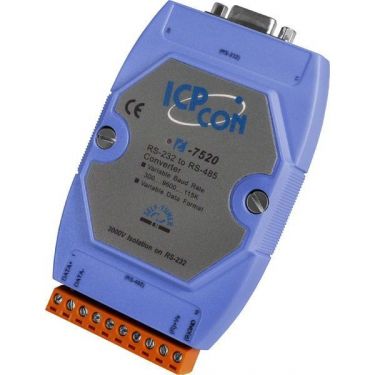

Isolated RS-232 to RS-485 Converter

● Auto Switching Baud Rate, 300~115200 bps
● 3000 VDC Isolation Protection on the RS-485 side
● Transmission Speed of up to 115200 bps
● ESD Protection for the RS-232/485 Data Line
● Power Input of +10 ~ +30 VDC
● Supports Operating Temperatures from -25 °C ~ +75 °C
● DIN-Rail Mountable

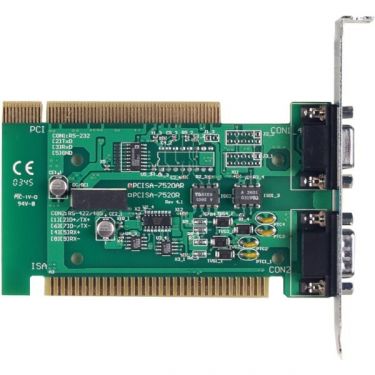

Isolated RS-232 to RS-422/485 Converter Card

● No External Power Supply required
● No Driver installation required
● 3000 VDC
● Isolation Protection
● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Transmission Speed of up to 115200 bps
● Can be used in an ISA Bus, a PCI Bus or any system with an RS-232 Interface

Isolated RS-232 to RS-485 Converter Card

● No External Power Supply required
● No Driver installation required
● 3000 VDC
● Isolation Protection
● Auto Switching Baud Rate, 300 ~ 115200 bps
● ESD Protection for the RS-232/422/485 Data Line
● Transmission Speed of up to 115200 bps
● Can be used in an ISA Bus, a PCI Bus or any system with an RS-232 Interface
