CAN/PROFIBUS/HART converter

Ethernet to HART Converter

● Support HART Short/Long frame
● Support HART Burst mode
● Support point-to-point or multi-drop HART mode
● Support connecting up to 15 HART slave devices
● Allow two HART masters
● Provide PWR / TxRx indication LED
● 4KV ESD Protection
● Built-in Watchdog
● Selectable 250Ω load resistor
● Provide four HART channels
● Support VxComm technique

ICPdas PROFIBUS/Ethernet Converter(RoHS)

● DP-V0 Slave
● Transmission Rate (kbps) 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000
● Automatically sets transmission rates
● Max Input/Output of Data is 240Bytes
● Web Configuration
● 10/100 Base-TX
● 2500 Vrms Network Isolation Protection
● 3000 VDC DC Protection Isolation Protection on PROFIBUS side

Serial to HART Converter

● Support HART Short/Long frame
● Allow two HART masters
● Working in point-to-point or multi-drop HART mode
● Connecting up to 15 HART modules
● Provide utility tool for module configuration
● Isolated COM 1: RS-232/422/485
● Provide PWR / RUN / ERR indication LED
● Built-in Watchdog
● 4 kV ESD Protection

Modbus RTU to CAN converter

● RoHS Design
● Fully compatible with ISO 11898-2 standard
● Programmable CAN bus baud rate from 10 kbps to 1 Mbps or user-defined baud rate
● Support CAN bus acceptance filter configuration
● Support firmware update via RS-232
● Provide utility tool for module setting and CAN bus communication testing
● Built-in jumper to select 120Ω terminator resistor
● CAN buffer: 128 data frames ; UART buffer: 256 bytes
● Power, data flow and error indicator for CAN and UART status
● Hardware Watchdog design
● Convert CAN message to specific ASCII command string (Normal mode)
● Convert specific ASCII command string to CAN message (Normal mode)
● Provide the transparent communication between the RS-232/485/422 devices via CAN bus (Pair-connection mode)
● Support function code 0x03/0x04/0x10 of Modbus RTU command for reading and writing CAN message (Modbus RTU mode)

USB To HART Converter

● Support HART Short/Long frame
● Allow two HART masters
● Working in point-to-point or multi-drop HART mode
● Connecting up to 15 HART modules
● Provide utility tool for module configuration
● No external power supply (powered by USB)
● Support firmware update via USB
● Provide PWR / Tx / Rx indication LED
● 4kV ESD Protection

CAN to WI-Fi Converter

● IEEE 802.11a/b/g compliant
● Wireless data transmission via WLAN
● Two different operation modes: infrastructure and ad-hoc
● Point to point or point to multi-points connection via wireless LAN
● Supports WEP, WPA and WPA2 encryption for wireless LAN
● CAN 2.0A/2.0B compliant
● Connect CAN networks via a WLAN bridge
● Communication efficiency: one-way is up to 700 fps (client->server->client), two-way 350 fps (client<=>server)
● Wireless communication: 100m (Without PA) / 300m (With PA)

Internet communication controller with one CAN bus, one RS-232, one RS-485 and one Ethernet

● 80186-80 Embedded CPU, or compatible
● Ethernet Protocols, TCP, UDP, IP, ICMP, ARP
● 10/100 Base-TX Ethernet Controller
● Reloadable Operating Software
● Message transmitted by using TCP/IP protocol
● Diagnostics
● COM driver support interrupt & 1K QUEUE Input & Output buffer
● Support one RS-232 port, one RS-485 port and one CAN port
● 2500 Vrms photo-isolation protection on CAN side
● Jumper select 120 Ω terminator resistor for CAN channel

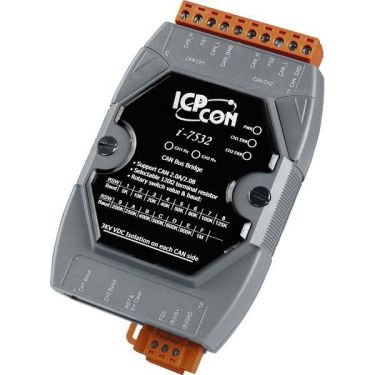

2-channel CAN Bus Isolated Bridge

● Microprocessor inside with 72MHz
● 82C250 CAN transceiver
● 2500 VRMS photo coupler isolation on the CAN side
● 3KV galvanic isolation among the power supply and 2 CAN channels
● Support both CAN 2.0A and CAN 2.0B
● Fully compatible with the ISO 11898-2 standard
● Adjustable CAN bus baud rate from 5Kbps to 1Mbps or programmable user-defined baud rate
● Support CAN bus message acceptance filter configuration
● Build-in jumper to select 120Ω terminal resistor
● Watchdog inside

Intelligent RS-232/485/422 to CAN converter

● Compatible with CAN specification 2.0A and B
● Fully compatible with ISO 11898-2 standard
● Support various bauds from 10K bps to 1M bps
● Jumper for 120 Ω terminator resistor
● Software configurable CAN and RS-232 /422/485 communication parameters
● Power, data flow and error indicator for CAN and RS-232/422/485
● Watchdog inside
● Provide the transparent communication between the RS-232/485/422 devices via CAN bus
● Enable different RS-232/485/422 devices into an individual group in CAN bus network.

(Full-duplex communication mode of RS-232/422 devices is not supported)

Intelligent RS-232/CAN low speed fault tolerant converter

● Compatible with CAN specification 2.0A and 2.0B
● Fully compatible with ISO 11898-2 standard
● Support various bauds from 10K bps to 1M bps
● Fully compatible with ISO 11898-3 standard (low speed fault tolerance)
● Software configurable CAN and RS-232 communication parameters
● Power, data flow and error indicator for CAN and RS-232
● Watchdog inside
● Support transparent communication mode
● 1000 frames in CAN received buffer and 900 frames in RS-232 received buffer

Intelligent RS-232 to CAN converter

● Compatible with CAN specification 2.0A and 2.0B
● Fully compatible with ISO 11898-2 standard
● Support various bauds from 10K bps to 1M bps
● Jumper for 120Ω terminator resistor
● Software configurable CAN and RS-232 communication parameters
● Power, data flow and error indicator for CAN and RS-232
● Watchdog inside
● Support transparent communication mode
● 1000 frames in CAN received buffer and 900 frames in RS-232 received buffer

PROFIBUS to RS-232/422/485 Converter

● Protocol & Hierarchy: DP-V0 Slave
● Detect transmission rate (9.6 ~ 12000 kbps) automatically
● Max length of in/output data is 128 Bytes
● Address 0 ~ 126 set by DIP switch or EEPROM
● Support several kinds of baud rate for COM1 from 1.2 ~ 115.2 kbps
● Built-in self-tuner ASIC controller on RS-422/485 port
● Network Isolation Protection: High Speed iCoupler
● 3000 VDC isolation protection on PROFIBUS side
● 4 kV ESD Protection
● DIN-Rail Mountable

High Performance Intelligent USB to CAN Converter

● Fully compliant with USB 1.1/2.0 (Full Speed)
● Fully compatible with the ISO 11898-2 standard
● Support both CAN2.0A and CAN2.0B
● No external power supply (powered by USB)
● Integrated with one or two CAN bus channels
● Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
● Support CAN bus acceptance filter configuration
● Time-stamp of CAN message with at least ±1ms precision
● Support firmware update via USB
● Provide API library for users' program development easily

High Performance Intelligent USB to CAN Converter

● Fully compliant with USB 1.1/2.0 (Full Speed)
● Fully compatible with the ISO 11898-2 standard
● Support both CAN2.0A and CAN2.0B
● Powered by USB bus
● Integrated with one or two CAN bus channels
● Programmable CAN bus baud rate from 5Kbps to 1Mbps or user-defined baud rate
● Support CAN bus acceptance filter configuration
● Time-stamp of CAN message with at leastI-7565-H1 1 ms precision
● Support firmware update via USB
● Provide API library for users' program development easily

USB to CAN Converter

● Microprocessor inside with 20MHz
● RoHS Design
● Fully compliant with USB 1.1/2.0(Full Speed)
● Fully compatible with the ISO 11898-2 standard
● No external power supply is required as I-7565 takes it's power from the USB bus
● 82C250 CAN transceiver
● Transmission speed up to 1M bps for CAN and 921.6K bps for USB
● Support both CAN 2.0A and CAN 2.0B
● Built-in jumper to select 120 ohm terminal resister
● Power, data flow and error indicator for CAN and USB
● 1000 frames in CAN received buffer
