ICPDAS TPM-4100/TP-4100

Levertijd:
2~7 dagen
SKU
TPM-4100/TP-4100

10.4" Touch Panel Monitor

● 10.4" LCD supports 800 x 600 resolution
● Touch Panel
● Full-function OSD control
● Driver Support: Windows 2k/XP/Vista/7/WES WinCE 5.0/6.0
● LED backlight technology
● Aluminum Casing for TPM-4100
● IP65 Compliant Front Panel
● Wide operating temperature: -25 ~ +75°C

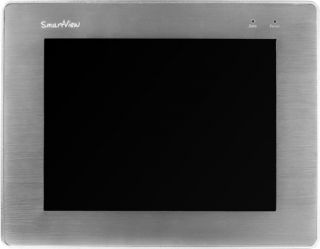

The TPM-4100 Panel Mount Monitor adopts a standard 10.4" TFT LCD screen with rugged aluminum front bezel and supports 800 x 600 resolution, and -25 ~ 75°C operating temperature. The TPM-1010 is also guaranteed to work with ICP DAS PAC control system, such as WP-8000 series, XP-8000 series.
Meer informatie
Art.nr.
TPM-4100/TP-4100
Fabrikant
ICPDAS
CPU
Display
10.4
Resolution 800 x 600
Max. Color 16.7 M
Brightness (cd/m2) 320
Contrast Ratio 500 : 1
Viewing Angle (H/V) 140/130
Backlight life (hrs) 50,000
Touch Panel Analog resistive, RS-232 or USB1.1 (Type B) interface
TPM-4100: 4- wire
TP-4100: 5-wire
Input Signal VGA (Analog RGB)
OSD Control Functions: Brightness, Contrast, Phase, Horizontal Position, Vertical Position and Sharpness
Power Switch Yes
LED Indicators Power, Display signal is detected
Mechanical
Casing
TPM-4100: Aluminum
TP-4100: Plastic
Dimensions (W x L x H)
TPM-4100: 293 mm x 231 mm x 53 mm
TP-4100: 290 mm x 228 mm x 53 mm
Installation TPM-4100: Panel Mounting
TP-4100: Panel Mounting, VESA (75 75) Mounting
Ingress Protection Front panel: IP65
Power
Input Range +12 ~ 48 VDC
Power Consumption
8.5 W
Omgeving
Operating Temperature
-25 °C ~ +75 °C
Storage Temperature
-30 °C ~ +80 °C
Ambient Relative Humidity
10% ~ 90% RH, non-condensing
