VXIbus
ICS Electronics biedt betrouwbare en robuuste VXIBUS-oplossingen, die hoogwaardige VXI-instrumentatieplatforms bieden voor industriële en laboratoriumtoepassingen. Onze VXIBUS-producten voldoen aan VXI-standaarden, waardoor ze compatibiliteit en interoperabiliteit garanderen met VXI-compatibele instrumenten van verschillende fabrikanten. Belangrijke kenmerken zijn modulair ontwerp voor eenvoudige aanpassing, schaalbaarheid van kleine tot grote systemen, snelle gegevensoverdracht en naadloze integratie met VXI-compatibele instrumenten. Gebouwd met hoogwaardige componenten bieden onze VXIBUS-oplossingen betrouwbare prestaties en duurzaamheid in veeleisende omgevingen. Ontdek de VXIBUS-oplossingen van ICS Electronics voor veelzijdige en efficiënte instrumentatiesystemen.
ICS Dual Serial Module VXI-5562VXI Dual Binary Serial Module
● Sends and receives 16-bit word and arbitrary bit length messages with baud rates up to 9 Mbs. Handles most binary formats at high transfer rates.
● Multiple transmission modes and programmable gate and clock outputs. Duplicates most serial protocols.
● Receiver inputs data upon command on when a sync pattern is detected. Captures both types of messages.
● Register based interface has fast VXIbus data transfer rate. Reduces VXIbus transfer time.
● Large TX and RX FIFO's hold 2 Mbytes. Enough data for a complete test sequence.
● Internal Baud Rate Generators covers a 1 to 10 MHz range. Provides all clock rates.
● Transmission can be triggered with external or VXIbus triggers. Easily controllable in a test system.
● Custom protocols with special firmware. Adapts module to your special test needs.

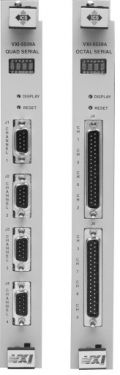

ICS Quad Serial Module VXI-5539AVXI 4 or 8 serial ports in one module
● Four or eight programmable RS-232, RS-422 or RS-485 Serial Ports. No need to remove the module to make changes.
● Multiprotocol capability - ASYNC mode standard, HDLC, SDLC, and other bit oriented protocols with custom firmware. Supports virtually any serial data transfer application.
● Asynchronous mode select character format, flow control and clock sources. Program any asynchronous format.
● Any standard baud rate from 50 to 460.8 Kbaud with internal clock. Wide range of programmable baud rates.
● Message-based or Fast Data Channel buffers for continuous high-speed data transfer. Allows continuous serial data with minimal VXIbustime.
● Programmed termination resistors for RS-485 half duplex operation. Eliminates external resistors.
● Alpha numeric status display on front panel. Shows device activity and interface diagnostics for program debugging.

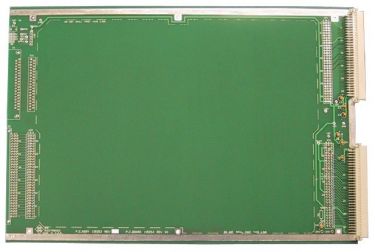

ICS VXI Blank Board 115250VXI C-size Bare Board
● C-size Board for mounting devices, modules or circuits. Builds a C-size VXIbus module.
● Connection Pads for all VXI voltages and signals. All signals for any use.
● Includes pad patterns for front panel connectors, LEDs and a Reset Switch. Easy front panel access when needed.
● CAD Design aids for Schematic Capture, PC board layout and front panel machining. Speeds up your design.
● Optional VXI Hardware Shield Kits to fabricate a complete module. Builds 1, 2 and 3-slot wide kits.
ICS Prototyping Module Kit VXI-5502VXI Prototype Module Kits
● Choice of two prototyping boards and 4 VXI Shield Kits. Fastest way to build any size VXIbus module.
● User register-based VXI interface that provides digital I/O lines and a VXI data expansion bus. Easiest interface for controlling user's circuits.
● VXI-5502 has a Prototyping Board with holes on 0.1 centers plus power and ground planes. Breadboard analog or digital circuits.
● CAD Design aids for PC board layout. Upward migration path to a PC board without major re-design.
● User configurable VXI response registers. Personalizes the finished module as your product.
ICS Prototyping Module VXI-5501VXI Prototype Module Kits
● Choice of two prototyping boards and 4 VXI Shield Kits. Fastest way to build any size VXIbus module.
● User register-based VXI interface that provides digital I/O lines and a VXI data expansion bus. Easiest interface for controlling user's circuits.
● VXI-5501 has a Bare Copper-clad Board for RF and microwave modules. Provides ground planes for high frequency modules.
● CAD Design aids for PC board layout. Upward migration path to a PC board without major re-design.
● User configurable VXI response registers. Personalizes the finished module as your product.

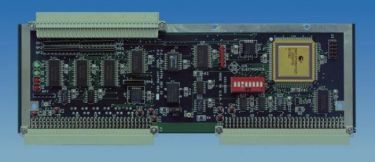

ICS Register Basted Interface Card VXI-5524VXI-5524 Register Based Interface Card
● Mates with user's PCB to form a C or D-size module. The quickest way to make a VXI module.
● A complete VXI-1 Rev 1.4 and VXI-2 compliant register-based interface. High speed VXIbus interface that meets the latest VXIbus specifications.
● User interface includes 48 I/O signals, a VXI expansion bus, TTL Triggers and VXI interrupt capability. Supports virtually any kind of user circuit or function.
● User configureable model number, manufacturer ID, version and serial numbers. Identifies the finished module as your product.
● Two companion component boards available for prototype modules. No need to layout prototype boards.
● Companion hardware kits available for building 1, 2 or 3-slot wide modules. Complete hardware support for all width C-size modules.
