Serial DAQ & Control

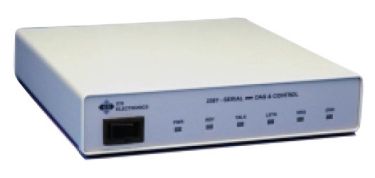

Serial Data Acquisition and Control Module

● Combines analog I/O, digital I/O, relay drivers and temperature readings in one board. Versatile serial control board handles many applications.
● User selectable RS-232 or RS-422/RS-485 interface. Flexible serial interface supports point-to-point and network connections.
● Uses SCPI commands and IEEE-488.2 status reporting structure. Provides GPIB functionality over a serial link.
● Optional packet protocol adds checksum protection to each message. Added protection against erroneous messages.
● Rugged metal case that can be rack mounted. Suitable for portable or airborne applications.
● Support includes a menu driven configuration and an example Visual Basic program. Easy to use, easy to program.
● Companion Terminal Board simplifies test connections. Saves connection time.

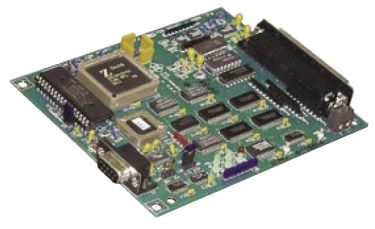

Serial Data Acquisition and Control Board

● Combines analog I/O, digital I/O, relay drivers and temperature readings in one board. Versatile serial control board handles many applications.
● User selectable RS-232 or RS-422/RS-485 interface. Flexible serial interface supports point-to-point and network connections.
● Uses SCPI commands and IEEE-488.2 status reporting structure. Provides GPIB functionality over a serial link.
● Optional packet protocol adds checksum protection to each message. Added protection against erroneous messages.
● Rugged metal shell connectors provide secure connections. Suitable for portable or airborne applications.
● Support includes a menu driven configuration program, Visual Basic and LabView programs. Easy to use, easy to program.
● Companion Terminal Board simplifies test connections. Saves connection time.
