● Combines analog I/O, digital I/O, relay drivers and temperature readings in one board. Versatile serial control board handles many applications. ● User selectable RS-232 or RS-422/RS-485 interface. Flexible serial interface supports point-to-point and network connections. ● Uses SCPI commands and IEEE-488.2 status reporting structure. Provides GPIB functionality over a serial link. ● Optional packet protocol adds checksum protection to each message. Added protection against erroneous messages. ● Rugged metal case that can be rack mounted. Suitable for portable or airborne applications. ● Support includes a menu driven configuration and an example Visual Basic program. Easy to use, easy to program. ● Companion Terminal Board simplifies test connections. Saves connection time.

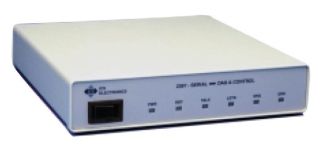

ICS Data Acquisition and Control Module 2367 provides analog and digital signals for controlling a device and the capability to read back analog voltages, digital signals and temperatures. The 2367's serial interface has selectable RS-232, RS-422 or RS-485 signals and supports point-to-point or network connections. The ICS Data Acquisition and Control Module 2367 has a SCPI command parser and a IEEE-488.2 Status Structure, so it provides the user with true GPIB functionality over a serial link.
