ICPDAS PAC I-8411

Levertijd:
2~7 dagen
SKU
I-8411

Serial embedded controller (C Language Based)

● Serial Port-based embedded controller
● Equipped with MiniOS7
● Provides API Functions for: i-8K, i-87K I/O, 7-SEG LED display, RTC (Real Time Clock), EEPROM, and more
● Updating the firmware, and download programs via the RS-232 port
● Hardware designed to protect software
● Innovation design on reliability, flexibility and expansibility
● Built-in WatchDog Timer
● Input protection circuitry
● High-performance integrated power supply
● Ventilated housing designed to work between -25 °C~ +75 °C

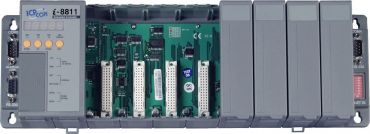

The ICPDAS 8000 Series PAC I-8411 is a serial embedded controller with 4/8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD.

The MiniOS7 can boot up in a very short time (0.4~0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc.

The ICPDAS 8000 Series PAC I-8411 back plane is equipped four serial COM Port, they include RS-232 and RS-485 ports and can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. By using S-256 (256 KBytes) or S-512 (512 KBytes) battery backup SRAM, they provide data logger storage function.

Note: S256 and S512 are optional accessories.

Meer informatie
Art.nr.
I-8411
Fabrikant
ICPDAS
Systeem
CPU 80188 or compatible (8-bit and 40 MHz)
SRAM 512 KB
Flash 512 KB
EEPROM 2 KB
NVRAM Yes
RTC (Real Time Clock) Yes
Hardware Serial Number Yes
Built-in Watchdog Timer Yes
Communication Ports
COM0 Internal communication with the 87K modules
COM1 RS-232 (to update firmware)
COM2 RS-485
COM3 RS-232/RS-485
COM4 RS-232
Ethernet Port N/A
SMMI
5 Digit LED Display
3 Programmable LED Indicators
4 Push Buttons
I/O Expansion Slots
Slot Number 4
Power
Protection Power reverse polarity protection
3KV Power Isolation N/A
Power Requirement 10 ~ 30 VDC
Power Supply 20 W
Power Consumption 3.9 W
Mechanical
Dimensions (w x l x h) 230 x 110 x 75.5mm
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +85 °C
Humidity 5 ~ 95%,non-condensing
