ICPDAS PAC I-8831

Levertijd:
2~7 dagen
SKU
I-8831

Serial embedded Ethernet controller with 8 I/O slots

● Serial Port-based embedded controller
● Provide multi Serial Port interface on back plane.
● The XServer architecture greatly simplify the programming of TCP/IP protocol.
● Supports the VxComm technique for all ports (Serial Port and Ethernet Port).
● Firmware updated via the RS-232 port
● Ventilated housing designed to operate between –25 °C ~ +75 °C
● Easily mounted on the control box
● Equipped with MiniOS7

The ICPDAS 8000 Series PAC I-8831 is a ethernet embedded controller with 8 I/O slots. It is equipped with MiniOS7, an embedded OS similar to DOS that is developed by ICPDAS Co., LTD.

The MiniOS7 can boot up in a very short time (0.4~0.8 second).It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc.

To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.

The ICPDAS 8000 Series PAC I-8831 is equipped an ethernet port and their back planes are equipped three serial COM Port, they include RS-232 and RS-485 ports and can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. By using S-256 (256 KBytes) or S-512 (512 KBytes) battery backup SRAM, they provide data logger storage function.

Note: S256 and S512 are optional accessories.

Meer informatie
Art.nr.
I-8831
Fabrikant
ICPDAS
Systeem
CPU 80188 or compatible (8-bit and 40 MHz)
SRAM 512 KB
Flash 512 KB
EEPROM 2 KB
NVRAM Yes
RTC (Real Time Clock) Yes
Hardware Serial Number Yes
Built-in Watchdog Timer Yes
Communication Ports
COM0 Internal communication with the 87K modules
COM1 RS-232 (to update firmware)
COM2 N/A
COM3 RS-232/RS-485
COM4 RS-232
Ethernet Port 10BaseT NE2000 compatible
SMMI
5 Digit LED Display
3 Programmable LED Indicators
4 Push Buttons
I/O Expansion Slots
Slot Number 8
Power
Protection Power reverse polarity protection
3KV Power Isolation N/A
Power Requirement 10 ~ 30 VDC
Power Supply 20 W
Power Consumption 5.1 W
Mechanical
Dimensions (w x l x h) 354 x 110 x 75.5mm
Omgeving
Operating Temperature –25 °C ~ +75 °C
Storage Temperature –30 °C ~ +85 °C
Humidity 5 to 95% RH, non-condensing
ICPDAS PAC I-8831 aanpassen
Aantal

* Verplichte velden

Uw configuratie

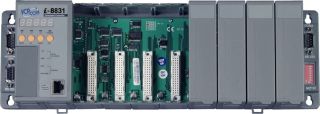

Serial embedded Ethernet controller with 8 I/O slots (Gray Cover)
