Two-channel Isolated CAN / CAN FD Signal Repeater - ICPDAS I-7531-FD-G

Levertijd:
2~7 dagen
SKU
I-7531-FD-G

I-7531-FD-G - Two-channel Isolated CAN / CAN FD Signal Repeater

● Compatible with CAN specification 2.0A and 2.0B and CAN FD
● Fully compatible with the ISO 11898-2 standard
● Maximum communication baud: 8000Kbps
● 2500 Vrms photo coupler isolation on the CAN side
● 3kV galvanic isolation among the power supply and 2 CAN ports
● Jumper for 120Ω terminator resistor of CAN bus



Introduction
The I-7531-FD is a CAN/CAN FD signal repeater, which can connect two or more CAN networks with the same baud rate. Based on the signal repeat function of I-7531-FD, users can use different numbers of I-7531-FD to combine tree-shaped and star-shaped CAN network topology, and when there are too many devices on the CAN network, using I-7531-FD can increase the driving force of the CAN signal to drive more CAN devices. In addition, the CAN side of the I-7531-FD has a digital isolation of 2500 Vrms, and the CAN side and the power side also provide 3000 V DC-DC isolation protection, which can effectively isolate the noise interference between CAN networks ,and achieve protection the purpose of a specific CAN network.

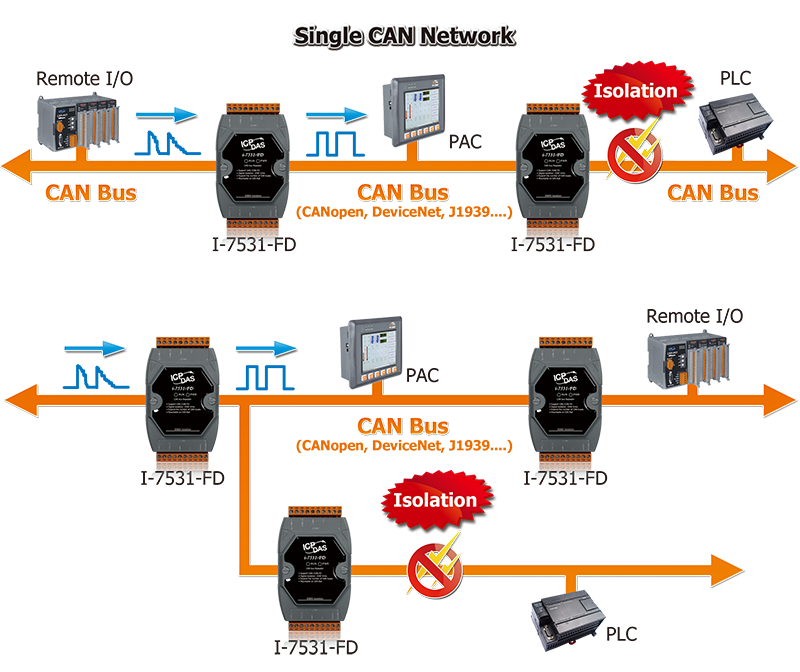

Applications


I-7531-FD-G CR  Two-channel Isolated CAN / CAN FD Signal Repeater (RoHS)

Meer informatie
Art.nr.
I-7531-FD-G
Fabrikant
ICPDAS
CAN Interface
Transceiver NXP 82C250
Channel number 2
Connector 3-pin screwed terminal block (CAN_GND, CAN_L, CAN_H)
Baud Rate (bps) 5k ~ 8000k
Isolation 3000V DC for DC-to-DC, 2500 vrms for photo-couple
Terminator Resistor Jumper for 120Ω terminator resistor
Specification ISO-11898-2, CAN 2.0A and CAN 2.0B
Power
Power Supply Unregulated +10 ~ +30 VDC
Protection Power reverse polarity protection, Overvoltage brownout protection
Power Consumption 2W
Mechanical
Installation DIN-Rail
Dimensions (w x l x h) 72 x 33 x 122mm
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +80 °C
Humidity 5 ~ 95% RH, non-condensing
