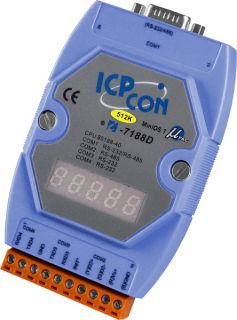

ICPDAS I-7188D

Levertijd:
2~7 dagen
SKU
I-7188D

Embedded controller includes 512K flash, MiniOS7, download utility, download cable and  manual

● 80188-40 embedded CPU
● OS: MiniOS7
● 256K SRAM, 512K Flash
● 2048 Bytes EEPROM
● Built-in RTC, 31Bytes NVRAM
● Built-in 4 channels of COM port
● COM : RS-232, RS-485
● Power / Communication Indicator red LED
● 5-digit 7-segement LED Display



ICPDAS I-7188D is a palm-size PAC that equips a DOS-like OS (MiniOS7). Its software development toolkit is C language compilers that can build 16-bit executable file (*.exe) running on an 80188/80186 CPU. There are two free compilers (Turbo C 2.0 and Turbo C++ 1.01), we suggest users to use the Turbo C++ 1.01.

By the multi-COM port feature, I-7188D can integrate serial devices (for example: barcode reader, card reader, HMI) and use the few onboard I/O points to implement embedded applications.

The ICPDAS I-7188D is for industry applications and can be used to replace PC or PLC devices in harsh environments. The7188D controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.

The controllers can be integrated into an OEM product as a processor core component. By building your product around the ICPDAS I-7188D  controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product.

Depending on the type of embedded firmware programs that are being developed, the ICPDAS I-7188D can be used as a single versatile controller.

Meer informatie
Art.nr.
I-7188D
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Systeem
CPU 80188 (40 MHz)
SRAM 256 KB
Flash 512 KB; Erase unit is one sector (64 KB); 100.000 erase/write cycles.
EEPROM
2048 Bytes (8 block, each block contains 256byte)
Data retention > 100 years; 1.000.000 erase/write cycles
NVRAM 31 Bytes (battery backup, data valid up to 10 year)
RTC (Real Time Clock) Seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079
64-bit Hardware Serial Number No
Build-in Watchdog Timer Yes
Communication Ports
COM1
RS-232 or RS-485 (jumper select(JP1), default is RS-232)
RS-232 (TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, GND)
RS-485 (D1+, D1-)
16 bytes FIFO
COM2 RS-485 (D2+, D2-), 16 bytes FIFO
COM3 RS-232 (TXD3, RXD3, GND), 1 byte FIFO
COM4 RS-232 (TXD4, RXD4, GND); Program download port; Can be used as general purpose RS-232 port, 1 byte FIFO
Speed 115.2K bps max. (for all ports)
Digital Input/Output
Digital Input No
Digital Output No
LED Indicators
5 Digits Seven Segment Display Yes
Red LED Yes
I/O Expansion Bus
No
Power
Protection Power reverse polarity protection
Power Requirement 10 ~ 30 VDC
Power Consumption 3.0 W
Mechanical
Dimensions (l x h x d) 119 x 72 x 33mm
Omgeving
Operating Temperature -25°C to +75°C
Storage Temperature -40°C to +80°C
Humidity 5~90%, non-condensing
