Durabook U11i G3 - Volledig Robuuste Tablet

Levertijd:
Uit voorraad leverbaar
SKU
U11i-G3

● Intel® Core™ i5-1230U vPro™ Processor (i7-1250U vPro™ optioneel)
● 11.6" Full HD DynaVue® Display
● 1000 Nits Sunlight Readable Bonded Display
● Multi Touch of Dual Mode Touch (met Digitizer Pen)
● Exclusieve aanraak technologie (rain/glove/pen)
● Intel® Wi-Fi 6E AX211
● Bluetooth® V5.3
● leverbaar met geïntegreerde 4G LTE
   (5G op project basis)
● leverbaar met geïntegreerde afzonderlijke GPS
● 8MP Camera met flits
● RS232 of Barcode Scanner optie
● Optionee afneembaar toetsenboard met verlichting
● Lichtgewicht, slechts 1.39 kg
● Uitneembare PCIe NVMe SSD opslag module tot 2 TB
● Fanless design
● IP66 Gecertificeerd voor stof en water bescherming
● Mil-STD810H Schok, Val en Trillingen

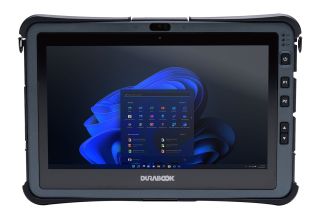

DURABOOK U11i G3
RUGGED TABLET - BUILT FOR ALL. ALL IN ONE

The Durabook U11i is a light, handy and exceptionally configurable high-performance Windows 11 full rugged tablet

Impressive ruggedness

Choosing between mutually exclusive I/O interfaces and devices is a thing of the past. The U11I rugged tablet has it all. It packs an unprecedented number of productivity features within its extremely compact and rugged exterior, including a detachable keyboard and generous space for further feature expansion.

Powered by Intel® 12th generation processors, the Durabook U11I sports a Coolfinity™ fanless and yet versatile expansion design for ultimate functionality. Drop-tested from 6 feet, MIL-STD-810H and MIL-STD-461G certified, optional ANSI C1D2 certified and with an IP66 rating, the U11I is the most reliable 11” tablet for the modern professionals.

SUPERB PERFORMANCE BUILT IN

Running on Intel® 12th Generation CPUs and featuring a unique Coolfinity™ fanless thermal design, the U11I provides the perfect blend of functionality, performance and reliability. Plus, advanced wired and wireless transmission capabilities of Thunderbolt 4, 5G, 4G LTE, Intel® WI-FI 6E and Bluetooth® V5.3 means smooth, congestion-free data processing at all times. For field operatives everywhere, the next generation of rugged mobile solutions has arrived.

QUICK-RELEASE SSD

The U11I features an SSD that’s quick and easy to remove – without having to open any covers – saving you time and effort. Moreover, the tablet is equipped with the latest NVMe PCIe SSD solution and storage capacity up to 2TB, making it the ideal device for those operating in specific industries where security and efficiency are paramount.

EXCEPTIONAL VIEWING EXPERIENCE

The U11I sports an 11.6″ FHD (1920 x 1080) LCD display featuring Durabook’s proprietary DynaVue® sunlight readable technology for exceptional viewing of detail even in direct sunlight. DynaVue® also features 1,000-nit brightness for enhanced viewing clarity. The U11I boasts four advanced touch modes; Glove, Stylus, Water, Finger, with optional digitizer, optimizing use for both indoor and outdoor applications.

LONG-LIFE, HOT-SWAP BATTERY

The U11I is compact yet delivers power and functionality without sacrifice. Equipped with its high-capacity battery you can take advantage of non-stop operation up to 20 hours with a single battery, making the U11I a perfect device for those working outside a traditional office.
Its hot-swappable battery enables workers in the field to operate without interruption when charging isn’t possible.

ROCK-SOLID AND QUIET

Designed specifically for work in extreme environments, the U11I is certified rugged, meeting MIL-STD-810H, able to withstand a 6-foot drop, and tested to an IP66 rating. With its rock-solid design, the U11I is built for endurance, certified with MIL-STD-461G and ANSI/UL C1D2 suitable for use in specified hazardous industries with potentially explosive atmospheres. What’s more, the Coolfinity fanless design with 0 dBA means the U11I operates dependably and quietly.

ENDLESS EXPANSION OPTIONS

U11I can easily be expanded to add functionality or another layer of security via RFID reader, ExpressCard 54, or PCMCIA Type II. The U11I comes optional with an embedded smart card reader and is the only rugged tablet available today with the option of adding a second smart card reader via an expansion module, which is useful for remote workers or those collecting and transferring sensitive data and information.

ONE DEVICE, TWO FORM FACTORS

When flexibility is a key aspect in your work environment, the U11I innovative detachable membrane backlit keyboard is the accessory that can keep pace with your changing working conditions. Whether you need a laptop with full keyboard and complete connectivity, or a tablet for increased mobility, the U11I 2-in-1 solution provides the versatility and functionality you need.

DURABOOK U11i  FULL RUGGED TABLET ANATOMY

Meer informatie
Art.nr.
U11i-G3
Fabrikant
Durabook
Land van herkomst
Taiwan
Operating System
Windows 11 Professional
Rugged Features
■ MIL-STD 810H Altitude-Storage
  Method 500.6, Procedure I, 40000 ft
  Altitude-Operating
  Method 500.6, Procedure II, 40000 ft
  High Temperature-Storage
  Method 501.6, Procedure I, 33°C ~ 71°C
  High Temperature-Operating
  Method 501.6, Procedure II, 60°C
  Low Temperature-Storage
  Method 502.6, Procedure I, - 46°C
  Low Temperature-Operating
  Method 502.6, Procedure II, - 37°C (AC mode)
  Temperature Shock
  Method 503.6, Procedure I, from - 40°C ~ 71°C, 3 cycles
  Rain-Blowing Rain ; Rain Drip
  Method 506.6, Procedure I, total 6 surfaces;
  Method 506.6, Procedure III
  Humidity-Operating
  Method 507.6, Procedure I, relative humidity of 95%,
  Cycel B1, Induced 90 days + Natural 45 days
  Blowing Dust
  Method 510.6, Procedure I, 60°C
  Blowing Sand
  Method 510.6, Procedure II, 60°C
  Explosive Atmosphere
  Method 511.6, Procedure I, 60°C
  Vibration-General Vibration Operating
  Method 514.7, Procedure I, Category 24, Fig. 514.7E-1
  Functional Shock
  Method 516.7, Procedure I, 40G, 11ms
  Method 516.7, Procedure V, 75G, 6ms
  Transit Drop
  Method 516.7, Procedure IV, 26 drops from 72 inch
  height onto 2 inch plywood
  Freeze/Thaw
  Method 524.1, Procedure III
■ Water Sealing IEC 60529 IP-X6
■ Dust Proof IEC 60529 IP-6X
■ MIL-STD 461G Meet MIL-STD-461G: CE102, RE102, CS101, CS114, CS115, CS116, RS103
■ ANSI/ISA 12.12.01(C1D2)
CPU

Intel® Core™ i5-1230U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores)
optional:
Intel® Core™ i7-1250U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores)

Memory

Onboard 8GB up to 32GB (LPDDR4x)

Storage

256GB NVMe PCIe SSD
Optional 512GB/1TB/2TB PCIe SSD
Optional OPAL 2.0 SSD

VGA Controller

Intel® Iris® Xe Graphics

Scherm

11.6” FHD (1920 x1080)
Optional 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
Optional with digitizer
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function

Pointing Device
Capacitive Multi-Touch with user selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Dual Mode (Multi Touch Screen + Digitizer w/pen) optional
Expansion Slots
Optional PCMCIA Type II or ExpressCard 54 or LF/HF-RFID (NFC) or 2nd smart card reader
Memory Card Reader
microSD card (microSDHC, microSDXC) x 1
Smart Card Reader
Optional Smart Card Reader and 2nd Smart Card Reader
I/O Ports

Thunderbolt 4 x 1
USB 3.2 Gen1 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDHC, microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 1
Docking connector (20-pin Pogo) x 1
Nano SIM card x 1
DC-In jack x 1
Optional smart card reader x 1 or x 2
Optional USB 3.2 Gen2 (type C) x 1
Optional 2nd USB 3.2 Gen1 (type A) x 1
Optional USB 2.0 (type A) x 1
Optional serial port (RS232, 422 and 485 : D-sub,9-pin) x 1
Optional 1D/2D barcode reader x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN

Communication Interface
Integrated 10/100/1000 Ethernet Intel® Wi-Fi 6E AX211 (802.11ax)
Bluetooth® V5.3
Optional dedicated GPS module (UBLOX-NEO-M9N)
Optional 4G LTE multi-carrier mobile broadband
Optional 5G (project based)
Optional RF antenna pass-through for GPS, WWAN, and WLAN
Beveiliging

Intel® vPro™ Technology
Secured-core PC
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Stealth mode
Kensington lock
Optional smart card reader x 1 or x 2
Optional Windows Hello
Optional night vision mode
Optional fingerprint scanner
Optional LF/HF-RFID (NFC) reader

Power

AC adapter: 100-240V, 50Hz-60Hz, 65W
Main battery: Li-Ion, 7.6V, 4800mAh, 10 hours
Optional hi-cap battery Li-Ion 7.6V, 9600mAh, 20 hours
Optional bridge battery: 5 minutes swap time

Dimensions & Weight
317mm x 215 mm x 24 mm
Weight: 1.39 kg (weight may vary depending on configuration)
Environmental Spec
■ MIL-STD 810H Altitude-Storage
  Method 500.6, Procedure I, 40000 ft
  Altitude-Operating
  Method 500.6, Procedure II, 40000 ft
  High Temperature-Storage
  Method 501.6, Procedure I, 33°C ~ 71°C
  High Temperature-Operating
  Method 501.6, Procedure II, 60°C
  Low Temperature-Storage
  Method 502.6, Procedure I, - 46°C
  Low Temperature-Operating
  Method 502.6, Procedure II, - 37°C (AC mode)
  Temperature Shock
  Method 503.6, Procedure I, from - 40°C ~ 71°C, 3 cycles
  Rain-Blowing Rain ; Rain Drip
  Method 506.6, Procedure I, total 6 surfaces;
  Method 506.6, Procedure III
  Humidity-Operating
  Method 507.6, Procedure I, relative humidity of 95%,
  Cycel B1, Induced 90 days + Natural 45 days
  Blowing Dust
  Method 510.6, Procedure I, 60°C
  Blowing Sand
  Method 510.6, Procedure II, 60°C
  Explosive Atmosphere
  Method 511.6, Procedure I, 60°C
  Vibration-General Vibration Operating
  Method 514.7, Procedure I, Category 24, Fig. 514.7E-1
  Functional Shock
  Method 516.7, Procedure I, 40G, 11ms
  Method 516.7, Procedure V, 75G, 6ms
  Transit Drop
  Method 516.7, Procedure IV, 26 drops from 72 inch
  height onto 2 inch plywood
  Freeze/Thaw
  Method 524.1, Procedure III
■ Water Sealing IEC 60529 IP-X6
■ Dust Proof IEC 60529 IP-6X
■ MIL-STD 461G Meet MIL-STD-461G: CE102, RE102, CS101, CS114, CS115, CS116, RS103
■ ANSI/ISA 12.12.01(C1D2)
