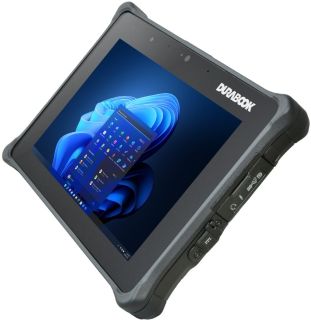

DURABOOK R8 Tablet, Extreme Power, Ultra Compact.

Levertijd:
8~12 Weken
SKU
R8

● 12th Gen. Intel® Core™ i5 / i7 vPro Processor
● up to 16GB (LPDDR4x) memory
● Intel® Iris® Xe Graphics
● 8.1" Wide View (1280x800) Display
● 800 nits DynaVue® Sunlight Readable Bonded Display
● Capacitive Multi Touch
● User selectable touch mode for Finger/Water, Glove, or Stylus
● Dual Mode (digitizer) optional
● Available with integrated 4G/LTE + GPS
● 1D/2D Barcode Scanner (Optional)
● Smart Card Reader (Optional)
● Windows 10 / 11 Professional
● Ultra Light 0.86 kg
● IP66 Dust and Water Protection
● Mil-STD810H Shock, Drop and Vibration

DURABOOK R8 Tablet - 8 inch fully rugged tablet

Extreme Power, Ultra Compact.


Combining the mobility and flexibility of its pocketable form with a business-focused design, the R8 fully rugged tablet offers a unique combination of revolutionary computing power, rugged features and high portability to withstand the most challenging environments. Powered by Intel® 12th Generation processors, it is designed for professional operations close to the edge, where it is needed most. R8 features an 8” LCD display with Durabook’s proprietary DynaVue® technology for an exceptional viewing experience even in direct sunlight.
Weighing in at just 0.86kg, the Durabook R8 sports a fanless and yet versatile expansion design for ultimate functionality. Its IP66 rating, six-feet drop resistance, MIL-STD 810H and ANSI/UL C1D2 certifications make the R8 more rugged than other comparable devices on the market, making it the most reliable mobile device to support digital and remote operations for all kind of professional applications.

REVOLUTIONARY COMPUTING PERFORMANCE


Equipped with the latest Intel® 12th Generation processors with Intel® Iris® Xe graphics, the R8 rugged tablet targets mobile workers of all kinds seeking superior performance in a compact, lightweight form. With unprecedented new computing power of Intel® Core™ and Pentium® Gold CPUs, the R8 is enhanced to cater for congested data processing and offers multi-tasking without compromise.
Plus, the high-speed data transmission capability of Thunderbolt™ 4, Intel® Wi-Fi 6E and Bluetooth® V5.2 elevate exceptional connectivity even further to support ease of use.

COMPACT-SIZED YET FANLESS


Small enough to fit in the palm of your hand, the R8 is easy to carry and easy to wear. Featuring a unique fanless design, the R8 weighs just 0.86 kg (1.9 lbs) making it the most compact, comprehensive 8″ tablet on the market. In addition, the R8’s smooth, streamlined exterior complements its rugged image for extra appeal.

UNRIVALED VIEWING QUALITY


The R8 features an 8” LCD (1280 x 800) display with Durabook’s proprietary DynaVue® technology up to 800 nits for exceptional viewing even in direct sunlight. It can be used in landscape and portrait modes so users can view applications in an orientation that best suits their needs.
Equipped with a 10-point capacitive multi-touch panel with four advanced touch modes, workers can choose their preferred data input mode: a finger, with glove or a stylus for more precision. Plus, every input mode works regardless of work conditions, even if the display is wet.

ROCK-SOLID DESIGN


The robust design of the R8 tablet equips field operatives with the confidence to do their jobs in even the harshest environments and successfully undertake outdoor tasks with a heavy workload.
Drop-tested from 6 feet, MIL-STD-810H and MIL-STD-461G certified, optional ANSI C1D2 certified and with an IP66 rating for maximum protection against dust, dirt, and water ingress, the R8 is the most reliable 8” mobile device to support digital and remote operations for today’s professionals

VERSATILE FUNCTIONALITY


Thanks to its unique design for diverse applications and scenarios, the R8 offers ultimate functionality with its boundless customization capabilities. It features numerous integrated expansion modules for multiple ways to retrieve and transmit information on the move. Optional add-ons include a barcode reader, smart card reader, RFID (NFC) reader, magnet stripe reader, serial port, RJ-45 port and additional USB 3.2 ports.
A 2MP front camera, Wi-Fi 6E and Bluetooth® V5.2, optional 8MP rear camera and optional GPS and 4G LTE multi-carrier mobile broadband also are features for this versatile tablet.

LONG-LASTING POWER


With sustained battery power in mind, the R8 can operate for 8 hours on its replaceable main battery, ensuring professional operatives remain productive in the field. For those who need to work longer, a high-capacity battery with up to 16-hours battery life and bridge battery are available as options, enabling professional workers to use the tablet across several shifts without having to stop and charge.

R8 TABLET ANATOMY

Meer informatie
Art.nr.
R8
Fabrikant
Durabook
Land van herkomst
Taiwan
Operating System

Windows 10 Professional

Windows 11 Professional

Rugged Features

MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
ANSI/ISA 12.12.01-2000, Class I, Division 2
6′ drop 26 faces
IP 66 certified

CPU

Intel® Core™ i7-1250U (12th Gen) Processor with vPro™
(12M Cache, up to 4.7 GHz, 2P+8E cores)

Intel® Core™ i5-1230U (12th Gen) Processor with vPro™
(12M Cache, up to 4.4 GHz, 2P+8E cores)

Intel® Pentium® Gold Processor 8500 (8M Cache, up to 4.4 GHz, 1P+4E cores)

Memory

8GB up to 16GB (LPDDR4)

Storage

128GB NVMe PCIe SSD
Optional 512GB/1TB PCIe SSD

VGA Controller

 Intel® Iris® Xe Graphics

Scherm

8.0” LCD (1280 x 800)
800 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
optional with digitizer

X Bay

Expansion Slot:
Optional magnetic stripe reader
or
Optional smart card reader with LF/HF-RFID (NFC)
or
UHF-RFID (NFC)
or
RS232/RJ45/USB 3.2 Gen1 (type A)

Pointing Device

capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
optional with digitizer

Expansion Slots

microSD card (microSDXC) x 1

Memory Card Reader

microSD card (microSDXC) x 1
nano SIM card slot

Smart Card Reader

Optional expansion module with Smart Card Reader / CAC Reader

I/O Ports

Thunderbolt 4 x 1
USB 3.2 Gen2 (type C) x 1 (support DP)
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
Docking connector (20-pin Pogo) x 1
Nano SIM card x 1
DC-In jack x 1
Optional RF antenna pass-through for GPS, WWAN and WLAN

Option port:
Optional USB 3.2 Gen1 (type A) x 1
or
Optional 10/100/1000 Ethernet (RJ45) x 1
or
Optional serial port (RS232) x 1
or
Optional 1D/2D barcode reader x 1



Communication Interface
Intel® Wi-Fi 6E AX211 (802.11 ax)
Bluetooth® V5.2
Optional GPS and 4G LTE multi-carrier mobile broadband
Optional RF antenna pass-through for GPS, WWAN and WLAN
Beveiliging

ntel® vPro™ Technology (per CPU options)
TPM 2.0
NIST BIOS compliant
Stealth mode
Night vision mode
Optional smart card reader or LF/HF-RFID (NFC) reader or Optional UHF-RFID (NFC) reader

Power

AC adapter : 100-240V, 50Hz-60Hz, 65W
Main battery Li-Ion, 3.8V, 3600mAh, up to 8 hours
Optional long life battery Li-Ion 3.8V, 7200mAh, up to 16 hours
Optional swappable battery: 5 minutes swap time

Dimensions & Weight
227 mm (L) x 150 mm (W) x 20,5 mm (H) 0.86 kg
Environmental Spec

MIL-STD-810H certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity)
MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
ANSI/UL 121201, Class I, Division 2
6′ drop 26 faces
IP 66 certified
Aluminum-magnesium alloy chassis
Port covers
Sunlight readable display
Optional swappable battery technology
