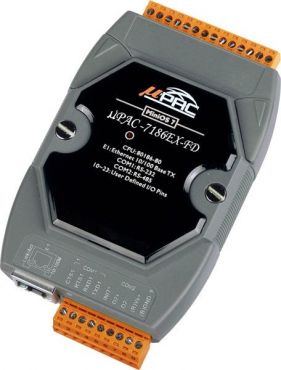

ICPDAS μPAC-7186EXD-FD

Levertijd:
2~7 dagen
SKU
μPAC-7186EXD-FD

Palm-size μPAC with 7-segment LED Display (80MHz CPU, 10/100 Ethernet, 512K SRAM, 512K Flash and 64MB Flash Disk, RS-232 x1, RS-485 x1)

● High reliability in harsh environment
● Embedded MiniOS7, anti-virus
● Built-in watchdog timer (WDT)
● Ethernet Protocols: TCP, UDP, IP, ICMP, ARP
● Faster 10/100M Ethernet port
● Modbus Protocols
● Free easy-to-use software development toolkits for your applications
● Expansion Bus Interface
● Remote/Web Configuration/Maintenance
● Support for Virtual COM technology

μPAC-7186E is our new generation of palm-size PAC. It equips a more power full CPU (upgraded from 40M Hz to 80M Hz) and a faster Ethernet port (upgraded from 10 Base-T to 10/100 Base-TX).

Compared with I-7188E series, μPAC-7186E’s computing speed is up to 4 times faster. And there are more memory configuration choices to select from.





ICPDAS μPAC-7186EXD-FD, a palm-sized programmable automation controller, features data logging, I/O control as well as various COM ports, such as Ethernet, RS-232 and RS-485. At the same time, ICP DAS also provides easy-to-use software development tool kits (Xserver, VxComm, Modbus libraries). By taking advantage of them, your serial devices are easily able to be integrated with ICPDAS μPAC-7186EXD-FD, and furthermore, enjoy the ability of Ethernet!? Through the standard Modbus protocol, μPAC-7186EXD-FD also seamlessly works with SCADA software, like Indusoft, ISaGRAF, DasyLab, Trace Mode, Citect, iFix, etc.



For the hardware, it supports an I/O expansion bus. By pairing the I/O expansion bus with different kinds of X-boards, various I/O functions can be performed, such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, ASIC key and so on. From now on, there are more than 50 X-boards available for ICPDAS μPAC-7186EXD-FD. Come on, and choose one of them to make your project outdoing others! * One X-board for the I/O expansion bus at one time.



Compared to μPAC-7186EXD, μPAC-7186EXD-FD equips with an extra 64MB flash memory. By using the built-in MFS (MiniOS7 File System) library, you can freely read/write files from/to the 64MB flash memory.
Simply with the μPAC-786EX-FD, many kinds of data-logging applications become a piece of cake! For example, log analog signals with timeline, or log RS-232/485 data for further analysis.

Meer informatie
Art.nr.
μPAC-7186EXD-FD
Fabrikant
ICPDAS
Systeem
CPU 80186 or compatible (16-bit and 80 MHz)
SRAM 512 KB
Flash 512 KB; Erase unit is one sector (64K bytes); 100.000 erase/write cycles.
Flash Disk
64M x 8 Bit
Data retention: 10 years; 100.000 erase/write cycles.
EEPROM
16 KB
Data retention: 40 years; 1.000.000 erase/write cycles.
NVRAM 31 Bytes (battery backup, data valid up to 10 years)
RTC (Real Time Clock) RTC Provide seconds, minutes, hours, date of week/month; month and year, valid from 1980 to 2079
64-bit Hardware Serial Number Yes
Built-in Watchdog Timer Yes (0.8 second)
Communication Ports
COM1 RS-232 (TxD, RxD, CTS, RTS and GND); Non-isolated
COM2 RS-485 (D2+, D2-; self-tuner ASIC inside); Non-isolated
Ethernet Port
10/100Base-TX Ethernet Controller
(Auto-negotiating, Auto_MDIX, LED indicator)
COM Port Formats
Data Bit 7, 8
Parity Even, Odd, None
Stop Bit 1
LED Indicators
5-Digit 7 Segment LED Display Yes
System LED Indicator Yes
Hardware Expansion
I/O Expansion Bus Yes
User Defined I/O Pins 14 pins
Power
Protection Power reverse polarity protection
Frame Ground for ESD Protection Yes
Required Supply Voltage +10 ~ +30 VDC (non-regulated)
Power Consumption 3.0 W
Mechanical
Dimensions (w x h x d) 72 x 123 x 35mm
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +80 °C
Humidity 5 ~ 90% RH, non-condensing
