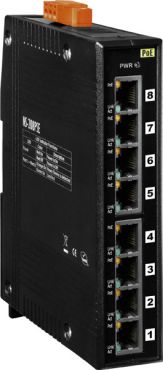

ICPDAS NSM-208PSE - Unmanaged 8-Port Industrial 10/100 Mbps PoE(PSE) Ethernet Switch with Metal Casing

Levertijd:
2~7 dagen
SKU
NSM-208PSE

● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 8 PoE ports with Power Sourcing Equipment (PSE) operation
● Auto-detection of PD (powered devices) and automatic power management
● Over-temperature, over-current and over/under-voltage detection
● Supports operating temperatures from –40 ~ +75°C
● DIN-Rail Mountable
● "-R" stands for products with conformal coating protection



The NSM-208PSE is an 8-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switch, it supports 8 PoE ports which are classified as power source equipments (PSE).

The NSM-208PSE makes centralized power supply come true and provides up to 15.4 watts of power per port. The NSM-208PSE can be used to power IEEE802.3af compliant powered devices (PD) by Ethernet cable and eliminates the need for additional power wiring.

Meer informatie
Art.nr.
NSM-208PSE
Fabrikant
ICPDAS
Technology
Standards IEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet)
Processing Type Store & forward, wire speed switching
MAC Addresses 1024
Memory Bandwidth 3.2 Gbps
Frame Buffer Memory 512 Kbit
Flow Control IEEE802.3x flow control, back pressure flow control
Interface
RJ-45 Ports 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection
LED Indicators Power, Link/Act , Power Device is detected
Ethernet Isolation 1500 Vrms 1 minute
±6 kV EMS Protection Yes
Power Input
Input Voltage Range +46 ~ +55 VDC for PoE output
Power Consumption 0.1 A@ 48 VDC without PD loading; 2.8 A@ 48 VDC with PD full loading
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 3-pin Removable Terminal Block
PoE Output
PoE Compliance 100% IEEE 802.3af compliant
PoE Classification PSE (Power Sourcing Equipment)
PoE Voltage +46 ~ +55 VDC depending on power input
PoE Power Up to 15.4 watts per channel
PoE Operation Automatic detection and power management
Mechanical
Casing Metal (IP30 Protection)
Dimensions (w x l x h) 25 x 168 x 119mm
Installation DIN-Rail Mounting
Environmental
Operating Temperature -40 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 10% ~ 90% RH, non-condensing
Mijn vraag gaat over: ICPDAS NSM-208PSE - Unmanaged 8-Port Industrial 10/100 Mbps PoE(PSE) Ethernet Switch with Metal Casing

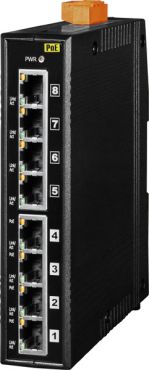

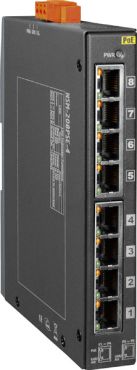

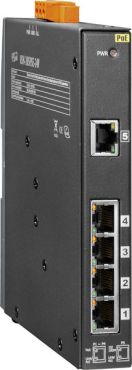

U bent wellicht ook geïnteresseerd in de volgende producten:
