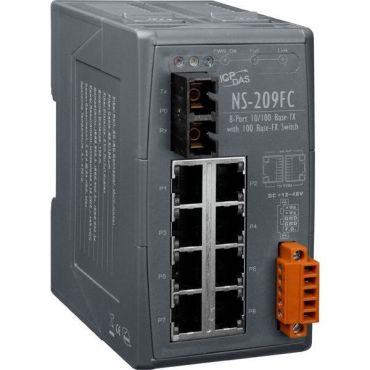

ICPDAS NS-209FCS

Levertijd:
2~7 dagen
SKU
NS-209FCS

Unmanaged 8-Port Industrial 10/100 Base-T to 100 Base-FX Fiber Optics Converter



● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2 Gbps high performance memory bandwidth
● Integrated look-up engine with dedicated 1 K unicast MAC addresses
● Supports +10~+30Vdc voltage
● Supports operating temperatures from 0 °C ~ +70 °C
● DIN-Rail mountable for industrial usage



The NS-209FCS (SC Connector; Single-mode) is a Unmanaged 8-Port Industrial Ethernet (10/100Base-TX) to Fiber Optics (100Base-FX) converter that secures data transmission by using fiber optic transmission to provide immunity from EMI/RFI interference. It is used Ethernet for transmitting a signal up to 15 Km, and is the perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion

The NS-209FCS operates at full duplex mode. In full duplex mode, range is 15km with 8.3/125, 8.7/125, 9/125 or 10/125 μm fiber cables.

The Ethernet supports 10/ 100M auto-negotiation feature and auto MDI /MDIX function.

Meer informatie
Art.nr.
NS-209FCS
Fabrikant
ICPDAS
Technology
Standards IEEE802.3, 802.3u, 802.3x
Processing Type Store & forward wire speed switching - no delays
MAC Addresses 1024
Memory Bandwidth 3.2 Gbps
Flow Control IEEE802.3x flow control, back pressure flow control
Interface
RJ45 port 10/100BaseT(X) auto negotiation speed, F/H duplex mode,
and auto MDI/MDIX connection
Fiber Optic port 100 Base-FX(Single-mode; SC connector)
LED Indicators 10/100M, Link/Act, Full duplex/Half duplex(Fiber Port)
Ethernet Isolation 1500Vrms 1 minute
Frame Ground for EMS Protection Yes
Fiber Optic
Single-mode fiber cables:8.3/125, 8.7/125, 9/125 or 10/125 μm
Distance: 15 km, (9/125 μm recommended) for full duplex
Wavelength : 1300 or 1310nm
Min. TX Output:- 15 dBm
Max. TX Output: -8 dBm
RX Sensitivity: -36 to -31 dBm
Ethernet Transmission distance
Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Power
Input Voltage Range +10 ~ +30 VDC (Non-isolation)
Power consumption 0.17A@24VDC, ± 5% arrowed with 100M Full duplex
LED Indicator Yes
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 5-Pin Removable Terminal Block
Mechanical
Case Plastic
Flammability UL 94V-0
Dimensions (w x h x d) 64 x 110 x 98mm
Installation DIN-Rail Mounting
Environmental
Operating Temperature 0 °C ~ +70 °C
Storage Temperature -20 °C ~ +85 °C
Humidity 10 ~ 90% non-condensing
