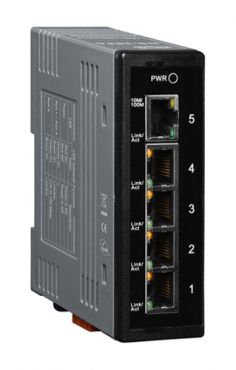

ICPDAS Unmanaged 5-Port Industrial Switch NS-205

Levertijd:
Uit voorraad leverbaar
SKU
NS-205

Unmanaged 5-Port Industrial Ethernet Switch

● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● Integrated look-up engine with dedicated 1024 unicast MAC addresses
● MTBF = 438.000 hours( Temperature is 25 °)
● Supports +10 ~ +30 VDC voltage input
Reverse Polarity Protection
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail Mountable

The NS-205 has 5 Ethernet Switching ports that support 10/100 Base-TX, with a 10/100M auto-negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated. There is activity/link/data rate LEDs for each port to aid trouble-shooting. Port connectors are shielded RJ-45.It contains "soft start" function with overload protection, high-low voltage protection. The width of the NS-205 is just 33mm, so it can be used where space is important.

Meer informatie
Art.nr.
NS-205
Fabrikant
ICPDAS
Technology
Standards IEEE802.3, 802.3u, 802.3x
Processing Type Store & forward, wire speed switching
MAC Addresses 1024
Memory Bandwidth 1.4 Gbps
Frame Buffer Memory 256 Kbit
Flow Control IEEE802.3x flow control, back pressure flow control
Interface
RJ45 ports 10/100 BaseTX auto negotiation speed, F/H duplex mode,
and auto MDI/MDI-X connection
LED Indicators Power, 10/100M, Link/Act
Ethernet Isolation 1500 Vrms 1 minute
Frame Ground for EMS Protection Yes
Cable
Ethernet : 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100 Ω
Fast Ethernet : 2-pair UTP/STP Cat. 5, EIA/TIA-568 100 Ω
Power
Input Voltage Range +10 ~ +30 VDC (Non-isolation)
Power Consumption
0.1 A@24 VDC, ±5% arrowed with 10 M Full duplex.
0.09 A@24 VDC, ±5% arrowed with 100 M Full duplex
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 3-Pin Removable Terminal Block
Mechanical
Casing Plastic
Flammability UL 94V-0
Dimensions (w x l x d) 33 x 78 x 107mm
Installation DIN-Rail Mounting
Environmental
Operating Temperature -40 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 10 ~ 90% HR, non-condensing
