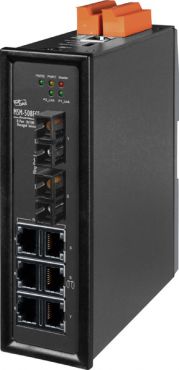

ICPDAS MSM-508FT-T
Levertijd:
2~7 dagen
SKU
MSM-508FT-T
6-Port 10/100 Base-T + 2-Port 100 Base-FX Fiber Managed Switch with metal case (Multi Mode, ST connector)
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 1 Mbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses
● Redundant Power Inputs +12 ~ +48 VDC
Power failure alarm by relay output
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail mount and screw hole for wall mounting kit
The ICPDAS Industrial Switch MSM-508FT-T is an 8-Port Industrial Ethernet Layer 2 Managed Switch with 2-Port Fiber (SC Connector; Multi-mode) that secures data transmission by using fiber optics transmission to provide immunity from EMI/RFI interference. It is used Ethernet for transmitting a signal up to 2 Km, and is the perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion.
Fiber port of ICPDAS Industrial Switch MSM-508FT-T operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125μm fiber cables; in half duplex mode, range is 412m with 62.5/ 125μm fiber cables. The Ethernet port of MSM-508FC supports 10/ 100M auto-negotiation feature and auto MDI /MDIX function.
IICPDAS Industrial Switch MSM-508FT-T can be managed through RS-232 port via serial console or Ethernet port using telnet or Web browser. In addition, the switch supports a lot of powerful managed functions, such as 802.1Q Tag-based VLAN, Port-based VLAN, 802.1p QoS (Quality of Service), Port Trunking, Spanning Tree, Cable Testing and Port Mirroring. Built-in ICP DAS Cyber-Ring technique that enable multiple switches to be placed into a redundant ring. The switch detects and recovers from a fiber or copper link failure within approximately 50ms – for the majority of applications a seamless process. Modbus/TCP, Modbus/RTU and OPC supported, SCADA application can monitor status of Ethernet and fiber port with Modbus or OPC protocol.
ICPDAS Industrial Switch MSM-508FT-T provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the MSM-508FC's power needs. And, the relay output facility can deliver warning signal while dual power or network link failure.an deliver warning signal while dual power or network link failure.
Meer informatie
Art.nr.
MSM-508FT-T
Fabrikant
ICPDAS
Technology
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3x |
| Processing Type | Store & forward wire speed switching - no delays |
| MAC addresses supported | 2K |
| Memory Bandwidth | 3.2 Gbps |
| Flow Control | IEEE802.3x flow control, back pressure flow control |
| Redundant strategy | STP, Ring(ICP DAS) |
| Protocol | VLAN, QoS, Port Trunk, SMTP, TELNET, SNMP |
Interface
| RJ45 port | 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDIX connection |
||||||
| Fiber Optics Port | 100 Base-FX (Multi-mode; SC connector) | ||||||
| LED Indicators | 10/100M, Link/Act/Backup, Full duplex/Half duplex (Fiber Port) | ||||||
| Ethernet Isolation | 1500Vrms 1 minute | ||||||
| Frame Ground for EMS Protection | Yes | ||||||
| Ethernet Transmission Distance |
|
||||||
| Fiber Optic Transmission Distance |
|
||||||
| Ethernet Cables |
|
||||||
| Management interface | Console, DIP/Rotary Switch | ||||||
| Alarm output | Relay |
Digital Input/Output
>
Power
| Input Voltage Range | +12 ~ +48 VDC (Non-isolation redundant input) |
| Power Input isolation | 1KV |
| Alarm Contact | One relay output with current carrying capacity of 2A @ 30 VDC |
| Power consumption | 0.3 A@24 VDC (±5%, arrowed) |
| Protection | Power reverse polarity protection |
| Frame Ground for EMS Protection | Yes |
| Connection | 7-Pin Removable Terminal Block |
Mechanical
| Case | Plastic |
| Flammability | UL 94V-0 |
| Dimensions (w x h x d) | 64 x 110 x 98mm |
| Installation | DIN-Rail or Wall Mounting |
Environmental
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% non-condensing |
Included Cable
CA-090510
