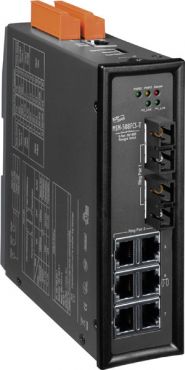

ICPDAS MSM-508FCS-T

Levertijd:
2~7 dagen
SKU
MSM-508FCS-T

6-Port 10/100 Base-T + 2-Port 100 Base-FX Fiber Managed Switch with metal case (Single Mode)



● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex back pressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 1 Mbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses
● Redundant Power Inputs +12 ~ +48VDC
Power failure alarm by relay output
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail mount and screw hole for wall mounting kit



The ICPDAS Industrial Switch MSM-508FCS-T is an 8-Port Industrial Ethernet Layer 2 Managed Switch with 2-Port Fiber (SC Connector; Multi-mode) that secures data transmission by using fiber optics transmission to provide immunity from EMI/RFI interference. It is used Ethernet for transmitting a signal up to 2 Km(6,600 ft), and is the perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion.



Fiber port of ICPDAS Industrial Switch MSM-508FCS-T operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125μm fiber cables; in half duplex mode, range is 412m with 62.5/ 125μm fiber cables. The Ethernet port of MSM-508FC supports 10/ 100M auto-negotiation feature and auto MDI /MDIX function.



ICPDAS Industrial Switch MSM-508FCS-T can be managed through RS-232 port via serial console or Ethernet port using telnet or Web browser. In addition, the switch supports a lot of powerful managed functions, such as 802.1Q Tag-based VLAN, Port-based VLAN, 802.1p QoS (Quality of Service), Port Trunking, Spanning Tree, Cable Testing and Port Mirroring. Built-in ICP DAS Cyber-Ring technique that enable multiple switches to be placed into a redundant ring. The switch detects and recovers from a fiber or copper link failure within approximately 50ms – for the majority of applications a seamless process. Modbus/TCP, Modbus/RTU and OPC supported, SCADA application can monitor status of Ethernet and fiber port with Modbus or OPC protocol.



ICPDAS Industrial Switch MSM-508FCS-T provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the MSM-508FC's power needs. And, the relay output facility can deliver warning signal while dual power or network link failure.an deliver warning signal while dual power or network link failure.

Meer informatie
Art.nr.
MSM-508FCS-T
Fabrikant
ICPDAS
Technology
Standards IEEE 802.3, IEEE 802.3u, IEEE802.3x
Processing Type Store & forward wire speed switching - no delays
MAC addresses supported 2K
Memory Bandwidth 3.2 Gbps
Flow Control IEEE802.3x flow control, back pressure flow control
Redundant strategy STP, Ring (ICP DAS)
Protocol VLAN, QoS, Port Trunk, SMTP, TELNET, SNMP
Interface
RJ45 port 10/100BaseT(X) auto negotiation speed, F/H duplex mode,
and auto MDI/MDIX connection
Fiber Optics Port 100 Base-FX (Multi-mode; SC connector)
LED Indicators 10/100M, Link/Act/Backup, Full duplex/Half duplex (Fiber Port)
Ethernet Isolation 1500Vrms 1 minute
Frame Ground for EMS Protection Yes
Ethernet Transmission Distance
Ethernet: 2-pair UTP/STP Cat.3,4,5, EIA/TIA-568 100-ohm
Fast Ethernet: 2-pair UTP/STP Cat. 5, EIA/TIA-568 100-ohm
Fiber Optic Transmission Distance
Multi-mode fiber cables: 8.3/125, 8.7/125, 9/125 or 10/125 μm
Distance: 15 km, (9/125 μm recommended) for full duplex
Wavelengt: 1300 or 1310nm
Min. TX Output: -15 dBm
Max. TX Output: -8 dBm
RX Sensitivity: Max. -34 dBm
Ethernet Cables
10 Base-T (Cat.3, 4, 5 UTP cable; 100m Max.)
100 Base-TX (Cat.5 UTP cable; 100m Max.)
Management interface Console, DIP/Rotary Switch
Alarm output Relay
Power
Input Voltage Range +12 ~ +48 VDC (Non-isolation redundant input)
Power Input isolation 1KV
Alarm Contact One relay output with current carrying capacity of 2A @ 30 VDC
Power consumption 0.3 A@24 VDC (±5%, arrowed)
Protection Power reverse polarity protection
Frame Ground for EMS Protection Yes
Connection 7-Pin Removable Terminal Block
Mechanical
Case Plastic
Flammability UL 94V-0
Dimensions (w x h x d) 64 x 110 x 98mm
Installation DIN-Rail or Wall Mounting
Environmental
Operating Temperature -40 °C ~ +75 °C
Storage Temperature -40 °C ~ +85 °C
Humidity 10% ~ 90% non-condensing

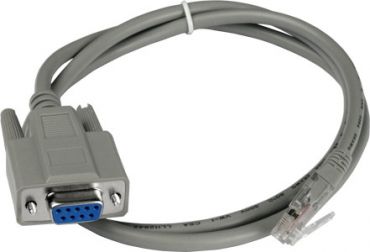

Included Cable
CA-090510
