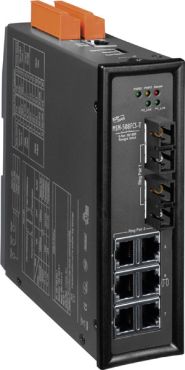

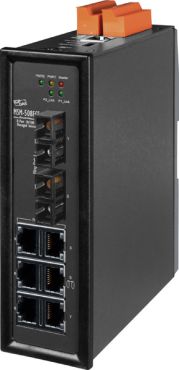

ICPDAS MSM-508FC-T
6-Port 10/100 Base-T + 2-Port 100 Base-FX Fiber Managed Switch with metal case (Multi Mode, SC connector)
● Automatic MDI / MDI-X crossover for plug-and-play
● Each port supports both 10/100 Mbps speed auto negotiation
● Store-and-forward architecture
● Full duplex IEEE 802.3x and half duplex backpressure flow control
● 3.2Gbps high performance memory bandwidth
● Frame buffer memory: 1 Mbit
● Integrated look-up engine with dedicated 2 K unicast MAC addresses
● Redundant Power Inputs +12 ~ +48VDC
Power failure alarm by relay output
● Supports operating temperatures from -40 °C ~ +75 °C
● DIN-Rail mount and screw hole for wall mounting kit
The ICPDAS Industrial Switch MSM-508FC is an 8-Port Industrial Ethernet Layer 2 Managed Switch with 2-Port Fiber (SC Connector; Multi-mode) that secures data transmission by using fiber optics transmission to provide immunity from EMI/RFI interference. It is used Ethernet for transmitting a signal up to 2 Km(6,600 ft), and is the perfect solution for applications where transmission must be protected from electrical exposure, surges, lightning or chemical corrosion.
Fiber port of ICPDAS Industrial Switch MSM-508FC operates at either half or full duplex mode. In full duplex mode, range is 2km with 62.5/ 125μm fiber cables; in half duplex mode, range is 412m with 62.5/ 125μm fiber cables. The Ethernet port of ICPDAS Industrial Switch MSM-508FC supports 10/ 100M auto-negotiation feature and auto MDI /MDIX function.
ICPDAS Industrial Switch MSM-508FC can be managed through RS-232 port via serial console or Ethernet port using telnet or Web browser. In addition, the switch supports a lot of powerful managed functions, such as 802.1Q Tag-based VLAN, Port-based VLAN, 802.1p QoS (Quality of Service), Port Trunking, Spanning Tree, Cable Testing and Port Mirroring. Built-in ICP DAS Cyber-Ring technique that enable multiple switches to be placed into a redundant ring. The switch detects and recovers from a fiber or copper link failure within approximately 50ms – for the majority of applications a seamless process. Modbus/TCP, Modbus/RTU and OPC supported, SCADA application can monitor status of Ethernet and fiber port with Modbus or OPC protocol.
ICPDAS Industrial Switch MSM-508FC provides two power inputs that can be connected simultaneously to live DC power sources. If one of the power inputs fails, the other live source acts as a backup to automatically support the MSM-508FC's power needs. And, the relay output facility can deliver warning signal while dual power or network link failure.an deliver warning signal while dual power or network link failure.
