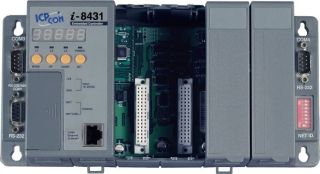

ICPDAS PAC I-8431
Serial embedded Ethernet controller with 4 I/O slots
● Serial Port-based embedded controller
● Provide multi Serial Port interface on back plane.
● The XServer architecture greatly simplify the programming of TCP/IP protocol.
● Supports the VxComm technique for all ports (Serial Port and Ethernet Port).
● Firmware updated via the RS-232 port
● Ventilated housing designed to operate between –25 °C ~ +75 °C
● Easily mounted on the control box
● Equipped with MiniOS7

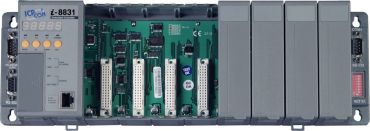

The ICPDAS 8000 Series PAC I-8431 are ethernet embedded controller with 4/8 I/O slots. It is equipped with MiniOS7, an embedded OS similar to DOS that is developed by ICPDAS Co., LTD.
The MiniOS7 can boot up in a very short time (0.4~0.8 second).It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc.
To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.
TheICPDAS 8000 Series PAC I-8431 is equipped an ethernet port and their back planes are equipped three serial COM Port, they include RS-232 and RS-485 ports and can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation. By using S-256 (256 KBytes) or S-512 (512 KBytes) battery backup SRAM, they provide data logger storage function.
Note: S256 and S512 are optional accessories.
|CPU||80188 or compatible (8-bit and 40 MHz)|
|RTC (Real Time Clock)||Yes|
|Hardware Serial Number||Yes|
|Built-in Watchdog Timer||Yes|
|COM0||Internal communication with the 87K modules|
|COM1||RS-232 (to update firmware)|
|Ethernet Port||10BaseT NE2000 compatible|
|5||Digit LED Display|
|3||Programmable LED Indicators|
|Protection||Power reverse polarity protection|
|3KV Power Isolation||N/A|
|Power Requirement||10 ~ 30 VDC|
|Power Supply||20 W|
|Power Consumption||3.9 W|
|Dimensions (w x l x h)||230 x 110 x 75.5mm|
|Operating Temperature||–25 °C ~ +75 °C|
|Storage Temperature||–30 °C ~ +85 °C|
|Humidity||5 to 95% RH, non-condensing|
