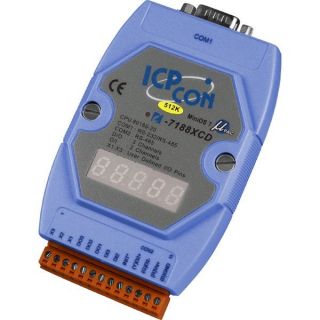

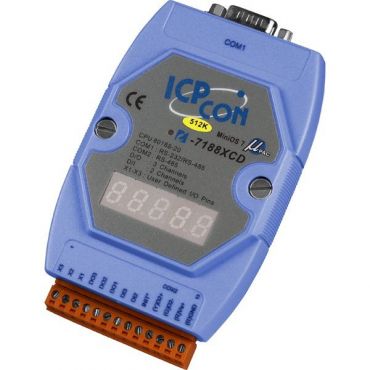

ICPDAS I-7188XC

Levertijd:
2~7 dagen
SKU
I-7188XC

Embedded controller, developing tool kit, 512K Flash,128K SRAM, MiniOS7

● 80188-20 embedded CPU
● OS: MiniOS7
● 128K SRAM, 512K Flash
● Built-in RTC, 31B NVRAM, 2048B EEPROM
● 2 COM ports : RS-232/RS-485, RS-485
● Power / Communication Indicator red LED
● 3 user defined Pins via X-board
● Built-in 2 DI & 3 DO channels

ICPDAS I-7188XC is a palm-size PAC that equips a DOS-like OS (MiniOS7). Its software development toolkit is C language compilers that can build 16-bit executable file (*.exe) running on an 80188/80186 CPU. There are two free compilers (Turbo C 2.0 and Turbo C++ 1.01), we suggest users to use the Turbo C++ 1.01.

By the multi-COM port feature, I-7188XC can integrate serial devices (for example: barcode reader, card reader, HMI) and use the few onboard I/O points to implement embedded applications.

Powerful and Versatile Controller
The ICPDAS I-7188XC is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188XC controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.

The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188XC controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product.

Depending on the type of embedded firmware programs that are being developed, and which I/O Expansion Board, the I-7188XC can be used as a single versatile controller.


I/O Expansion Bus and Expansion Board
The ICPDAS uPAC I-7188XC supports an I/O expansion bus.

The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O, A/D, D/A, Timer/Counter, UART, flash memory, battery backup SRAM, AsicKey & other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus.

The integrated modular design of the expansion board allows a fast, easy, and flexible way of upgrading our controller's capability.

Meer informatie
Art.nr.
I-7188XC
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Systeem
CPU 80188 (20 MHz)
SRAM 128 KB
Flash 512 KB; Erase unit is one sector (64 KB); 100.000 erase/write cycles.
EEPROM
2048 Bytes (8 block, each block contains 256byte)
Data retention > 100 years; 1.000.000 erase/write cycles
NVRAM N/A
RTC (Real Tme Clock) N/A
64-bit Hardware Serial Number N/A
Build-in Watchdog Timer Yes
Communication Ports
COM1
RS-232 or RS-485 (Default is RS-232); Program download port
RS-232 (TXD, RXD, RTS, CTS, GND)
RS-485 (D1+, D1-, self-tuner ASIC inside)
1 byte FIFO
COM2 RS-485 (D2+, D2-, self-tuner ASIC inside),1 byte FIFO
Speed 115.2K bps max. (on all ports)
Digital Input/Output
Digital Input
Channels: 2
Input type: non-isolated
On voltage level: +1 VDC max. (Connect to GND)
Off voltage level: +3.5 V ~ 30 VDC (Open)
Digital Output
Channels: 3
Output type: Open-collector
Output current: 100 mA
Max. load voltage: +30 VDC
LED Indicators
5 Digits Seven Segment Display No
Red LED Yes
I/O Expansion Bus
Yes
Power
Protection Power reverse polarity protection
Power Requirement 10 ~ 30 VDC
Power Consumption 2.0 W
Mechanical
Dimensions (l x h x d) 119 x 72 x 33mm
Omgeving
Operating Temperature -25 °C to +75 °C
Storage Temperature -40 °C to +80 °C
Humidity 5~90%, non-condensing
