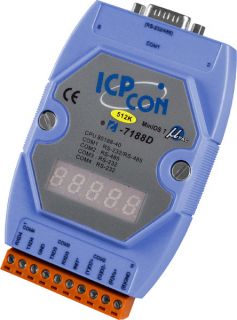

ICPDAS I-7188D
Levertijd:
2~7 dagen
SKU
I-7188D
Embedded controller includes 512K flash, MiniOS7, download utility, download cable and manual
● 80188-40 embedded CPU
● OS: MiniOS7
● 256K SRAM, 512K Flash
● 2048 Bytes EEPROM
● Built-in RTC, 31Bytes NVRAM
● Built-in 4 channels of COM port
● COM : RS-232, RS-485
● Power / Communication Indicator red LED
● 5-digit 7-segement LED Display
ICPDAS I-7188D is a palm-size PAC that equips a DOS-like OS (MiniOS7). Its software development toolkit is C language compilers that can build 16-bit executable file (*.exe) running on an 80188/80186 CPU. There are two free compilers (Turbo C 2.0 and Turbo C++ 1.01), we suggest users to use the Turbo C++ 1.01.
By the multi-COM port feature, I-7188D can integrate serial devices (for example: barcode reader, card reader, HMI) and use the few onboard I/O points to implement embedded applications.
The ICPDAS I-7188D is for industry applications and can be used to replace PC or PLC devices in harsh environments. The7188D controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.
The controllers can be integrated into an OEM product as a processor core component. By building your product around the ICPDAS I-7188D controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product.
Depending on the type of embedded firmware programs that are being developed, the ICPDAS I-7188D can be used as a single versatile controller.
Meer informatie
Art.nr.
I-7188D
Fabrikant
ICPDAS
Land van herkomst
Taiwan
Systeem
| CPU | 80188 (40 MHz) | ||
| SRAM | 256 KB | ||
| Flash | 512 KB; Erase unit is one sector (64 KB); 100.000 erase/write cycles. | ||
| EEPROM |
|
||
| NVRAM | 31 Bytes (battery backup, data valid up to 10 year) | ||
| RTC (Real Time Clock) | Seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079 | ||
| 64-bit Hardware Serial Number | No | ||
| Build-in Watchdog Timer | Yes |
Communication Ports
| COM1 |
|
||||
| COM2 | RS-485 (D2+, D2-), 16 bytes FIFO | ||||
| COM3 | RS-232 (TXD3, RXD3, GND), 1 byte FIFO | ||||
| COM4 | RS-232 (TXD4, RXD4, GND); Program download port; Can be used as general purpose RS-232 port, 1 byte FIFO | ||||
| Speed | 115.2K bps max. (for all ports) |
Digital Input/Output
| Digital Input | No |
| Digital Output | No |
LED Indicators
| 5 Digits Seven Segment Display | Yes |
| Red LED | Yes |
I/O Expansion Bus
No
Power
| Protection | Power reverse polarity protection |
| Power Requirement | 10 ~ 30 VDC |
| Power Consumption | 3.0 W |
Mechanical
| Dimensions (l x h x d) | 119 x 72 x 33mm |
Omgeving
| Operating Temperature | -25°C to +75°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 5~90%, non-condensing |
