EtherWAN

24-port 10/100Base Fast Ethernet Hardened Managed Ethernet Switch with up to 4-port Gigabit

● Complies with NEMA TS1 & TS2 environmental requirements for traffic control equipment
● Complies with IEC61000-6-2 EMC generic standard immunity for industrial environment
● Proprietary "α-ring" support for network redundancy; recovery time <15 ms
● IEEE802.1w RSTP, IEEE802.1S MSTP and IEEE802.1D STP compatible
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking with automatic link fail-over
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web
● Supports IEEE802.1x Security
● Per-port programmable MAC address locking
● Port mirroring
● 8192 MAC addresses and 3 M bits buffer memory
● 1000Mbps-full-duplex, 10/100Mbps-full/halfduplex, auto-negotiation, auto-MDI/MDIX
● -40 °C to +75°C operating temperature range

10-port 10/100Base Fast Ethernet Hardened Managed PoE Ethernet Switch with up to 2-port Gigabit

● Complies with IEC61000-6-2 EMC generic standard immunity for industrial environment
● IEEE 802.3af Power over Ethernet (PoE), 8 or 4 ports
● Supports PoE Power Sourcing Equipment (PSE)
● Proprietary "α-ring" support for network redundancy; recovery time <15 ms
● IEEE802.1w RSTP, IEEE802.1S MSTP and IEEE802.1D STP compatible
● P Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN
● Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking with automatic link fail-over
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, web browser, and TFTP Management
● Supports IEEE802.1x Security
● Per-port programmable MAC address locking
● Port mirroring
● 8192 MAC addresses and 2 M bits buffer memory
● Redundant power inputs with terminal block and DC jack
● -40 °C ~ +75 °C operating temperature range

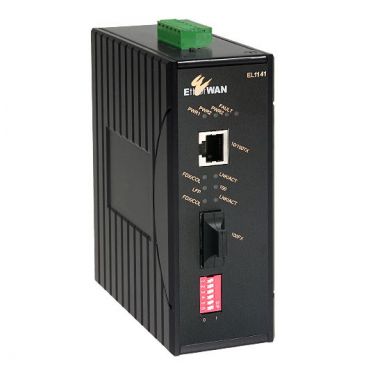

IEC61850/IEEE1613 Hardened 10/100BASE-TX to 100BASE-FX Media Converter

● Complies with IEC61850 EMC and environment requirement, and IEEE1613 standard for substation and power automation
● Complies with EN50121-4 environmental requirement for for railway applications
● Complies with NEMA TS1 & TS2 environmental requirements for traffic control equipment
● DIP switch configuration for "Link-Fault-Pass-Through", link down alarm, speed, duplex mode
● 768K bits buffer memory
● 10/100Mbps-full/half-duplex, auto-negotiation, auto-MDI/MDIX
● Full wire-speed forwarding rate
● Alarms for power and port link failure by relay output
● Redundant power inputs with terminal block and DC jack
● -40°C to 75°C operating temperature range
● Hardened aluminum case
● Supports DIN-rail, panel or rack mounting installation

16-port 10/100Base IEC61850/IEEE1613 Managed Hardened Ethernet Switch with 2-port Combo Gigabit

● Complies with IEC61850-3 & IEEE1613 environmental requirements for power substation automation systems
● Complies with EN50121-4 environmental requirement for railway application
● Complies with IEC61000-6-2 EMC generic standard immunity for industrial environment
● Proprietary "α-ring" support for network redundancy recovery time <15ms
● IEEE802.1w RSTP, IEEE802.1S MSTP and IEEE802.1D STP compatible
● IP multicast filtering through IGMP snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q
● VLAN tagging and GVRP
● IEEE802.1p QoS with four priority queues MAC-based trunking with automatic link fail-over RS-232 console, Telnet, SSL/SSH, SNMP V1& V2c & V3, RMON, Web browser, and TFTP management
● Supports command line interface in RS-232 console
● Supports IEEE802.1x security
● Bandwidth rate control
● Per-port programmable MAC address locking
● Up to 24 static secure MAC addresses per port
● Port mirroring

Managed Hardened 16-port 10/100BASE PoE with 2-port Gigabit combo Ethernet Switch

● Supports PoE Power Sourcing Equipment (PSE)
● PoE control and scheduling
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● DHCP Client/Server
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Managed Hardened 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch

● Certified by NEMA TS2 Environmental requirements for Traffic control equipment
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

IEC61850-3/IEEE1613 Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy and GOOSE Message
● Zero Packet Loss pass by GOOSE Message
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 Console, Telnet, SNMP V1, V2c & V3, RMON, WebBrowser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

IEC61850-3/IEEE1613 Modulized Hardened Managed 24-port 10/100BASE and 4-port Gigabit Ethernet Switch with SFP options

● Complies with IEC61850-3/IEEE1613 for power substations & EN50121-4 for railway applications
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy and GOOSE Message
● Zero Packet Loss pass by GOOSE Message
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 Console, Telnet, SNMP V1, V2c & V3, RMON, WebBrowser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range,tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Industrial Managed 16-port 10/100BASE with 2-port Gigabit combo Ethernet Switch

● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Autonegotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

Managed Hardened 8-port 10/100BASE and 2-port Gigabit Ethernet Switch with SFP options

● Certified by NEMA TS2 Environmental requirements for Traffic control equipment
● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)

Managed Industrial 8-port 10/100BASE and 2-port Gigabit Ethernet Switch with SFP options

● Supports α-ring and RSTP/MSTP/STP for Ethernet redundancy
● IP Multicast Filtering through IGMP Snooping V1, V2 & V3
● Supports port-based VLAN and IEEE802.1Q VLAN Tagging and GVRP
● IEEE802.1p QoS with four priority queues
● MAC-based trunking and LACP
● IEEE802.1x Security
● Bandwidth Rate Control
● Per-port programmable MAC address locking
● Up to 24 Static Secure MAC addresses per port
● Port mirroring
● NTP synchronization
● DHCP Client/Server
● RS-232 console, Telnet, SNMP V1, V2c & V3, RMON, Web Browser, and TFTP Management
● 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto negotiation, Auto-MDI/MDIX
● Full wire-speed forwarding rate
● -10°C to 60°C (-14°F to 140°F) operating temperature range

Unmanaged Hardened 16-port 10/100BASE Ethernet Switch

● Provides 14 10/100BASE-TX ports plus 2 100BASE-FX ports
● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC)
● Alarms for power failure by relay output
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Provides DIN-rail, panel or Rack mounting
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment

Unmanaged Industrial 16-port 10/100BASE Ethernet Switch

● Provides 14 10/100BASE-TX ports plus 2 100BASE-FX ports
● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC)
● Alarms for power failure by relay output
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● Provides DIN-rail, panel or Rack mounting
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment

IEC61850-3/IEEE1613 Unmanaged Hardened 8-port 10/100BASE Ethernet Switch

● Provides flexibility of 4 to 8 10/100BASE-TX ports and 2 100BASE-FX ports
● Supports 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Redundant power inputs (12 - 48VDC) with Terminal Block and DC Jack (12VDC)
● Alarms for power and Link Down failure by relay output
● Supports DIP switch configuration for link down alarm
● -40°C to 75°C (-40°F to 167°F) operating temperature range, tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Provides DIN-rail or panel mounting
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with IEC61850-3 and IEEE1613 Environmental requirements for power substation automation systems
● Complies with EN50121-4 environmental requirement for Railway application

Hardened Web-smart 8-port 10/100BASE High Power PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 8 Ethernet ports that configure incombinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af+Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides DIN-rail, panel or Rack mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● PoE (Power budget Control, PoE status, Port status) through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Hardened Web-Smart 5-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides Wall and Desktop mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● PoE (Power budget Control, PoE status, Port status) through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Industrial Web-Smart 5-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @-20°C to 70°C (-4°F to 158°F)
● Port1-port4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● PoE ports can supports the IEEE802.3af+ standard and power up 30W devices
● Provides Wall and Desktop mounting
● System, IP Configuration, Port-based VLAN and QoS Priority setting through the Web browser Interface
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Web-smart Industrial 5-port 10/100BASE PoE Ethernet Switch

● Provides flexibility of 5 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @-40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides Wall and Desktop mounting
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack

Hardened Unmanaged 8-port 10/100BASE PoE (4 x PoE) Ethernet Switch

● Provides flexibility of 8 Ethernet ports that configure in combinations of copper and fiber optic interfaces
● -40°C to 75°C (-40°F to 167°F) and is tested for functional operation @ -40°C to 85°C (-40°F to 185°F)
● Port1 - 4 support IEEE802.3af Power over Ethernet (PoE) Power Sourcing Equipment (PSE)
● Provides DIN- Rail, Panel, or Rack Mounting
● Alarms for power and port link failure by relay output
● Redundant power inputs with Terminal Block and DC Jack
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
● Complies with NEMA TS2 Environmental requirements for Traffic control equipment
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX

Unmanaged Industrial 5-port 10/100BASE Ethernet Switch

● Provides 5-port 10/100BASE-TX or 4-port 10/100BASE-TX plus 1-port 100BASE-FX
● The fiber port is available with SC or ST with a fiber connection that can reach up to 120Km (74.4miles)
● -10°C to 60°C (-14°F to 140°F) and is tested for functional operation @ -20°C to 70°C (-4°F to 158°F)
● 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
● Supports 12 to 48VDC Power inputs
● Complies with IEC61000-6-2 EMC Generic standard immunity for Industrial environment
