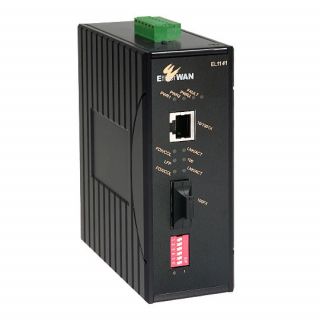

EtherWAN Media Converter EL1141
IEC61850/IEEE1613 Hardened 10/100BASE-TX to 100BASE-FX Media Converter
● Complies with IEC61850 EMC and environment requirement, and IEEE1613 standard for substation and power automation
● Complies with EN50121-4 environmental requirement for for railway applications
● Complies with NEMA TS1 & TS2 environmental requirements for traffic control equipment
● DIP switch configuration for "Link-Fault-Pass-Through", link down alarm, speed, duplex mode
● 768K bits buffer memory
● 10/100Mbps-full/half-duplex, auto-negotiation, auto-MDI/MDIX
● Full wire-speed forwarding rate
● Alarms for power and port link failure by relay output
● Redundant power inputs with terminal block and DC jack
● -40°C to 75°C operating temperature range
● Hardened aluminum case
● Supports DIN-rail, panel or rack mounting installation
The EL1141 Series provides media conversion between 10/100BASE-T and 100BASE-SX-LX Fiber. Built specifically for mission-critical applications in harsh environments, the EL1141's hardened design features high shock and vibration resistance, electrical noise immunity, a wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing.
EL1141 passes IEC61850-3/IEEE1613 certifications and is suitable for power substation applications. With triple power inputs, link down alarming, Link-Fault-Pass-Through and a wide range of fiber connectivity options the EL1141 is the ideal media converter for harsh environments.
EtherWAN – “When Connectivity is Crucial”.
.
Standards | IEEE802.3 10BASE-T, IEEE802.3u 100Base-TX/100Base-FX, IEEE802.3x |
Forward and Filtering Rate | 14,880pps for 10Mbps 148,810pps for 100Mbps |
Packet Buffer Memory | 768K bits |
Processing Type | Store-and-forward Half-duplex back-pressure and IEEE802.3x full-duplex flow control |
Ethernet Port | 10/100Base-TX: 1 port 100Base-FX: 1 port |
LED Indicators | Per unit: power status (power 1, power 2, fault),
Link-Fault-Pass-Through Per port: 10/100TX: link/activity, full-duplex/collision, speed 100FX: link/activity, full-duplex/collision |
Relay Contact | Relay contact rating with current 1A @ 30VDC, 0.5A @ 120VAC |
Input Power | Input voltage: 12 to 48VDC (terminal block) / 12VDC (DC Jack) 2.4W MAX. 0.2A @ 12VDC, 0.05A @ 48VDC |
Overload Current Protection | Present |
Reverse Polarity Protection | Present |
Case | Aluminum case IP30 |
Dimensions (w x h x d) | 50 x 135 x 110mm |
Installation | DIN-Rail (Top hat type 35 mm), panel, rack mounting |
Operating Temperature | -40 °C ~ +75 °C Tested @ -40 °C ~ +85 °C |
Storage Temperature | -40 °C ~ +85 °C |
Humidity | 5% ~ 95% (non-condensing) |
ISO | Manufactured in an ISO9001 facility |
Safety | UL508 |
EMI | FCC Part 15, Class A EN61000-6-4 * EN55022 * EN61000-3-2 * EN61000-3-3 |
EMS | IEC61850-3 & IEEE1613: substation & power automation applications EN50121-4: railway applications EN61000-6-2 EN61000-4-2 (ESD standards) * Contact: ±8 KV; criteria B * Air: ±15 KV; criteria B EN61000-4-3 (radiated RFI standards) * 35 V/m, 80 to 1000 MHz; 80% AM criteria A EN61000-4-4 (burst standards) * Signal ports: ±4 KV; criteria A * D.C. power ports: ±4 KV; criteria A EN61000-4-5 (surge standards) * Signal Ports: ±2 KV; line-to-line; criteria A * D.C. power ports: + / - 2 KV; line-to-earth; criteria A EN61000-4-6 (induced RFI standards) * Signal Ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM criteria A * D.C. power ports: 10 Vrms @ 0.15 ~ 80 MHz; 80% AM criteria A EN61000-4-8 (magnetic field standards) * 1000 A/m @ 50, 60 Hz; criteria A |
Environmental Test Compliance | IEC60068-2-6 Fc (vibration resistance) * 5 g @ 10 ~ 150 KHz, amplitude 0.35 mm (operation/storage/transport) IEC60068-2-27 Ea (shock) * 25 g @ 11 ms (half-sine shock pulse; operation) * 50 g @ 11 ms (half-sine shock pulse; storage/transport) IEC60068-2-32 Ed (free fall) * 1 M (3.281 ft.) |
