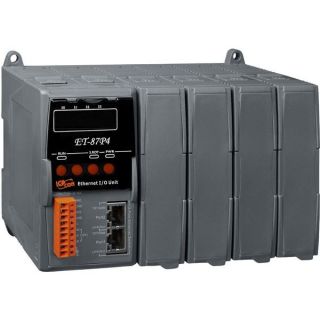

ICPDAS ET-87P4

Levertijd:
2~7 dagen
SKU
ET-87P4

4 slot I/O Expansion Unit (RoHS)

● Two Ethernet Ports for Daisy-Chain Topology
● I/O Module Hot Swap
● Auto Configuration
● LED Indicators for Fault Detection
● Push Buttons to Configure IP Address
● DCON Protocol
● 4 I/O Slots for I-87K Modules
● Operating Temperature: -25 °C ~ +75 °C



ET-87Pn series is a remote intelligent I/O expansion unit to expand I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. It offers two Ethernet switch ports to form a daisy-chain topology. The daisy-chain feature allows ET-87Pn to connect in series to each other or other Ethernet devices. Uses can easily simplify the cabling and save installation space with the feature.

ET-87Pn is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 °C ~ +75 °C).

To simplify installation and maintenance of I/O modules, it provides many useful features, such as: hot swap allowed, auto configuration, LED indicators for fault detection, dual watchdog to keep alive, programmable power on and safe values for safety.

The unit supports more than 30 I/O modules including analog input/output, digital input/output, counter, frequency I/O modules. We provide various software development kits (SDK) and demos, such as DLL, ActiveX, Labview driver, InduSoft driver, Linux driver, OPC server, etc. The I-87K series I/O modules plugged in the ET-87Pn can be easily integrated into variant software system.



APPLICATIONS:

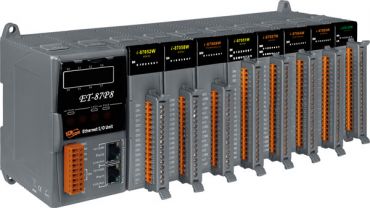

https://fieldworks.nl/media/imageproducts/icpdas/et-87p.jpg

Meer informatie
Art.nr.
ET-87P4
Fabrikant
ICPDAS
Interface
Port
RJ45 (2x)
10/100Base-TX
(Auto-negotiating, Auto MDI/MDI-X, LED indicators)
Cable Daisy-Chain Ethernet Cable
Isolation 3000V DC
ESD Protection ±4K Contact Discharge and ±8K Air Discharge
Communication Protocol DCON Protocol (ASCII format)
LED Indicators
Power Yes
System Ready Yes
Auto Configuration Yes
Slot Status Yes
IP Address Yes (with push buttons to configure)
I/O Expansion Slots
I/O Module Hot Swap Yes
Auto Configuration Yes
Support Module Type High profile I-87K module only
Slots 4
Mechanical
Dimensions (w x h x d) 188 x 132 x 111mm
Omgeving
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +75 °C
Humidity 5 ~ 95%, Non-condensing
Power
Input Range 10 ~ 30V DC (non-regulated)
Redundant Input Yes
Reverse Polarity Protection Yes
Isolation 1000V DC
Frame Ground Yes
Power Consumption 2W
Power Board Driving 30W
