ICPDAS ET-7044

Levertijd:
2~7 dagen
SKU
ET-7044

8-channel DI and 8-channel DO with 32-bit Counters Module

● Regular Ethernet Options
● Built-In Web Server
● Web HMI
● Modbus/TCP, Modbus/UDP Protocol
● Communication Security
● Dual Watchdog
● Operating Temperature: -25 °C ~ +75 °C
● I/O Pair Connection
● Built-In I/O (DI/Counter: 8 Channels, DO: 8 Channels)

The ET-7000/PET-7000, a web-based Ethernet I/O module, features a built-in web server which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Remote control is as easy as surfing the Internet.


Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.

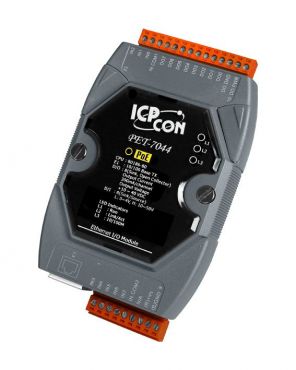

Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.

The ET-7044, a web-based Ethernet I/O module, features a built-in web server, which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Besides, with the web HMI function, no more programming or HTML skills are needed; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after.

The ET-7044 offers easily and safely access for users from anytime and anywhere! In addition, the ET-7044 also supports Modbus/TCP protocol that makes perfect integration for ET-7044 to SCADA software.

The ET-7044 provides 8 isolated open collector (sink type) output and 8 isolated wet contact (Sink, Source type) digital input channels. Each output channel supports 300mA currnet driving @10~40Vdc and each digital input channel supports counter input (32 bits and 500Hz max.).



APPLICATIONS:

● Building Automation
● Factory Automation
● Machine Automation
● Remote Maintenance
● Remote Diagnosis
● Testing Equipment

Meer informatie
Art.nr.
ET-7044
Fabrikant
ICPDAS
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 10/100 Base-TX with Auto MDI/MDI-X
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 second), Communication (Programmable)
Digital Input/Counter
Input Channels 8
Type Wet Contact (Sink, Source)
On Voltage Level +10 VDC ~ +50 VDC
Off Voltage Level +4 VDC max.
Input Impedance 10 kΩ
Counters
Max. Count 4,294,967,285 (32 bits)
Max. Input
Frequency
500 Hz
Min. Pulse Width 1 ms
Overvoltage Protection +70 VDC
Digital Output
Output Channels 8
Type Isolated Open Collector (Sink)
Max. Load Current
300 mA/channel at 25 °C
Direct drive power relay module
Load Voltage +10 VDC ~ +40 VDC
Overvoltage Protection 60 VDC
Overload Protection 1.1 A
Short-circuit Protection Yes
Power On Value Yes, Programmable
Safe Value Yes, Programmable
2-Way Isolation
Ethernet 1500 VDC
I/O 3750 Vrms
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for each terminal
EFT (IEC 61000-4-4) ±2 kV for Power
LED Indicators
LED 1 System Running
LED 2 Ethernet Link/Act
LED 3 Ethernet 10/100 M Speed
Power
Reverse Polarity Protection Yes
Powered from Terminal Block Yes, 10 ~ 30 VDC
Powered from PoE -
Consumption 2.4 W
Mechanical
Dimensions (w x l x d) 72 x 123 x 35mm
Installation DIN-Rail or Wall Mounting
Omgeving
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -30 °C ~ +80 °C
Humidity 10 ~ 90% RH, non-condensing
