ICPDAS ET-7042
Levertijd:
2~7 dagen
SKU
ET-7042
16-channel Isolated Sink Type Open Collector Digital Output Module
● Regular Ethernet Options
● Built-In Web Server
● Web HMI
● Modbus/TCP, Modbus/UDP Protocol
● Communication Security
● Dual Watchdog
● Operating Temperature: -25 °C ~ +75 °C
● I/O Pair Connection
● Built-In I/O (DO: 16 Channels)
The ET-7000 series is a family of Internet/Ethernet data acquisition and control modules that support Modbus/TCP protocols and it is an Ethernet remote I/O module with the built-in web server that used for all configuration and I/O data monitoring and controlling using a regular web browser.
Besides, with the web HMI function, no more programming or HTML skills are required; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after. The ET-7000/PET-7000 offers easy and safe access for users from anytime and anywhere! In addition, the ET-7000/PET-7000 also supports Modbus/TCP protocol that makes perfect integration to SCADA software.

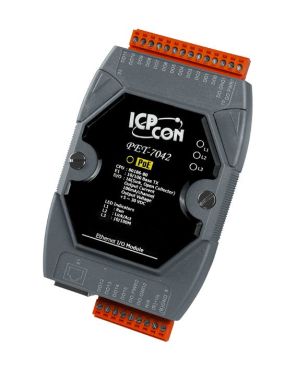

Furthermore, PET-7000 features "PoE" that not only data but also power is carried through an Ethernet cable. This feature makes installation of PET-7000 a piece of cake. Imagine that no more unnecessary wires, only an Ethernet cable takes care of everything in the field.
The ET-7042, a web-based Ethernet I/O module, features a built-in web server, which allows configuration, I/O monitoring and I/O control by simply using a regular web browser. Besides, with the web HMI function, no more programming or HTML skills are needed; creating dynamic and attractive web pages for I/O monitoring and I/O control would be fun to engineers ever after.
The ET-7042 offers easily and safely access for users from anytime and anywhere! In addition, the ET-7042 also supports Modbus/TCP protocol that makes perfect integration for ET-7042 to SCADA software.
The ET-7042 provides 16 isolated open collector (sink type) output channels. Each output channel supports 100mA currnet driving @5~30V DC.
APPLICATIONS:
● Building Automation
● Factory Automation
● Machine Automation
● Remote Maintenance
● Remote Diagnosis
● Testing Equipment
Meer informatie
Art.nr.
ET-7042
Fabrikant
ICPDAS
Software
| Built-In Web Server | Yes |
| Web HMI | Yes |
| I/O Pair Connection | Yes |
Communication
| Ethernet Port | 10/100 Base-TX with Auto MDI/MDI-X |
| Protocol | Modbus/TCP, Modbus/UDP |
| Security | ID, Password and IP Filter |
| Dual Watchdog | Yes, Module (0.8 second), Communication (Programmable) |
Digital Output
| Output Channels | 16 | ||
| Type | Isolated Open Collector (Sink) | ||
| Max. Load Current |
|
||
| Load Voltage | +5 VDC ~ +30 VDC | ||
| Overvoltage Protection | - | ||
| Overload Protection | - | ||
| Short-circuit Protection | - | ||
| Power On Value | Yes, Programmable | ||
| Safe Value | Yes, Programmable |
2-Way Isolation
| Ethernet | 1500 VDC |
| I/O | 3750 Vrms |
EMS Protection
| ESD (IEC 61000-4-2) | 4 kV Contact for each terminal |
| EFT (IEC 61000-4-4) | ±2 kV for Power |
LED Indicators
| LED 1 | System Running |
| LED 2 | Ethernet Link/Act |
| LED 3 | Ethernet 10/100 M Speed |
Power
| Reverse Polarity Protection | Yes |
| Powered from Terminal Block | Yes, 10 ~ 30 VDC |
| Powered from PoE | - |
| Consumption | 2.7 W |
Mechanical
| Dimensions (w x l x d) | 72 x 123 x 35mm |
| Installation | DIN-Rail or Wall Mounting |
Omgeving
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +80 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
