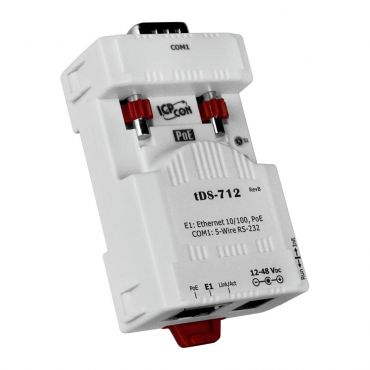

ICPDAS - Device Server with one RS-232 port - DS-712

Uit voorraad leverbaar

Device Server with 1 RS-232 port


● Incorporate Serial Devices in an Ethernet network
● "Virtual COM" Extend COM Ports
● Virtual COM on Windows
● High Performance Device Server
● Watchdog Timer suitable for use in harsh environments
● Power Reverse Polarity Protection
● Serial Port ±4 kV ESD Protection Circuit
● RoHS Compliant with no Halogen
● Built-in High Performance MiniOS7 from ICP DAS
● 10/100 Base-TX Ethernet, RJ-45 Port
(Auto-negotiating, auto MDI/MDI-X, LED indicator)


The DS-700 is a series of Serial-to-Ethernet Device Servers that are designed for linking RS-232/422/485 devices to an Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the DS-700 series can be virtualized to a standard PC COM port in Windows. By virtue of its protocol independence, a small size and flexibility, the DS-700 series meets the demands of virtually any network-enabled application.

The DS-712 is equipped with a male DB-9 connector and supports a 5-wire RS-232 port, while the DS-715 is equipped with a removable terminal block connector and supports a 4-wire RS-422 port or a 2-wire RS-485 port with 2000Vrms isolation.

The DS-700 is a non-programmable device server, while the PPDS-700-MTCP is a programmable product. The PPDS-700-MTCP series features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE. The PPDS-700-MTCP also works as a Modbus TCP to RTU/ASCII gateway that supports most SCADA/HMI communications based on the Modbus/TCP protocol.


● Factory Automation
● Building Automation
● Home Automation

Meer informatie
CPU 80186-80 MHz or compatible
Flash Memory Flash ROM: 512 KB
EEPROM 16 KB; Data return: 40 years
Built-in Watchdog Timer Yes
Communication Interface
Non-isolated COM1 RS-232 (TxD, RxD, RTS, CTS, GND)
Ethernet 10/100 Base-TX, RJ-45 port
(Auto-negotiating, auto MDI/MDI-X, LED indicator)
PoE -
COM Port Formats
Data Bit 7, 8: for COM1
Parity None, Even, Odd, Mark, Space
Stop Bit 1: for COM1
Baud Rate 115200 bps Max.
Protection Power Reverse Polarity Protection
Required Supply Voltage +12 VDC ~ +48 VDC (non-regulated)
Power Consumption 2.0 W
LED Indicators
L1 Run (Red)
L2 Link/Act (Red)
L3 10/100M (Orange)
PoE -
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimensions (w x h x d) 72 x 118 x 35mm
Installation DIN-Rail or Wall Mounting
Operating Temperature -25 °C ~ +75 °C
Storage Temperature -40 °C ~ +80 °C
Humidity 5 ~ 90% RH, non-condensing
