Graphtec GL840 - Standalone Multi-Channel Datalogger

Levertijd:
3~4 weken
SKU
GL840

Isolated/Universal input, Standalone Multi-Channel Datalogger

● 20 analog input channels, expandable to 200
   ● Programmable per channel
   ● ±20 mV to ±100 V over 12 ranges
   ● Supports direct-connected thermocouples of any type
   ● Supports direct-connected PT100/PT1000 RTDs
   ● Full isolation per channel (60V; see 300V version)
● 4 discrete input channels
   ● Programmable as a group as logic or pulse inputs
   ● Pulse inputs support counter or frequency inputs
● 4 discrete alarm outputs
● Optional WiFi wireless operation
● Flexible triggering
● Built-in, 7-inch display
● Built-in Web server operation for remote operations
● Removable SD memory support up to 32 GB capacity - one (1) 4GB memory card included
● Operates either stand-alone or PC-connected
● PC-side software included



Graphtec midi Logger GL840 Series

Isolated / Universal Input, Standalone Multi-Channel Datalogger

Graphtec midi logger GL840
Graphtec GL840 universal inputs

The Graphtec GL840 data logger is a standalone multichannel data logger with isolated universal input. In addition to accommodating numerous measurements, the GL840 includes many communications options and advanced functions making it an incredibly versatile data acquisition instrument for a wide array of applications.

The GL840 has 20 analog input channels, isolated so that wiring errors or overloaded channels do not affect neighboring channels. The system is easily expandable to up to 200 channels by adding the optional B-566 terminal base unit and input terminal units (B-564 or B-565). Input terminal blocks can be connected directly via daisy chain or by using cable. This allows the input terminals to be placed in separate =locations depending upon the requirements of the application.

The GL840 has two SD card slots which support up to 32GB of memory which can hold over a year's worth of data depending upon the sampling rate. A full color, 7-inch TFT display allows user to view data in waveform or digital form while also displaying parameter settings.

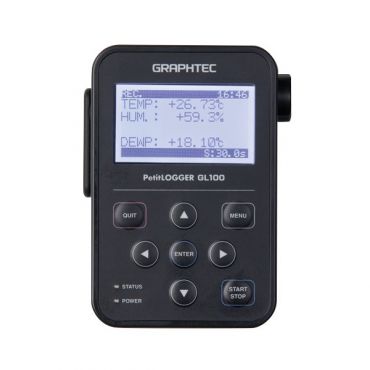

The Graphtec GL840 includes a number of communications features which allows integration with other devices and easy file sharing. A wireless LAN module (B-568) can be added to connect the GL840 with Graphtec GL100-WL modules. This expands the measurement variety of the GL840 by utilizing sensors available to the GL100-WL which will relay data directly to the GL840. The GL840 can also be connected to a LAN via a WLAN access point. Measured data can then be monitored via a PC or smart device using the application software. Configuration can also be set via the network.

Meer informatie
Art.nr.
GL840
Fabrikant
Graphtec
Land van herkomst
Japan
